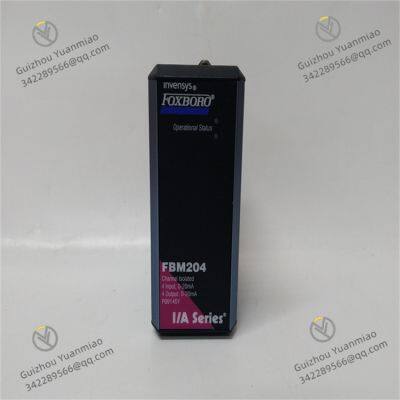

Foxboro FBM204 P0914SY I/O Module

Fault Phenomenon: After powering on the module, the power indicator remains off, and the module shows no signs of operation.

Possible Causes: Power not connected or wiring error; power voltage exceeds the allowable range; power circuit fuse blown or power module failure.

Solutions: Check power wiring, confirm the positive and negative poles of the 24VDC power supply, and use a multimeter to measure whether the power voltage is normal; replace the power circuit fuse, and if ineffective, replace the power module or check the control cabinet power supply system.

Fault Phenomenon: The communication indicator is abnormal (always off or on), and the module cannot communicate normally with the controller.

Possible Causes: Fieldbus cable disconnected, short-circuited, or poorly connected; bus impedance mismatch; incorrect module address setting or address conflict with other modules; communication interface failure on the controller side.

Solutions: Check bus cable connections, re-plug or replace the cable, ensure correct bus topology, and install a suitable terminating resistor at the end; use a multimeter to measure bus impedance, confirm normal resistance, and check in the configuration software whether the module address matches the actual installation location; restart the module or controller, and if ineffective, replace the controller communication card.

Fault Phenomenon: An input signal exists in a certain input channel, but the module displays zero, out-of-range, or large fluctuations.

Possible Causes: Loose, short-circuited, or open field signal wiring; incorrect signal type configuration; hardware failure in the module channel; signal distortion due to electromagnetic interference.

Solutions: Check terminal block wiring, use a multimeter to measure field signals, and re-tighten the wiring; confirm correct setting of channel parameters in the configuration software; test with a spare module of the same type, and if the fault transfers, the original module channel is damaged and needs repair or replacement; add a shielding layer to the signal cable and ground it reliably, keeping it away from interference sources.

Fault Phenomenon: The output channel cannot output signals normally, or the output signals are unstable and inaccurate.

Possible Causes: Incorrect or loose output wiring; hardware failure in the module output channel; incorrect output parameter settings in the configuration software; external load failure.

Solutions: Check output wiring to ensure correct and secure connections; use a multimeter to measure output signals, and replace the spare module if the signals are abnormal; check output parameter settings (such as range, output type, etc.) in the configuration software for correctness; inspect external load devices (such as control valves, frequency converters, etc.) for normal operation and eliminate load faults.

Fault Phenomenon: The surface temperature of the module is too high, exceeding the normal operating temperature range.

Possible Causes: Poor ventilation in the installation environment with insufficient heat dissipation space; excessive temperature in the control cabinet; internal component short circuit in the module, leading to abnormal power consumption.

Solutions: Ensure sufficient heat dissipation space around the module, install it according to specifications, and avoid stacked installation; check the control cabinet ventilation system, install cooling fans or air conditioners, and maintain the internal temperature within an appropriate range; after powering off, touch the module surface—if a certain area is abnormally hot, it may be an internal short circuit, requiring module replacement.
