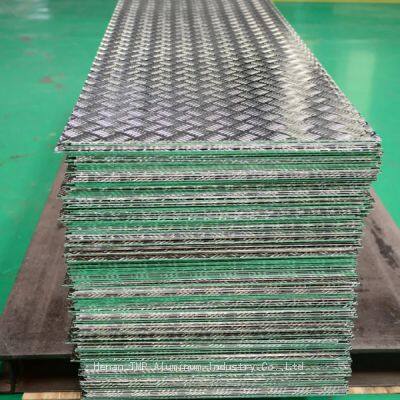

5754 AL-MG3 H114 5-Bar Marine-Grade Aluminum Tread Plate - Heavy-Duty Anti-Slip Flooring for Offshore & Industrial Use

5754 AL-MG3 H114 5-Bar Aluminum Tread Plate is a premium marine-grade aluminum alloy sheet featuring a 5-bar embossed pattern for superior anti-slip performance. With 2.6–3.6% magnesium (Mg) content, it offers exceptional corrosion resistance (especially in seawater), medium strength, and excellent weldability, making it ideal for marine, industrial, and architectural applications.

• Material: 5754 aluminum alloy (Al-Mg system, enhanced seawater resistance).

• Surface: 5-bar embossed pattern (height: 0.8–2.0mm) for superior slip resistance.

• Temper: H114 (partially work-hardened, optimal for flooring and structural use).

• Certifications: ISO 9001, ASTM B209, EN 485, DNV/GL (marine compliance).

• Mill Finish: Standard untreated surface (Ra 1.0–3.5μm roughness).

• Anodized: Enhanced corrosion resistance + color options (10–25μm thickness).

• PE/PVDF Coated: UV/chemical-resistant for outdoor/marine use (30–60μm).

• Polished: Decorative finish for architectural cladding (Ra ≤0.8μm).

1. Hot Rolling: 450–550°C for initial forming (>6mm thickness).

2. Cold Rolling: Precision thickness control (0.4–6mm).

3. Embossing: 100–200 tons pressure for 5-bar pattern.

4. Stabilization: Heat treatment at 150–200°C (H114 temper).

• Marine: Ship decks, offshore walkways (saltwater-resistant).

• Industrial: Chemical plant flooring, walkways (H114 for durability).

• Architectural: Facades, wall cladding (PE-coated for aesthetics).
