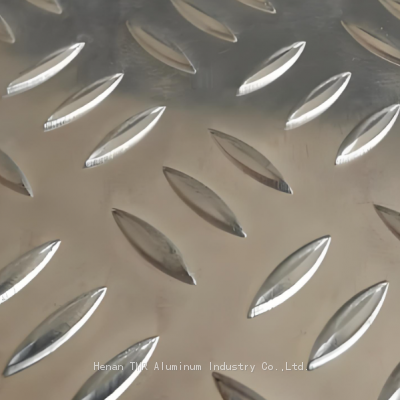

3-Bar Aluminum Tread Checker Plate - Marine-Grade & Industrial Anti-Slip Flooring

3-Bar Aluminum Tread Checker Plate is a lightweight, corrosion-resistant aluminum sheet featuring a 3-bar embossed pattern for superior anti-slip performance. Ideal for marine, industrial, and architectural applications, it combines durability with aesthetic appeal, making it suitable for high-traffic areas and harsh environments.

• Material: Available in alloys like 1050, 1060, 3003, 5052, 5083, and 5754 (marine-grade options).

• Surface: 3-bar raised pattern (height: 0.5–1.5mm) for enhanced slip resistance.

• Temper: Common tempers include H14, H24, H32, and H114 (for marine/industrial use).

• Certifications: ISO 9001, ASTM B209, EN 485, EN 1386 (for marine compliance).

•

• Mill Finish: Standard untreated surface (economical for industrial use).

• Anodized: Improves corrosion resistance + color options (e.g., silver, black).

• PE/PVDF Coated: UV/chemical-resistant for outdoor/marine applications (25–50μm thickness).

• Polished: Decorative finish for architectural cladding (Ra ≤0.8μm).

•

1. Hot/Cold Rolling: For thickness precision (0.4–8mm).

2. Embossing: 3-bar pattern pressed under 80–150 tons.

3. Cutting: Custom widths (10–2300mm) via waterjet/laser.

4. Coating: Optional PE/PVDF for marine/outdoor use.

• Marine: Ship decks, offshore walkways (5083/5052 alloys).

• Industrial: Walkways, ramps (H24 temper for durability).

• Architectural: Wall cladding, facades (polished/anodized).
