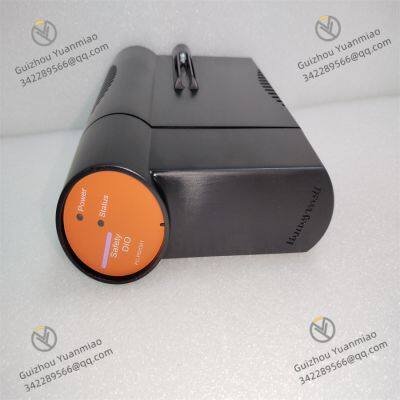

Honeywell FC-PDIO01 Safety Digital IO Module

Supports multi-channel digital signal input and output, connecting devices such as switches, buttons, and relays to enable logical control and status monitoring.

Input channels accept standard TTL/CMOS level signals, while output channels support relay or transistor driving to adapt to different load requirements.

Adopts isolation technology to resist electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring stable operation in complex industrial environments.

Wide operating temperature range (-40°C to 70°C) adapts to harsh conditions (e.g., high temperature, vibration scenarios).

Supports mainstream industrial communication protocols (e.g., Modbus, EtherNet/IP) for seamless integration with PLC and DCS systems.

Customizes parameters like input/output logic and filtering time via dedicated software (e.g., Honeywell Experion).

Real-time self-diagnosis monitors channel faults, power anomalies, etc., with intuitive status display via LED indicators.

Output channels feature overload and short-circuit protection to prevent module damage from external failures.

Control of production line equipment start/stop, sensor status monitoring (e.g., limit switches, photoelectric sensors), and robotic arm logical interaction.

Substation switch status monitoring, motor start/stop control, and signal collection/output for power distribution cabinets.

Control of access, lighting, and air conditioning equipment in building management systems (BMS), and fire signal linkage.

Valve switch control for chemical reactors, process logic management for food processing equipment, and status monitoring of pharmaceutical equipment.

Pump start/stop control for wastewater treatment plants, and signal collection/feedback from water quality monitoring instruments.

Possible Causes: Input cable open circuit, abnormal power voltage, damaged input channel.

Solutions: Use a multimeter to check if input voltage is 24VDC, replace cables or test other input channels, and contact maintenance if channels are damaged.

Possible Causes: Output load overload, oxidized relay contacts, incorrect output parameter settings.

Solutions: Check if load current exceeds the rated value, manually test relay contact continuity (relay type), and reconfigure output logic.

Possible Causes: IP address conflict, poor communication cable contact, incorrect protocol configuration.

Solutions: Confirm module IP compatibility with the system, replace network cables or check RJ45 connectors, and reconfigure Modbus/EtherNet/IP parameters.

Possible Causes: Poor ventilation in the installation environment, operating temperature exceeding the range.

Solutions: Ensure good heat dissipation at the installation location, avoid operating the module above 70°C, and add cooling fans if necessary.

Strong Compatibility: Compatible with Honeywell's full range of automation systems (e.g., Experion, PlantScape) and third-party PLCs.

Convenient Maintenance: Supports hot-swapping (some models), allowing module replacement without power-off to reduce downtime.

High Cost-Effectiveness: High integration and channel density, suitable for large-scale digital control scenarios.
