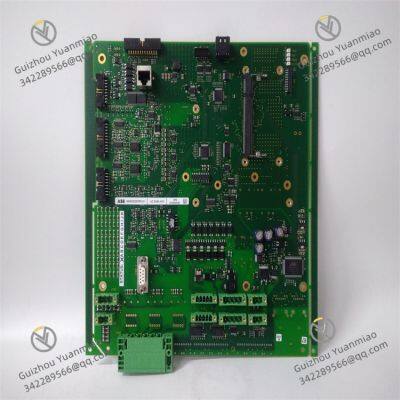

ABB UCD240A101 3BHE022287R0101 Communication Controller Board

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Phase	Other, Global universal model	Brand	ABB
Cooling Method	Other, Global universal model	Frequency Characteristics	Other, Global universal model
Winding Type	Other, Global universal model	Shape of Core	Other, Global universal model
Core	Other, Global universal model	Dimensions	14cm×12cm×7cm
Operating temperature	-40℃~+80℃

Product Description

ABB UCD240A101 3BHE022287R0101Functional FeaturesHigh-performance Control and Real-time Processing

Multi-channel Synchronous Control
Supports real-time acquisition and output of high-density analog and digital signals (e.g., 32-channel analog input/output), suitable for multi-parameter collaborative control scenarios (e.g., complex motion control, real-time adjustment of process variables).
High-speed Communication Network
Integrates industrial-grade Ethernet protocols (EtherCAT, Profinet) and traditional buses (Modbus, CANopen), serving as a core expansion module for PLC/DCS systems to achieve sub-millisecond data interaction.
Enhanced Edge Computing
Built-in data filtering, non-linear correction, and predictive diagnosis algorithms support local data preprocessing, reducing main controller load and improving system response speed.

High Reliability and Environmental Adaptability

Anti-interference Design
Complies with industrial-grade EMC standards (e.g., IEC 61000-6-2), supports wide-temperature (-40℃~+80℃) and wide-voltage (DC 24V±20%) operation, suitable for harsh working conditions in metallurgy, petroleum, etc.
Fault Self-diagnosis Mechanism
Integrates hardware watchdog, triple data verification (CRC + parity check + thermal redundancy), and fault trace logs, supporting real-time monitoring and early warning of remote IO links.

Modularity and Flexible Expansion

Flexible I/O Configuration
Compatible with ABB AC500-ECO/P800 series PLCs, supports hot-swappable analog (AI/AO, e.g., ±20mA, RTD/TC) and digital (DI/DO, DC 24V/relay) module expansion, adapting to mixed signal access.
Plug-and-Play Configuration
Supports one-click configuration via ABB Engineering Tool software, compatible with third-party programming tools (e.g., Codesys), shortening production line debugging time.

Technical Specifications

Parameter Category	Specification Details
Communication Interfaces	3× Ethernet ports (10/100/1000Mbps, supporting EtherCAT/Profinet), 3× RS485, 2× CANopen
Protocol Support	Modbus RTU/TCP, CANopen, EtherCAT, Profinet, OPC UA, ABB Ability? communication protocol
I/O Channels	32 analog inputs (AI) + 24 analog outputs (AO) + 48 digital inputs (DI) + 32 digital outputs (DO)
Signal Range	Analog: ±20mA, 0-10V, thermistors (PT100/PT1000), thermocouples (J/K/T/S types); Digital: DC 24V/AC 220V
Storage and Processing	1GB RAM + 2GB Flash, built-in ARM Cortex-A55 processor, supporting floating-point operations and real-time operating systems (e.g., VxWorks)
Power Supply	DC 24V (±25%) or AC 100-240V, power consumption ≤25W
Mechanical Dimensions	Approximately 14cm×12cm×7cm (DIN rail mounting, supporting vertical/horizontal/inverted installation)
Environmental Adaptability	Operating temperature: -40℃~+80℃, protection class IP20, vibration resistance (5-500Hz, 10g), salt fog/dust protection

Application FieldsIndustrial Automation and Process Control

High-end Manufacturing
In automotive electric drive systems, connects to multi-axis servo motors via EtherCAT, real-time collects torque sensor data to achieve millimeter-level precision control; in pharmaceutical equipment, synchronously processes analog signals such as pressure and flow, linkage DCS to automate cleanroom processes.
Process Control
Multi-parameter monitoring of chemical distillation columns (temperature, pressure, liquid level), interacts with SCADA systems via Modbus, supports adaptive PID control and safety interlocks.

Energy and Smart Grid

New Energy Control
In energy storage converter (PCS) cluster control systems, collects voltage, current, and temperature data of each battery cluster, uploads to BMS via Profinet to optimize charging/discharging strategies and energy scheduling.
Power Monitoring
Collects status quantities of high-voltage equipment in substations (e.g., partial discharge, oil temperature), accesses IEC 61850 systems via Ethernet, supports fault early warning and condition assessment.

Discrete Manufacturing and Special Scenarios

Logistics Automation
Data fusion of multi-sensors in intelligent sorting lines (photoelectric sensors, encoders, RFID), communicates with master PLC via CANopen to achieve high-speed sorting and path optimization.
Special Equipment
Real-time monitoring of hydraulic system pressure and displacement in construction machinery (e.g., roadheaders), preprocesses data via edge computing modules, linkage cloud to realize equipment health management.

Differentiated Advantages over Similar Products

Ultra-high-density I/O Integration
50% increase in I/O channel count under the same size, reducing control cabinet space occupation by 40%, adapting to compact equipment and distributed control solutions.
Edge-Cloud Collaboration Capability
Built-in ABB Ability? edge computing platform supports local data encryption and seamless docking with cloud APIs, enabling predictive maintenance in industrial internet scenarios.
Extreme Environmental Adaptability
-40℃ low-temperature startup and 10g vibration resistance adapt to outdoor high-dynamic environments such as wind power, mining, and rail transit.
