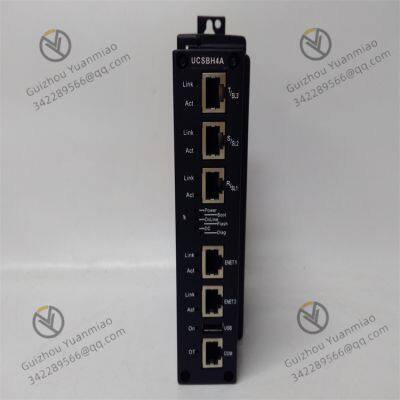

GE IS420UCSBH4A VME control board

Basic parameters

Processor: It adopts an Intel Celeron processor, which can process data quickly, meet the computing requirements in complex industrial control scenarios, and ensure the efficient operation of the system.

Memory: It is equipped with a certain capacity of random access memory (RAM) and flash memory for storing programs and data. Sufficient memory ensures the rapid reading and writing of data, enhancing the system response speed. Meanwhile, flash memory is used to store important configuration information and programs for a long time, ensuring they will not be lost even in the event of a power outage.

Communication interface: It has multiple communication interfaces, including Ethernet interface, serial port, etc. The Ethernet interface can achieve high-speed data transmission, facilitating network communication with other devices or systems, and realizing data sharing and remote monitoring. The serial port can be connected to some traditional devices or used for local debugging.

Power supply requirements: Support specific DC or AC power input, have good power supply adaptability, be able to operate stably within a certain voltage fluctuation range, and ensure normal operation in the complex power supply environment of industrial sites.

Functional characteristics

Data processing and control: As a control board, it can collect and process signals from various sensors in real time, such as temperature, pressure, rotational speed, etc. Through the built-in algorithms and logical programs, these data are analyzed and judged, and then control instructions are output to adjust the operating status of related equipment, achieving precise control of the industrial production process.

System integration: It can closely cooperate with other modules in the Mark VIe control system to achieve integrated control of the system. For example, it works in coordination with the input/output (I/O) module to receive signal input from field devices and send control signals to the actuator; Collaborate with the communication module to achieve data interaction with the upper computer or other control systems.

Fault diagnosis and Protection: It is equipped with a fault diagnosis function and can monitor the operating status of itself and the system in real time. When abnormal situations are detected, such as hardware failures or data anomalies, alarm signals can be issued promptly and corresponding protective measures can be taken, such as automatic shutdown or switching to backup equipment, to prevent equipment damage and production accidents.

Redundancy function: Supports redundant configuration to enhance the reliability of the system. In a redundant system, when one control board malfunctions, another backup control board can automatically take over the work, ensuring the continuous operation of the system and reducing downtime and production losses.

Application scenarios

Electric power generation: In gas turbine power plants and steam turbine power plants, IS420UCSBH4A is used to monitor and control the operating status of the generating units. Real-time collection of parameters such as the rotational speed, power and temperature of the generator is carried out. Based on these data, the intake air volume, fuel supply, etc. are adjusted to ensure the stable and efficient power generation of the generator set, while also guaranteeing the stable operation of the power grid.

Petrochemical industry: In the production process of petrochemicals, it is used to control various key equipment, such as compressors, pumps, etc. By precisely controlling the operating parameters of the equipment, the continuity and stability of the production process can be ensured, product quality and production efficiency can be improved, and at the same time, production safety can be guaranteed to prevent safety accidents caused by equipment failures.

Industrial automated production line: In various types of industrial automated production lines, it serves as the core control unit, coordinating the operation of various equipment to achieve automated control of the production process. For instance, in automotive manufacturing production lines, electronic assembly production lines, etc., it is necessary to ensure the precise execution of the production process, enhance the consistency of production and product quality.
