Home > Products > ABB > ABB CSA463AE HIEE400103R0001 Circuit Board Module

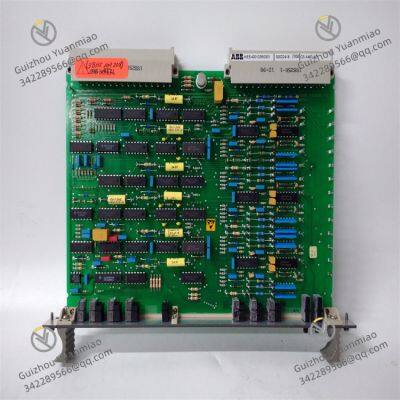

ABB CSA463AE HIEE400103R0001 Circuit Board Module

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 5 Piece / Pieces per Month
Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Input Voltage	24VDC
Dimensions	115mm×60mm×25mm	Weight	0.2kg

Product Description

The ABB CSA463AE HIEE400103R0001 is a circuit board module for industrial control systems. The relevant information is as follows:

Functions and Applications

It is a monitoring module mainly used in the ABB Procontrol P14 control system to monitor various analog signals in turbine control systems, such as temperature, pressure, vibration, and flow parameters. This is crucial for ensuring the optimal performance of turbines.

Technical Parameters

Input Voltage: 24VDC.
Output Voltages: 5VDC, 12VDC, and 24VDC, meeting different power requirements within the drive system.
Output Current: 2A, providing sufficient power for stable operation.
Operating Temperature: -20°C to 70°C, suitable for various industrial environments.
Storage Temperature: -40°C to 85°C, ensuring good durability during storage and transportation.
Dimensions: 115mm×60mm×25mm, facilitating compact integration into ABB drive systems.
Weight: 0.2kg, lightweight for easy handling and installation.

Monitoring Principle of ABB CSA463AE HIEE400103R00011. Data Acquisition

Through electrical connections with the monitored equipment or system, physical quantity signals such as voltage, current, temperature, pressure, and vibration are obtained using sensors or signal interfaces. These signals can be analog or digital. For example:

Temperature signals are collected via thermocouples or thermal resistors.
Pressure signals are acquired through pressure sensors.
Current signals are detected by current transformers.

2. Signal Conversion and Processing

The collected raw signals may need conversion and processing for module analysis and judgment:

Analog signals are converted to digital signals via an Analog-to-Digital Converter (ADC).
Signals are amplified and filtered to improve quality and stability, removing noise and interference.
Processed signals are analyzed and calculated using preset algorithms and models, such as computing amplitude, frequency, phase, or comparing with preset thresholds to determine the operating status of the monitored equipment/system.

3. Communication and Transmission

Collected and processed data are transmitted to a host computer or other control systems via a communication module using protocols like Modbus, Profibus, or EtherNet/IP. This allows operators to remotely monitor real-time operation data and status information in the control center, enabling timely detection of potential faults and prompt corrective actions.
