Home > Products > ABB > ABB GFD212A 3BHE020356R0101 Control Module

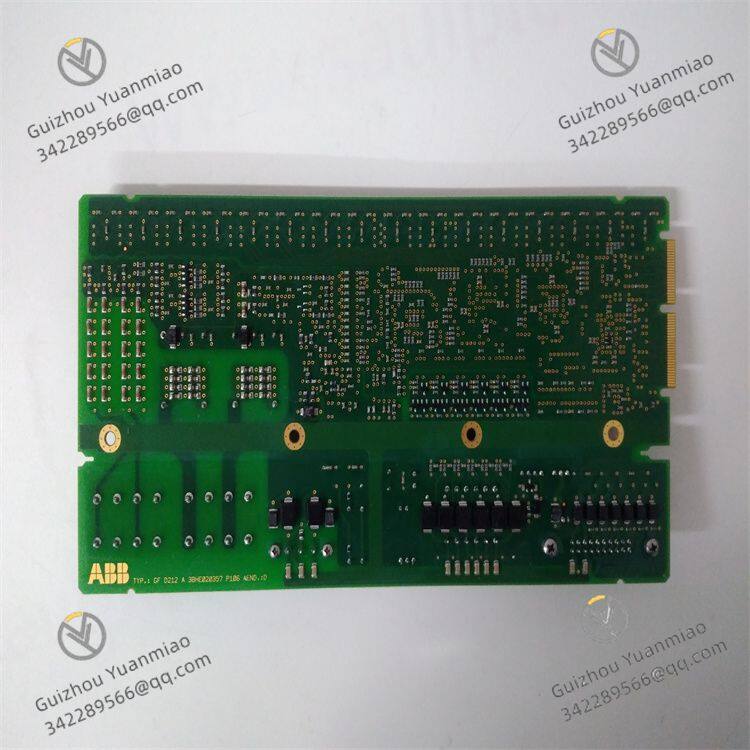

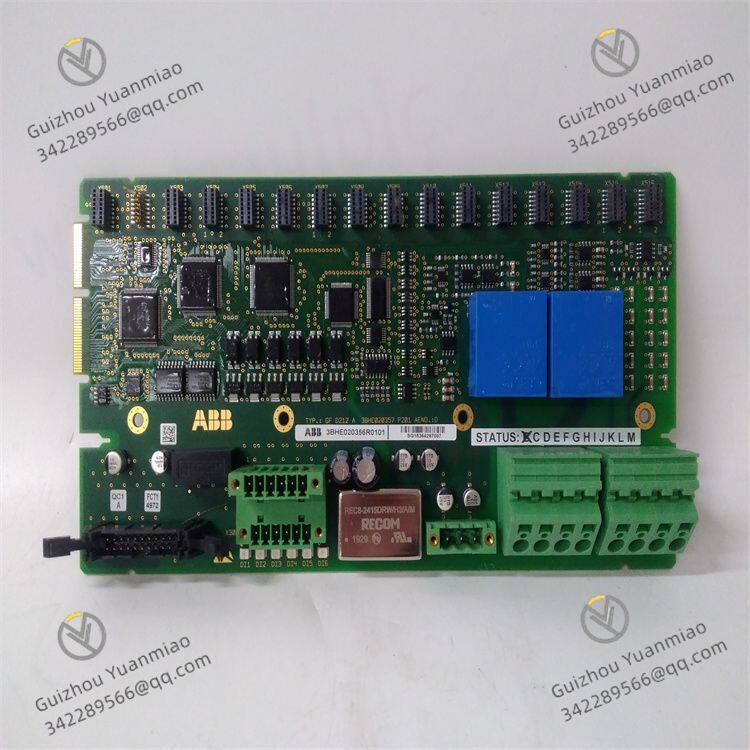

ABB GFD212A 3BHE020356R0101 Control Module

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T PayPal Western Union

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Other, Global universal model	Condition	Other, Global universal model
Task	Other, Global universal model	Mathematical Model	Other, Global universal model
Signal	Other, Global universal model	Customized	Non-Customized
Structure	Other, Global universal model	Weight	0.8kg
Dimensions	100mm×150mm×50mm	Operating temperature	-20°C to +60°C

Product Description

ABB GFD212A 3BHE020356R0101

The ABB GFD212A 3BHE020356R0101 belongs to ABB's industrial automation control modules or interface units. Referencing the logic of similar products, it may be applied in:

Medium/high-voltage frequency converter systems (such as ACS880 and ACS580 series) as signal processing or drive control modules;
Power electronic devices (such as converters and excitation controllers) to undertake data communication or system protection functions;
Large-scale transmission equipment (rolling mills, compressors, rail transit traction systems) for motor control or real-time monitoring.

I. Core Functions and Technical Characteristics1. Signal Processing and Control Capabilities

Multi-type Signal Adaptation:
Supports input/output of analog signals (4-20mA, 0-10V) and digital signals (switch signals), collects sensor data (current, voltage, temperature, etc.), and drives power devices such as IGBTs and contactors.
May integrate algorithms like vector control and Direct Torque Control (DTC) to adapt to asynchronous or permanent magnet synchronous motors, enabling precise adjustment of speed/torque.
System Protection and Diagnosis:
Equipped with hardware-level protection against overcurrent, overvoltage, overheating, and short circuits, outputting fault codes via LED indicators or communication interfaces.
Supports self-diagnosis functions (e.g., ADC/DAC accuracy detection, communication link status monitoring).

2. Hardware Architecture and Interface Design

Core Processing Unit:
May be equipped with high-performance DSP (Digital Signal Processor) or MCU to ensure high-speed operation of real-time control algorithms.
Input/Output Interfaces:

Analog Interfaces: Multiple AI (sensor data collection) and AO (control command output) channels.
Digital Interfaces: DI (switch inputs like start/stop commands), DO (relay or transistor outputs to drive solenoid valves, etc.).
Communication Interfaces: Supports Modbus RTU, EtherNet/IP, Profibus, CANopen, or ABB proprietary protocols (such as DriveCOM), possibly including RS-485 and Ethernet ports.

Power Characteristics:
Typically uses DC 24V input (±10%), with built-in auxiliary power supplies (5V, 12V); some models support wide voltage input.

3. Environmental Adaptability and Protection Standards

Operating temperature: -20°C to +60°C (industrial grade), storage temperature: -40°C to +85°C.
Protection class: IP20 (requires installation in control cabinets), compliant with EMC standards (e.g., EN 61800-3, EN 61000-6-2), with strong electromagnetic interference resistance.

II. Speculative Technical Parameters

Parameter Category	Typical Indicators (Speculative)
Model	GFD212A 3BHE020356R0101
I/O Channel Count	Analog: X AI / X AO; Digital: X DI / X DO
Communication Protocols	Modbus RTU, EtherNet/IP, Profibus, etc.
Mounting Method	35mm DIN rail mounting or panel mounting
Dimensions	Approximately 100mm×150mm×50mm (reference to similar products)
Weight	Approximately 0.8kg

III. Comparison with Series Products

Model	GFD212A	GFD213A	GFD212B
Core Differences	Basic control module	Increased AI channels	Supports redundant communication
I/O Configuration	4AI/2AO/8DI/6DO	8AI/2AO/12DI/8DO	4AI/2AO/8DI/6DO
Communication Interfaces	RS-485 + Ethernet	RS-485 + Ethernet + CAN	Dual Ethernet ports (ring network)
Typical Applications	Single-device control	Multi-sensor acquisition	High-reliability systems

IV. Application Fields

Industrial Drives: Drive control and speed regulation for rolling mills, extruders, fans/pumps.
Power Industry: Automation control for high-voltage frequency converters, excitation systems, and new energy grid-connected devices.
Rail Transit: Signal conditioning and protection for traction converters and auxiliary power supplies.
Petrochemical Industry: Real-time monitoring of reactor agitator motors and pump equipment.

V. Installation and Maintenance Key Points1. Installation Specifications

Install in control cabinets, away from heat-generating components, with module spacing ≥30mm and environmental humidity ≤90% (non-condensing).
Use shielded twisted-pair cables for analog signals (single-end grounding), and keep communication cables ≥10cm away from power cables to avoid electromagnetic interference.

2. Fault Troubleshooting

Power Failure: Check 24V input voltage and built-in fuse.
Communication Abnormality: Confirm cable connection, baud rate, and slave address configuration.
Signal Abnormality: Use a multimeter to test sensors or module I/O ports.
Temperature Alarm: Clean heat sink dust or add cooling fans.

VI. System Integration Compatibility

Docking with ABB Equipment:

Frequency converters: Medium/high-voltage series like ACS880 and ACS580, accessed as control boards.
PLCs: AC500 and PLCnext Control, achieving data interaction via communication protocols.
Monitoring systems: ABB Ability? System 800xA, supporting remote debugging and fault diagnosis.
