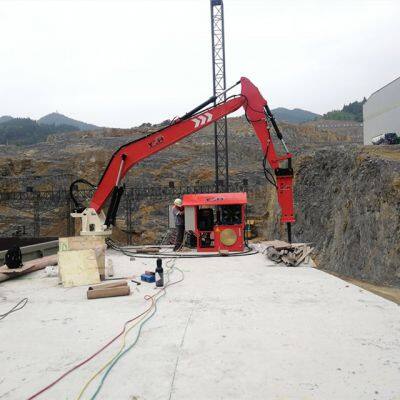

YZH Mining Stationary Rockbreaker Boom System

YZH Mining Stationary Rockbreaker Boom System

The YZH Mining Stationary Rockbreaker Boom System is a high-performance, highly stable solution designed for demanding industrial environments. Its excellent jam handling capability, wide adaptability, flexible and precise operation, and excellent safety performance make it an ideal choice for improving productivity, ensuring operational safety, and reducing operating costs.

Typical Application Scenarios:

This equipment is the key equipment in the field of mining and heavy industry, which is widely used in:

Mining: underground or open-pit mines (handling primary ore or secondary crushing

Quarry: all kinds of stone mining and processing

Sand & Aggregate Plant: processing of jammed materials at the inlet of the production line

Stone Plant: pre-processing of large stones

Foundry: processing of sintered lumps, slag, etc.

Cement Plant: processing of raw material lumps, clinker rings, etc.

Metallurgical Plant: processing of slag, cold materials, etc. Other: need to safely and efficiently crush large materials, etc. etc.

Others: Industrial applications requiring safe and efficient crushing of large and hard materials.

FEATURES:

1. Specifically designed for crusher applications specifically designed to solve the problem of jammed material at the crusher opening, break up large boulders, increase work volume and extend crusher life.2. Heavy duty base structure anchored to a reinforced steel foundation for long term stability even under sustained impact.3. High precision boom operation provides customizable boom lengths and ranges of motion to optimize access to the entire cavity area.4. Hydraulic slewing and articulation features 170° or 360° hydraulic rotation, allowing smooth side-to-side operation in the crusher's feed zone.5. Breaker compatibility is compatible with hydraulic crushers from 500 kg to 3000 kg, providing the flexibility to handle a wide range of hardnesses and sizes.6. Electro-hydraulic control of the joystick or remote control is safe, accurate, and user-friendly for breaking rocks from a distance.

Technical Parameters

Model number is WHC960, working arm weight without hammer 8481kg, max working radius 11920mm, max vertical working radius 9600mm, min vertical working radius 3360mm, max height 7200mm, max working depth 7815mm, swinging arm angle 360 degrees.

Purchase Notice:

Warranty period: 1 year

After sales service: During the warranty period, if there are quality issues, we will be available on call

Transportation methods: Various transportation methods are accepted

Packaging method: Suitable for various types of transportation
