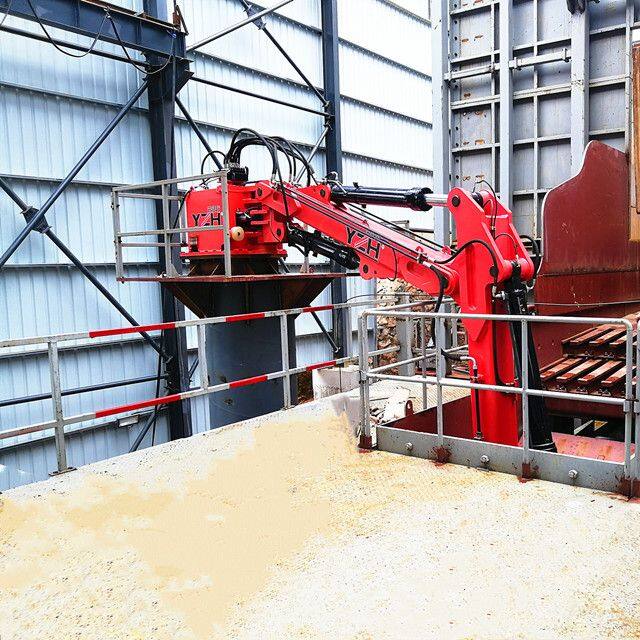

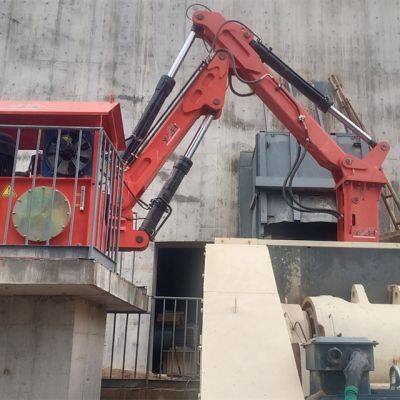

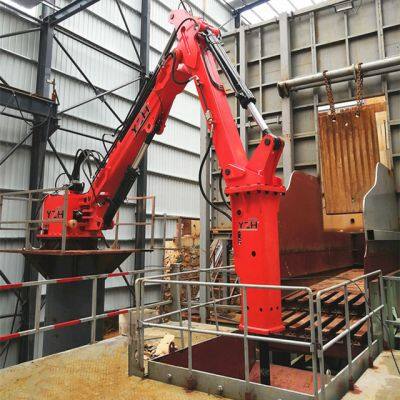

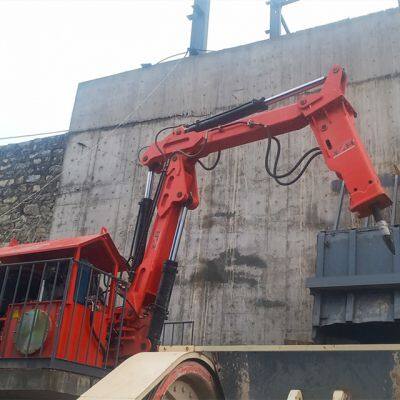

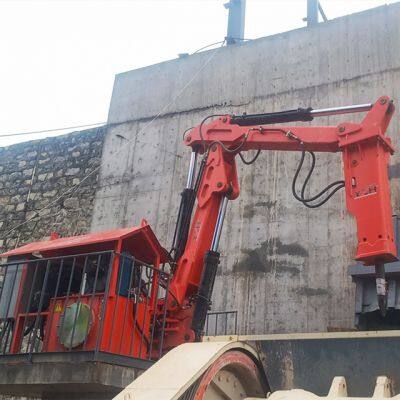

YZH Stationary Mechanical Boom Crushing System

YZH Stationary Mechanical Boom Crushing System

In the field of mining, secondary crushing operations have long faced three major problems: high-risk environment, inefficient operation and rising labor costs. The traditional crushing method has bottlenecks such as big safety risks, low precision and poor adaptability to the environment, YZH row with twenty years of mining machinery R & D accumulation, launched a new generation of stationary mechanical arm crushing system, to reshape the new paradigm of mining crushing with intelligent technology.

Core technology innovation matrix

1. Triple control revolution

Fully enclosed pressure-resistant cockpit: military-grade explosion-proof design, equipped with air filtration system and shock-absorbing seats, ensures safe operation in extreme environments from -30℃ to 50℃.

100-meter wireless remote control system: IP67 protection certification, supporting precise control in complex terrain.

5G fiber-optic dual-mode intelligent control: delay<10ms, supporting 20km remote operation, realizing “mine-command center” cross-region collaboration.

2. Super performance power combination

Customized crushing hammer head: molybdenum steel alloy impact head with hydraulic energy storage technology, crushing efficiency increased by 40%.

Intelligent hydraulic system: Equipped with pressure adaptive compensation module, energy consumption is reduced by 25%, and the continuous operation life reaches 8000 hours.

360° omni-directional robot arm: 7-axis linkage design, working radius of 12 meters, covering 95% of mining and rock processing scenarios.

Technical Parameters

Model number is BB500, working arm weight without hammer 3396kg, max working radius 7400mm, max vertical working radius5360mm, min vertical working radius 2220mm, max height 4300mm, max working depth 5100mm, swinging arm angle 360 degrees.

Purchase Notice:

Warranty period: 1 year

After sales service: During the warranty period, if there are quality issues, we will be available on call

Transportation methods: Various transportation methods are accepted

Packaging method: Suitable for various types of transportation
