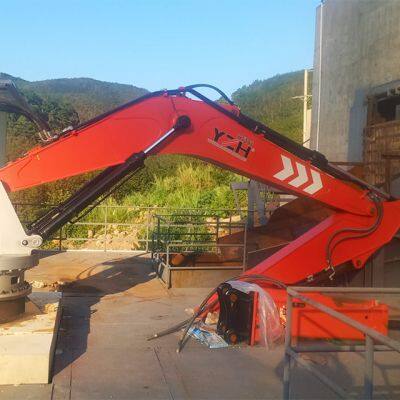

YZH Mining Stationary Rockbreaker Boom

YZH Mining Stationary Rockbreaker Boom

The equipment consists of:

The equipment is mainly composed of five core components:

1. Heavy-duty base: Provides solid support. 2.

2. High-strength working arm: Execute crushing action. 3.

3. Hydraulic Crushing Hammer: the core working part, performs the task of stone crushing. 4.

4. Hydraulic Power Station: Provides power for the whole system. 5.

5. Intelligent control system: realizes precise operation and safety control.

Core features and advantages:

1. Designed to solve crusher jamming:

Core Features: Specially designed to efficiently solve crusher inlet jamming problems.

Benefits: Quickly breaks up clogged large rocks, significantly improves crusher efficiency, reduces downtime, and extends crusher service life.

2. Ultra-strong stabilizing base:

   Structure: adopts heavy duty steel structure base.

   Installation: Firmly anchored on top of reinforced concrete foundation.

   Advantage: Even withstanding the continuous high-intensity impact of the crushing hammer, it can ensure the long-term stable operation of the equipment without the risk of displacement.

3. High-precision and wide-range operation boom:

Performance: Provide high-precision positioning and control capability.

   Customization: The length and working range of the boom can be flexibly customized according to the specific crushing chamber size.

   Advantage: Ensure that the crushing hammer can cover and optimize access to the entire crushing chamber area in all directions, eliminating dead corners.

4. Large angle hydraulic slewing with flexible articulation:

   Rotation capacity: 170° hydraulic rotation as standard (360° full rotation optional).

   Advantage: Smooth side-to-side swing operation of the crusher inlet area, dramatically expanding the effective working range and improving processing flexibility.

5. Wide range of hammer compatibility:

Compatible with 500kg to 3000kg hydraulic hammers.

   Advantage: Provide strong material adaptability, according to the rock hardness, block size and flexible selection of hammer head, efficient processing of various types of materials.

6. Intelligent electro-hydraulic control system:

   Operation mode: support joystick near control or wireless remote control operation.

   Technology: Adopt advanced proportional control technology.

   Advantage: Ensure safe, precise and user-friendly operation, the operator can comfortably and efficiently carry out crushing operation in a location far away from the dangerous area of falling rocks.

7. Comprehensively improve efficiency and safety:

   Reduced manpower and increased efficiency: Significantly reduces the need for manual intervention in clearing or reliance on small blasting.

   Safety: Significantly reduces the risk of injury to personnel from falling rock or jammed material handling.

   Continuous production: minimize crusher downtime due to jams and ensure continuous production.

Technical Parameters

Model number is WHC880, working arm weight without hammer 8270kg, max working radius11300mm, max vertical working radius8960mm, min vertical working radius 3060mm, max height 7390mm, max working depth7270mm, swinging arm angle 360 degrees.

Purchase Notice:

Warranty period: 1 year

After sales service: During the warranty period, if there are quality issues, we will be available on call

Transportation methods: Various transportation methods are accepted

Packaging method: Suitable for various types of transportation
