Home > Products > Silicone hoses for automobiles > 135 Degree Elbow Car Radiator Reducer Tube Rubber Silicone Hose

135 Degree Elbow Car Radiator Reducer Tube Rubber Silicone Hose

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Tianjin shanghai qingdao shenzhen
Payment TermsT/T
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Material	Organic Silicone	Certification	ISO, REACH
Application	Agricultural	Temperature	-50°c ~+200°c
Working Pressure	0.3 to 1.2 MPa	Bursting Pressure	2 to 3 MPa
Hardness	65~70 Shore a	Color	Custom Colors
Feature	High Temperature, High Pressure	Thickness	2mm ~ 6mm
Tube	100% High Quality Silicone	Reinforcement	Polyester or Aramid
Cover	Silicon	Transport Package	Plastic Bag Inside and Carton Outside.
Specification	6-150mm	Trademark	Biaohui
Origin	China

Product Description

Automotive silicone tubing

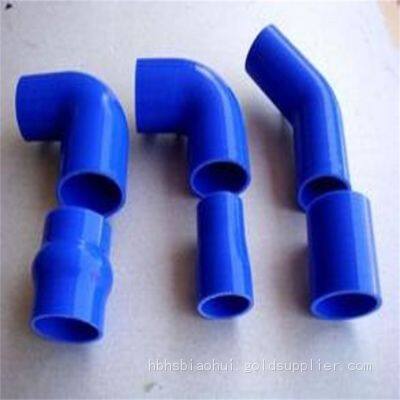

135 Degree Elbow Car Radiator Reducer Tube Rubber Silicone Hose

Construction:

Inner:100% High quality silicone Cover:silicone
Reinforcement:4ply Polyester/Aramid fabric
Color:Black/Red/Blue/Green/Yellow

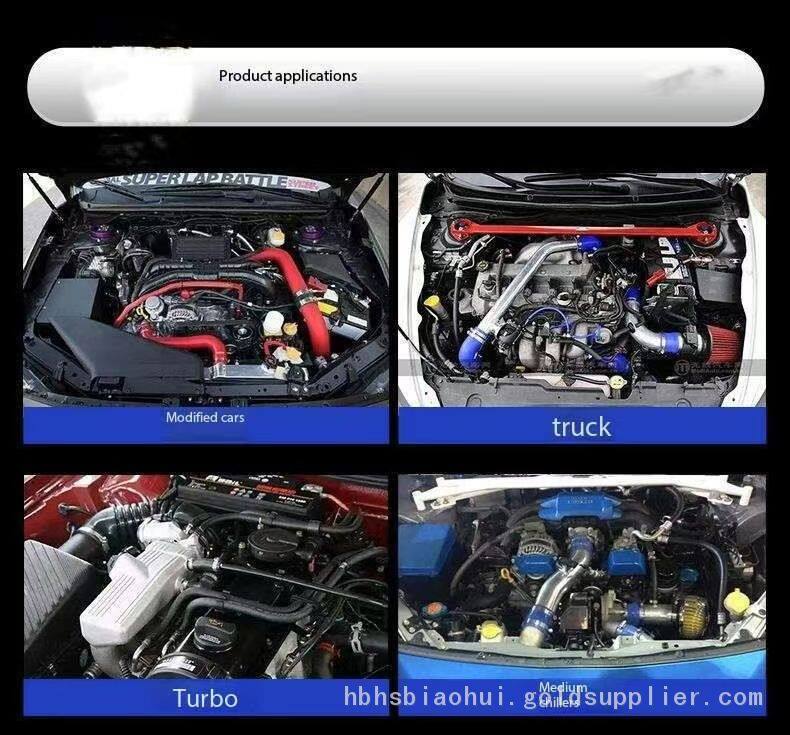

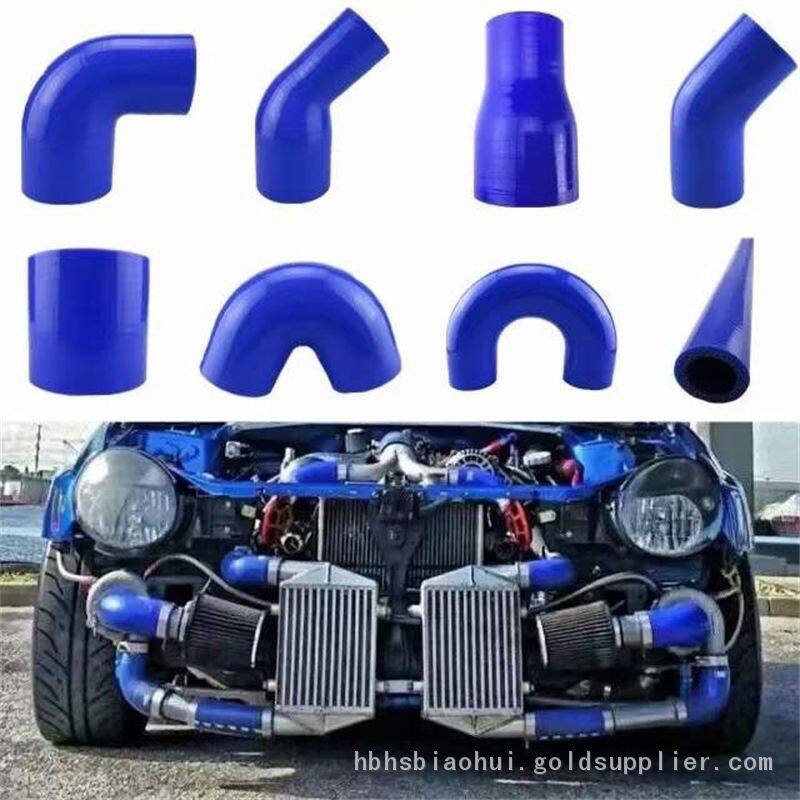

Application:
Heating and Cooling Systems, CAC Charge-Air-Cooler (Hot & Cold side) ,Turbo Charger Systems & Custom Compressor,Intercooler or Intake & Inlet Piping for turbo/
Superchargers. etc.

Characteristic:
1.Good electrical insulating performance
2.No taste, no toxic, eco-friendly.
3.High temperature resistance,aging,operative temperature: - 40 ° C ~ 220 ° C
4.Having physical laziness,Good air permeability
5.We offer OEM/ODM, We can 3D design, produce according to your drawings

Temperature:-40oC (-104 oF )to +220oC (+428 oF )

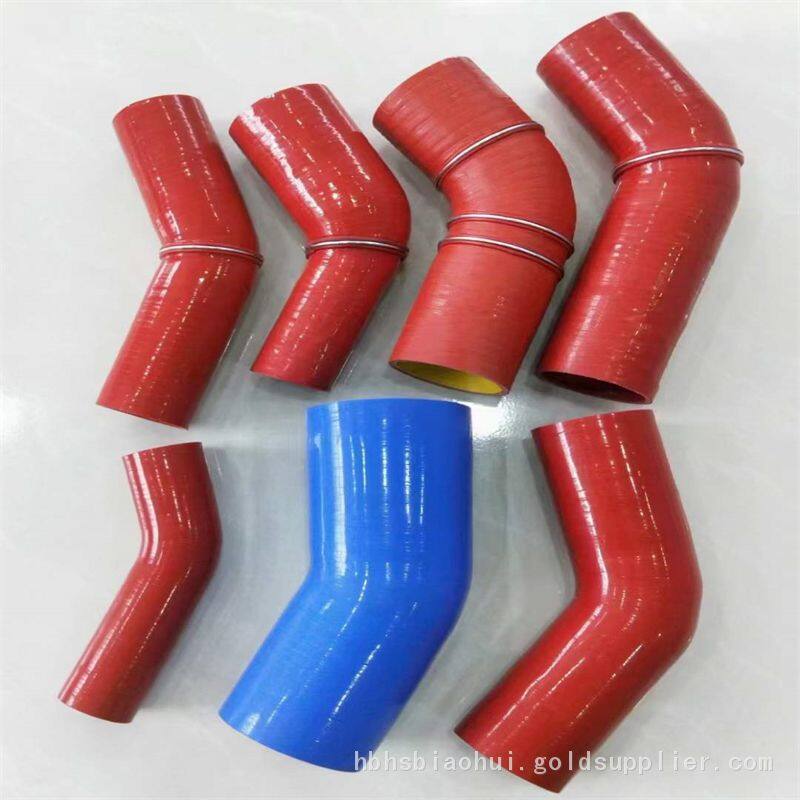

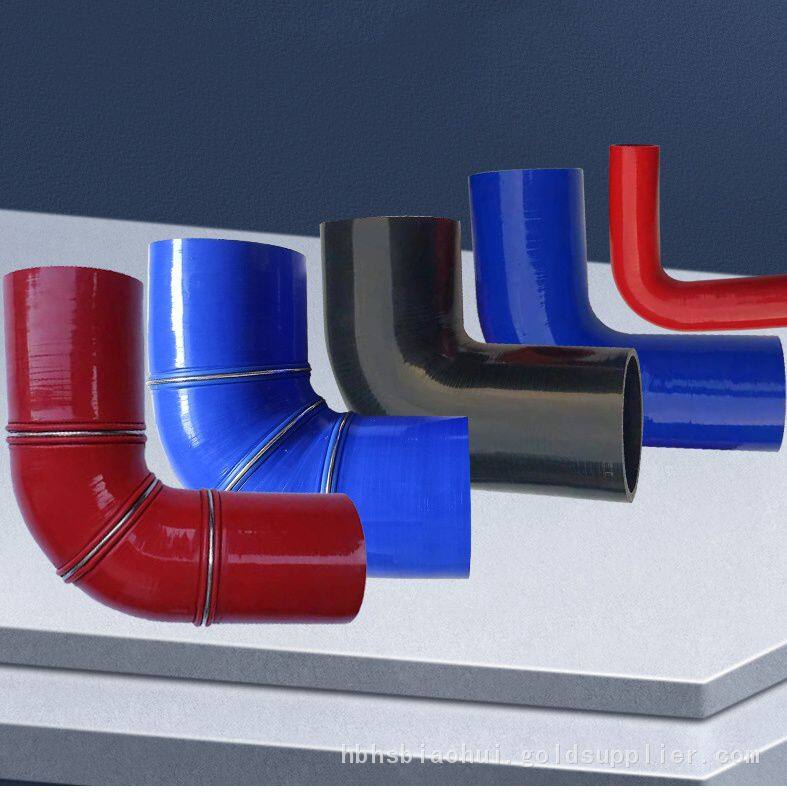

45/90/135DEGREE SILICONE ELBOW HOSE
Item Code	I.D.	Layer	Thickness (mm)	Leg Length (mm)	Item Code	I.D.	Layer	Thickness (mm)	Leg Length (mm)
Item Code	mm	Layer	Thickness (mm)	Leg Length (mm)	Item Code	mm	Layer	Thickness (mm)	Leg Length (mm)
SE1115	11	4	4.5	150*150	SE3825	38	4	4.5	250*250
SE1215	12	4	4.5	150*150	SE4125	41	4	4.5	250*250
SE1415	14	4	4.5	150*150	SE4525	45	4	4.5	250*250
SE1615	16	4	4.5	150*150	SE4825	48	4	4.5	250*250
SE1815	18	4	4.5	150*150	SE5015	50	4	4.5	150*150
SE1915	19	4	4.5	150*150	SE5115	51	4	4.5	150*150
SE2015	20	4	4.5	150*150	SE5515	55	4	4.5	150*150
SE2215	22	4	4.5	150*150	SE5715	57	4	4.5	150*150
SE2515	25	4	4.5	150*150	SE6015	60	4	4.5	150*150
SE2815	28	4	4.5	150*150	SE6315	63	4	4.5	150*150
SE3015	30	4	4.5	150*150	SE6515	65	4	4.5	150*150
SE3215	32	4	4.5	150*150	SE7015	70	4	4.5	150*150
SE3515	35	4	4.5	150*150	SE7515	75	4	4.5	150*150
SE3815	38	4	4.5	150*150	SE7615	76	4	4.5	150*150
SE4015	40	4	4.5	150*150	SE8015	80	4	4.5	150*150
SE4515	45	4	4.5	150*150	SE8515	85	4	4.5	150*150
SE4815	48	4	4.5	150*150	SE9015	90	4	4.5	150*150
SE0625	6.5	4	4.5	250*250	SE5125	51	4	4.5	250*250
SE0825	8	4	4.5	250*250	SE5425	54	4	4.5	250*250
SE0925	9.5	4	4.5	250*250	SE5725	57	4	4.5	250*250
SE1125	11	4	4.5	250*250	SE6025	60	4	4.5	250*250
SE1325	13	4	4.5	250*250	SE6325	63	4	4.5	250*250
SE1625	16	4	4.5	250*250	SE6525	65	4	4.5	250*250
SE1925	19	4	4.5	250*250	SE6825	68	4	4.5	250*250
SE2225	22	4	4.5	250*250	SE7025	70	4	4.5	250*250
SE2525	25	4	4.5	250*250	SE7625	76	4	4.5	250*250
SE2825	28	4	4.5	250*250	SE8025	80	4	4.5	250*250
SE3025	30	4	4.5	250*250	SE8325	83	4	4.5	250*250
SE3225	32	4	4.5	250*250	SE8925	89	4	4.5	250*250
SE3525	35	4	4.5	250*250	SE10225	102	4	4.5	250*250

180 DEGREE SILICONE ELBOW HOSE
Item Code	I.D.	Layer	Thickness(mm)	Leg Length (mm)	Item Code	I.D.	Layer	Thickness (mm)	Leg Length (mm)
Item Code	mm	Layer	Thickness(mm)	Leg Length (mm)	Item Code	mm	Layer	Thickness (mm)	Leg Length (mm)
SE1816-15	16	4	4.5	150*150	SE1870-15	70	4	4.5	150*150
SE1819-15	19	4	4.5	150*150	SE1876-15	76	4	4.5	150*150
SE1830-15	30	4	4.5	150*150	SE1816-20	16	4	4.5	200*200
SE1832-15	32	4	4.5	150*150	SE1819-20	19	4	4.5	200*200
SE1835-15	35	4	4.5	150*150	SE1822-20	22	4	4.5	200*200
SE1838-15	38	4	4.5	150*150	SE1825-20	25	4	4.5	200*200
SE1840-15	40	4	4.5	150*150	SE1828-20	28	4	4.5	200*200
SE1848-15	48	4	4.5	150*150	SE1830-20	30	4	4.5	200*200
SE1851-15	51	4	4.5	150*150	SE1832-20	32	4	4.5	200*200
SE1860-15	60	4	4.5	150*150	SE1835-20	35	4	4.5	200*200
SE1863-15	63	4	4.5	150*150	SE1838-20	38	4	4.5	200*200
SE1865-15	65	4	4.5	150*150
