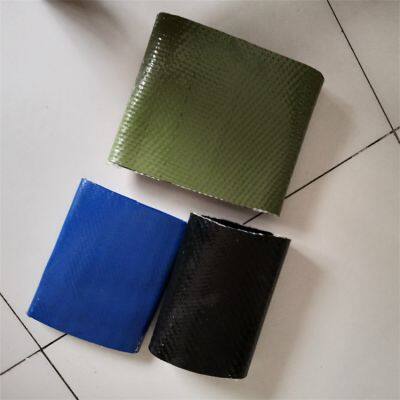

TPU flat water hose for mining use

FOB Price

Negotiable / Bag

1 Bag(Min.Order)

Supply Ability 500 Bag / Bags per Month
Port Tianjin Shanghai
Payment TermsT/T
Delivery Detail5 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Biaohui	Place of Origin	China
Model Number	complete	Material	Other, TPU
Length	50/100200m	Thickness	6mm
Specification	50-200mm	Standard	international standard

Product Description

The mining polyurethane high-pressure drainage hose adopts a one-time co extrusion process, consisting of an inner adhesive layer, a fiber-reinforced layer, and an outer adhesive layer. Both the inner and outer adhesive layers are made of high-performance thermoplastic polyurethane elastomer raw materials.

Product application and characteristics

Mining polyurethane high-pressure drainage soft material has high pressure resistance, light weight, and aging resistance; The product is anti-static and has strong environmental adaptability. It can shuttle and distribute in narrow spaces and complex mines without being easily damaged, greatly improving rescue efficiency and reducing rescue costs.

ID		Tolerance	Wall Thickness		Service Pressure	Minimum Burst Pressure	Weight
inch	mm	mm	inch	mm	psi	psi	lbs/ft	kg/m
2″	51	51.0-53.0	0.071	1.80	250	750	0.28	0.42
2″	51	51.0-53.0	0.138	3.50	410	1230	0.47	0.70
3″	76	76.0-78.0	0.118	3.00	250	750	0.60	0.90
3″	76	76.0-78.0	0.126	3.20	410	1230	0.70	1.05
4″	102	102-104.5	0.110	2.80	200	600	0.72	1.08
4″	102	102-104.5	0.138	3.50	250	750	0.87	1.30
4″	102	102-104.5	0.142	3.60	300	900	0.94	1.40
4″	102	102-104.5	0.189	4.80	610	1830	1.27	1.90
5″	125	125-127.5	0.142	3.60	150	450	1.21	1.80
6″	152	154-157	0.126	3.20	150	450	1.27	1.90
6″	152	154-157	0.149	3.80	250	750	1.41	2.10
6″	152	154-157	0.165	4.20	300	900	1.68	2.50
6″	152	154-157	0.228	5.80	410	1230	2.28	3.40
6″	152	154-157	0.216	5.50	610	1830	2.14	3.20
8″	204	204-207	0.149	3.80	200	600	1.94	2.90
8″	204	204-207	0.157	4.00	250	750	2.28	3.40
8″	204	204-207	0.165	4.20	300	900	2.35	3.50
8″	204	204-207	0.165	4.20	410	1230	2.68	4.00
10″	254	256-259	0.165	4.20	200	600	2.68	4.00
10″	254	256-259	0.177	4.50	250	750	3.02	4.50
10″	254	256-259	0.197	5.00	300	900	3.69	5.50
12″	306	306-311	0.165	4.20	150	450	2.81	4.20
12″	306	306-311	0.197	5.00	200	600	3.48	5.20
14″	356	356-360	0.189	4.80	150	450	4.36	6.50
16″	406	406-410	0.197	5.00	100	300	4.56	6.80
16″	406	406-410	0.212	5.40	150	450	5.23	7.80
