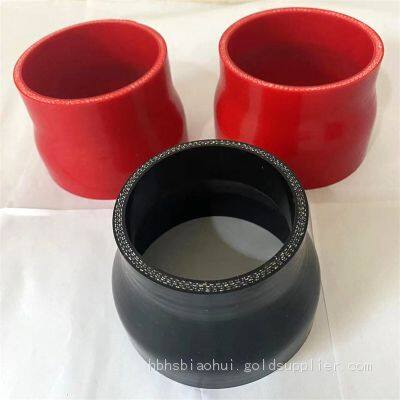

Auto Exhaust Coolant Aramid Fabric Turbo Silicone Rubber Reducer Hose for Car
Negotiable
/ Piece
1 Piece(Min.Order)
- 100000 Piece / Pieces per Month
- Tianjin shanghai qingdao shenzhen
- T/T
- 5 days
You May Like
Product Details
| Material | Organic Silicone | Certification | ISO | |
| Application | Agricultural | Temperature | -50°c ~+200°c | |
| Working Pressure | 0.3 to 1.2 MPa | Bursting Pressure | 2 to 3 MPa | |
| Hardness | 65~70 Shore a | Color | Custom Colors | |
| Feature | High Temperature, High Pressure | Thickness | 2mm ~ 6mm | |
| Tube | 100% High Quality Silicone | Reinforcement | Polyester or Aramid | |
| Cover | Silicon | Transport Package | Plastic Bag Inside and Carton Outside. | |
| Specification | 6-150mm | Trademark | Biaohui | |
| Origin | China |
Product Description
Automotive silicone tubing
Construction:
Inner:100% High quality silicone Cover:silicone
Reinforcement:4ply Polyester/Aramid fabric
Color:Black/Red/Blue/Green/Yellow
Application:
Heating and Cooling Systems, CAC Charge-Air-Cooler (Hot & Cold side) , Turbo Charger Systems & Custom Compressor, Intercooler or Intake & Inlet Piping for
turbo/Superchargers. etc.
Characteristic:
1.Good electrical insulating performance.
2.No smell, no toxic, eco-friendly.
3.High temperature resistance,aging,operative temperature: - 40 ° C ~ 220 ° C
4.Having physical laziness,Good air permeability
5.We offer OEM/ODM, We can 3D design, produce according to your drawings
Temperature:-40oC (-104 oF )to +220oC (+428 oF )
| SILICONE STRAIGHT REDUCER | |||||||||||
| Item Code | I.D. | Layer | Thickness (mm) | Length | Item Code | I.D. | Layer | Thickness (mm) | Length | ||
| mm | inch | mm | inch | ||||||||
| SR19-16 | 19-16 | 3/4"-5/8" | 3 | 4 | 76mm | SR45-32 | 45-32 | 1 3/4"-1 1/4" | 4 | 5 | 76mm |
| SR22-19 | 22-19 | 7/8"-3/4" | 3 | 4 | 76mm | SR45-35 | 45-35 | 1 3/4"-1 3/8" | 4 | 5 | 76mm |
| SR25-16 | 25-16 | 1"-5/8" | 3 | 4 | 76mm | SR45-38 | 45-38 | 1 3/4"-1 1/2" | 4 | 5 | 76mm |
| SR25-19 | 25-19 | 1"-3/4" | 3 | 4 | 76mm | SR48-29 | 48-29 | 1 7/8"-1 1/8" | 4 | 5 | 76mm |
| SR25-22 | 25-22 | 1"-7/8" | 3 | 4 | 76mm | SR48-35 | 48-35 | 1 7/8"-1 3/8" | 4 | 5 | 76mm |
| SR27-24 | 27-24 | 1 1/15"-15/16" | 3 | 4 | 76mm | SR48-38 | 48-38 | 1 7/8"-1 1/2" | 4 | 5 | 76mm |
| SR28-22 | 28-22 | 1 1/8"-7/8" | 3 | 4 | 76mm | SR48-41 | 48-41 | 1 7/8"-1 5/8" | 4 | 5 | 76mm |
| SR28-25 | 28-25 | 1 1/8"-1" | 3 | 4 | 76mm | SR48-44 | 48-44 | 1 7/8"-1 18/25" | 4 | 5 | 76mm |
| SR30-25 | 30-25 | 1 3/16"-1" | 3 | 4 | 76mm | SR49-32 | 49-32 | 1 23/25"-1 1/4" | 4 | 5 | 76mm |
| SR30-28 | 30-28 | 1 3/16"-1 1/8" | 3 | 4 | 76mm | SR50-41 | 50-41 | 1 24/25"-1 5/8" | 4 | 5 | 76mm |
| SR32-19 | 32-19 | 1 1/4"-3/4" | 3 | 4 | 76mm | SR51-25 | 51-25 | 2"-1" | 4 | 5 | 76mm |
| SP32-25 | 32-25 | 1 1/4"-1" | 3 | 4 | 76mm | SR51-29 | 51-29 | 2"-1 1/8" | 4 | 5 | 76mm |
| SR32-28 | 32-28 | 1 1/4"-1 1/8" | 3 | 4 | 76mm | SR51-32 | 51-32 | 2"-1 1/4" | 4 | 5 | 76mm |
| SR35-25 | 35-25 | 1 3/8"-1" | 3 | 4 | 76mm | SR51-35 | 51-35 | 2"-1 3/8" | 4 | 5 | 76mm |
| SR35-28 | 35-28 | 1 3/8"-1 1/8" | 3 | 4 | 76mm | SR51-38 | 51-38 | 2"-1 1/2" | 4 | 5 | 76mm |
| SR35-32 | 35-32 | 1 3/8"-1 1/4" | 3 | 4 | 76mm | SR51-44 | 51-44 | 2"-1 18/25" | 4 | 5 | 76mm |
| SR38-19 | 38-19 | 1 1/2"-3/4" | 3 | 4 | 76mm | SR51-48 | 51-48 | 2"-1 7/8" | 4 | 5 | 76mm |
| SR38-22 | 38-22 | 1 1/2"-7/8" | 3 | 4 | 76mm | SR54-51 | 54-51 | 2 1/8"-2" | 4 | 5 | 76mm |
| SR38-25 | 38-25 | 1 1/2"-1" | 3 | 4 | 76mm | SR55-50 | 55-50 | 2 4/25"-1 24/25" | 4 | 5 | 76mm |
| SR38-29 | 38-29 | 1 1/2"-1 1/8" | 3 | 4 | 76mm | SR57-45 | 57-45 | 2 1/4"-1 3/4" | 4 | 5 | 76mm |
| SR38-32 | 38-32 | 1 1/2"-1 1/4" | 3 | 4 | 76mm | SR57-51 | 57-51 | 2 1/4"-2" | 4 | 5 | 76mm |
| SR38-35 | 38-35 | 1 1/2"-1 3/8" | 3 | 4 | 76mm | SR60-51 | 60-51 | 2 3/8"-2" | 4 | 5 | 76mm |
| SR41-25 | 41-25 | 1 5/8"-1" | 4 | 5 | 76mm | SR60-55 | 60-55 | 2 3/8"-2 4/25" | 4 | 5 | 76mm |
| SR41-29 | 41-29 | 1 5/8"-1 1/8" | 4 | 5 | 76mm | SR62-58 | 62-58 | 2 11/25"-2 7/25" | 4 | 5 | 76mm |
| SR41-32 | 41-32 | 1 5/8"-1 1/4" | 4 | 5 | 76mm | SR63-51 | 63-51 | 2 1/2"-2" | 4 | 5 | 76mm |
| SR41-38 | 41-38 | 1 5/8"-1 1/2" | 4 | 5 | 76mm | SR63-54 | 63-54 | 2 1/2"-2 1/8" | 4 | 5 | 76mm |
| SR44-25 | 44-25 | 1 18/25"-1" | 4 | 5 | 76mm | SR63-57 | 63-57 | 2 1/2"-2 1/4" | 4 | 5 | 76mm |
| SR44-29 | 44-29 | 1 18/25"-1 1/8" | 4 | 5 | 76mm | SR64-44 | 64-44 | 2 13/25"-1 18/25" | 4 | 5 | 76mm |
| SR44-41 | 44-41 | 1 18/25"-1 5/8" | 4 | 5 | 76mm | SR64-60 | 64-60 | 2 13/25"-2 3/8" | 4 | 5 | 76mm |
| SR65-60 | 65-60 | 2 9/16"-2 3/8" | 4 | 5 | 76mm | SR89-70 | 89-70 | 3 1/2"-2 3/4" | 4 | 5 | 76mm |
| SR66-61 | 66-61 | 2 3/5"-2 2/5" | 4 | 5 | 76mm | SR89-76 | 89-76 | 3 1/2"-3" | 4 | 5 | 76mm |
| SR70-51 | 70-51 | 2 3/4"-2" | 4 | 5 | 76mm | SR89-80 | 89-80 | 3 1/2"-3 1/8" | 4 | 5 | 76mm |
| SR70-57 | 70-57 | 2 3/4"-2 1/4" | 4 | 5 | 76mm | SR89-83 | 89-83 | 3 1/2"-3 1/4" | 4 | 5 | 76mm |
| SR70-60 | 70-60 | 2 3/4"-2 3/8" | 4 | 5 | 76mm | SR90-60 | 90-60 | 3 11/20"-2 3/8" | 4 | 5 | 76mm |
| SR70-63 | 70-63 | 2 3/4"-2 1/2" | 4 | 5 | 76mm | SR90-70 | 90-70 | 3 11/20"-2 3/4" | 4 | 5 | 76mm |
| SR71-68 | 71-68 | 2 4/5"-2 17/25" | 4 | 5 | 76mm | SR90-80 | 90-80 | 3 11/20"-3 1/8" | 4 | 5 | 76mm |
| SR76-51 | 76-51 | 3"--2" | 4 | 5 | 76mm | SR92-90 | 92-90 | 3 16/25"-3 11/20" | 4 | 5 | 76mm |
| SR76-57 | 76-57 | 3"-2 1/4" | 4 | 5 | 76mm | SR95-89 | 95-89 | 3 17/25"-3 1/2" | 4 | 5 | 76mm |
| SR76-60 | 76-60 | 3"-2 3/8" | 4 | 5 | 76mm | SR98-80 | 98-80 | 3 21/25"-3 1/8" | 4 | 5 | 76mm |
| SR76-63 | 76-63 | 3"-2 1/2" | 4 | 5 | 76mm | SR100-70 | 100-70 | 3 9/10"-2 3/4" | 4 | 5 | 76mm |
| SR76-68 | 76-68 | 3"-2 17/25" | 4 | 5 | 76mm | SR100-76 | 100-76 | 3 9/10"-3" | 4 | 5 | 76mm |
| SR76-70 | 76-70 | 3"-2 3/4" | 4 | 5 | 76mm | SR100-80 | 100-80 | 3 9/10"-3 1/8" | 4 | 5 | 76mm |
| SR76-73 | 76-73 | 3"-2 22/25" | 4 | 5 | 76mm | SR100-83 | 100-83 | 3 9/10"-3 1/4" | 4 | 5 | 76mm |
| SR77-70 | 77-70 | 3 1/25"-2 3/4" | 4 | 5 | 76mm | SR100-90 | 100-90 | 3 9/10"-3 11/20" | 4 | 5 | 76mm |
| SR78-73 | 78-73 | 3 2/25"-2 22/25" | 4 | 5 | 76mm | SR100-94 | 100-94 | 3 9/10"-3 7/10" | 4 | 5 | 76mm |
| SR80-60 | 80-60 | 3 1/8"-2 3/8" | 4 | 5 | 76mm | SR102-51 | 102-51 | 4"-2" | 4 | 5 | 76mm |
| SR80-63 | 80-63 | 3 1/8"-2 1/2" | 4 | 5 | 76mm | SR102-76 | 102-76 | 4"-3" | 4 | 5 | 76mm |
| SR80-65 | 80-65 | 3 1/8"-2 9/16" | 4 | 5 | 76mm | SR102-83 | 102-83 | 4"-3 1/4" | 4 | 5 | 76mm |
| SR80-70 | 80-70 | 3 1/8"-2 3/4" | 4 | 5 | 76mm | SR110-103 | 110-103 | 4 8/25"-4 1/15" | 4 | 5 | 76mm |
| SR80-76 | 80-76 | 3 1/8"-3" | 4 | 5 | 76mm | SR114-76 | 114-76 | 4 12/25"-3" | 4 | 5 | 76mm |
| SR83-63 | 83-63 | 3 1/4"-2 1/2" | 4 | 5 | 76mm | SR114-90 | 114-90 | 4 12/25"- 3 11/20" | 4 | 5 | 76mm |
| SR83-70 | 83-70 | 3 1/4"-2 3/4" | 4 | 5 | 76mm | SR114-102 | 114-102 | 4 12/25"-4" | 4 | 5 | 76mm |
| SR83-76 | 83-76 | 3 1/4"-3" | 4 | 5 | 76mm | SR114-107 | 114-107 | 4 12/25"-4 1/5" | 4 | 5 | 76mm |
| SR85-63 | 85-63 | 3 7/20"-2 1/2" | 4 | 5 | 76mm | SR116-106 | 116-106 | 4 14/25"-4 4/25" | 4 | 5 | 76mm |
| SR85-80 | 85-80 | 3 7/20"-3 1/8" | 4 | 5 | 76mm | SR125-98 | 125-98 | 4 23/25"-4 21/25" | 4 | 5 | 76mm |
| SR89-51 | 89-51 | 3 1/2"-2" | 4 | 5 | 76mm | SR140-100 | 140-100 | 5 13/25"-3 9/10" | 4 | 5 | 76mm |
| SR89-57 | 89-57 | 3 1/2"-2 1/4" | 4 | 5 | 76mm | SR150-102 | 150-102 | 5 9/10"-4" | 4 | 5 | 76mm |
| SR89-64 | 89-64 | 3 1/2"-2 13/25" | 4 | 5 | 76mm | ||||||
| 45/90/135 DEGREE ELBOW REDUCER SILICONE HOSE | |||||||||||
| Item Code | I.D. | Layer | Thickness (mm) | Length (mm) | Item Code | I.D. | Layer | Thickness (mm) | Length (mm) | ||
| mm | inch | mm | inch | ||||||||
| ER25-16 | 25-16 | 1"-5/8" | 3 | 4 | 150*150 | ER76-57 | 76-57 | 3"-2 1/4" | 4 | 5 | 150*150 |
| ER25-19 | 25-19 | 1"-3/4" | 3 | 4 | 150*150 | ER/76-60 | 76-60 | 3"-2 3/8" | 4 | 5 | 150*150 |
| ER32-25 | 32-25 | 1 1/4"-1" | 3 | 4 | 150*150 | ER76-63 | 76-63 | 3"-2 1/2" | 4 | 5 | 150*150 |
| ER35-25 | 35-25 | 1 3/8"-1" | 3 | 4 | 150*150 | ER76-67 | 76-67 | 3"-2 16/25" | 4 | 5 | 150*150 |
| ER35-32 | 35-32 | 1 3/8"-1 1/4" | 3 | 4 | 150*150 | ER76-70 | 76-70 | 3"-2 3/4" | 4 | 5 | 150*150 |
| ER38-25 | 38-25 | 1 1/2"-1" | 3 | 4 | 150*150 | ER80-60 | 80-60 | 3 1/8"-2 3/8" | 4 | 5 | 150*150 |
| ER38-32 | 38-32 | 1 1/2"-1 1/4" | 3 | 4 | 150*150 | ER80-64 | 80-64 | 3 1/8"-2 13/25" | 4 | 5 | 150*150 |
| ER38-35 | 38-35 | 1 1/2"-1 3/8" | 3 | 4 | 150*150 | ER80-70 | 80-70 | 3 1/8"-2 3/4" | 4 | 5 | 150*150 |
| ER45-38 | 45-38 | 1 3/4"-1 1/2" | 4 | 5 | 150*150 | ER80-76 | 80-76 | 3 1/8"-3" | 4 | 5 | 150*150 |
| ER51-38 | 51-38 | 2"-1 1/2" | 4 | 5 | 150*150 | ER83-64 | 83-64 | 3 1/4"-2 13/25" | 4 | 5 | 150*150 |
| ER51-42 | 51-42 | 2"-1 16/25" | 4 | 5 | 150*150 | ER89-60 | 89-60 | 3 1/2"-2 3/8" | 4 | 5 | 150*150 |
| ER51-45 | 51-45 | 2"-1 19/25" | 4 | 5 | 150*150 | ER89-76 | 89-76 | 3 1/2"-3" | 4 | 5 | 150*150 |
| ER57-51 | 57-51 | 2 1/4"-2" | 4 | 5 | 150*150 | ER89-83 | 89-83 | 3 1/2"-3 1/4" | 4 | 5 | 150*150 |
| ER60-51 | 60-51 | 2 3/8"-2" | 4 | 5 | 150*150 | ER90-65 | 90-65 | 3 11/20"-2 9/16" | 4 | 5 | 150*150 |
| ER62-48 | 62-48 | 2 4/9"- 1 7/8" | 4 | 5 | 150*150 | ER90-70 | 90-70 | 3 11/20"-2 3/4" | 4 | 5 | 150*150 |
| ER63-51 | 63-51 | 2 1/2"-2" | 4 | 5 | 150*150 | ER90-76 | 90-76 | 3 11/20"-3" | 4 | 5 | 150*150 |
| ER63-57 | 63-57 | 2 1/2"-2 1/4" | 4 | 5 | 150*150 | ER90-80 | 90-80 | 3 11/20"-3 1/8" | 4 | 5 | 150*150 |
| ER64-45 | 64-45 | 2 13/25"-1 19/25" | 4 | 5 | 150*150 | ER100-83 | 100-83 | 3 9/10"-3 1/4" | 4 | 5 | 150*150 |
| ER64-51 | 64-51 | 2 13/25"-2" | 4 | 5 | 150*150 | ER102-63 | 102-63 | 4"-2 1/2" | 4 | 5 | 150*150 |
| ER65-58 | 65-58 | 2 9/16"-2 7/25" | 4 | 5 | 150*150 | ER102-76 | 102-76 | 4"-3" | 4 | 5 | 150*150 |
| ER70-51 | 70-51 | 2 3/4"-2" | 4 | 5 | 150*150 | ER102-89 | 102-89 | 4"-3 1/2" | 4 | 5 | 150*150 |
| ER70-57 | 70-57 | 2 3/4"-2 1/4" | 4 | 5 | 150*150 | ER114-89 | 114-89 | 4 12/25"- 3 1/2" | 4 | 5 | 150*150 |
| ER70-60 | 70-60 | 2 3/4"-2 3/8" | 4 | 5 | 150*150 | ER114-102 | 114-102 | 4 12/25"- 4" | 4 | 5 | 150*150 |
| ER70-63 | 70-63 | 2 3/4"-2 1/2" | 4 | 5 | 150*150 | ER127-102 | 127-102 | 5"- 4" | 4 | 5 | 150*150 |
| ER76-51 | 76-51 | 3"--2" | 4 | 5 | 150*150 | ||||||
