Supply Votech filter VPZ170/800 1.09

Supply Votech filter VPZ170/800 1.09

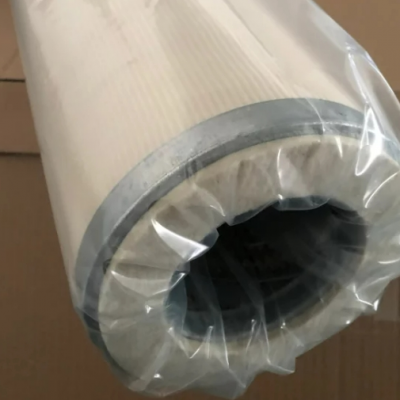

The VPZ 170/800 1.09 coalescer filter element is designed to remove small amounts of solid particles from liquids or air, which can protect the normal operation of equipment or the cleanliness of the air. When the fluid enters the filter element with a certain specification filter, its impurities are blocked, and the clean fluid flows out through the filter element.

The Votech gas filter has a high cost performance ratio, reducing costs as much as possible while meeting the requirements of filtration accuracy. After years of practical testing, this series of filter cartridges has good versatility and can replace numerous imported filter cartridges.

Material: glass fiber or ultrafine glass fiber, sealing gasket: nitrile rubber, fluororubber, support core: galvanized steel core, filter replacement pressure drop: 0.1MPa (1MPa), operating temperature: 132 ℃, filter accuracy: 0.3, 0.5, 1, 5, 10 microns and above

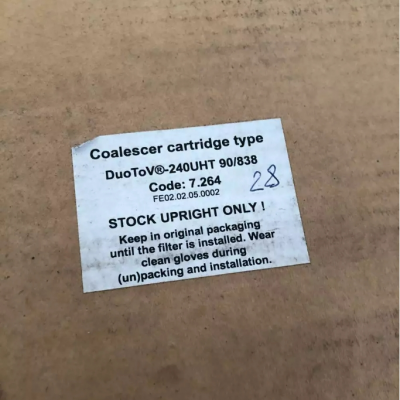

DuoToV 90/838 is composed of cellulose and multiple layers of borosilicate glass fibers, surrounding a stable core. The medium is pleated to achieve high filtration efficiency while reducing Δ P. The * * * core made of expanded carbon steel surrounds the pleated element. Glass fibers of different densities are wrapped around this core; This type of glass fiber serves as the coalescing part of the filter. The core and medium are sealed onto the metal end cap, and the gasket is completed with a natural gas resistant adhesive compound. Alternative solution: One end is installed on a resin threaded end cap and used together with an aluminum adapter, while the other end has one with? ”Resin cover for UNC bolts. The standard metal components are electroplated zinc or carbon steel, and other materials can be provided upon request.

VPZ? 170/800 1.09 filter cartridge features:

Low filtration resistance, high filtration flow rate, large pollutant capacity, and long service life. The fiber diameter and gap can be adjusted during the production process. The inner layer of the filter element is small and the outer layer is large, which increases the flow rate and pollutant capacity. The filter element is not easy to block and extends its service life.

Gas filter cartridge is suitable for gas-liquid and liquid-solid separation of natural gas, artificial gas, and other non corrosive gases such as nitrogen, carbon dioxide, propane, butane, etc. It is a separation and purification equipment component on natural gas gathering and transmission pipelines and gas gathering stations, pressure stations, distribution stations, cleaning stations, terminal stations, and various application fields. It can effectively filter the dirt and debris of pipe wall peeling in the pipeline to ensure the safe operation of gas transmission and gas equipment, meet the quality requirements of pipeline transportation and users for natural gas.

VoTech is a manufacturer of industrial gas filters based in Dusseldorf, Germany. VoTech's products are certified according to DIN EN * * 9001:2008. Main products: VoTech Filter cartridges, filters, separators, and more. VoTech's products are provided to renowed global energy and engineering companies. They provide technology and cost-effective solutions in close collaboration with customers and suppliers. VoTech's determination to constantly seek separation challenges. Their innovative research and development testing equipment enables them to perform basic research, quality control, and continuity checks.
