Product Details
| Material | Inorganic Silicone | Certification | ISO | |
| Application | Medical, Industrial | Product Name | Transparent steel wire silicone hose | |
| Tube | 100% High Quality Silicone | Thickness | 5mm | |
| Characteristic | No Taste, No Toxic, Eco-Friendly | Sample | Free Sample Available | |
| Temperature | -40~230 Degree | Hardness | 50~80 Shroe a | |
| Transport Package | Woven Bag, Plastic Film and Carton | Specification | custom | |
| Trademark | Biaohui | Origin | China |
Product Description

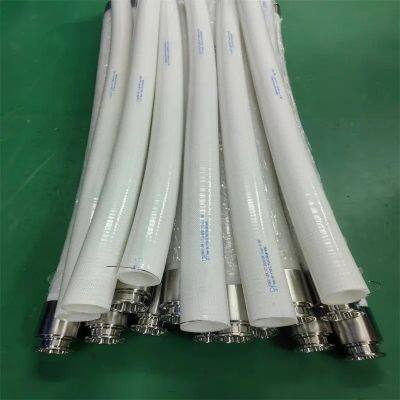

Platinum Vulcanized 4-layer Mesh Silicone Tube
Application: High cleanliness industries such as food, beverages, drinking water, cosmetics, pharmaceuticals, etc
Construction: Type SP is manufactured from High purity platinum cured Silicone with 4 layer polyester reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Translucent (Coloured covers available)
Applications: For transporting liquids at medium pressure where a closed bending radius is not required. It is not recommended for vacuum. Suitable for CIP and SIP cleaning.
Length: Standard length is 4 or 6 meters.
PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.
| CORD | ID | OD | W.P | B.P | |
| in. | mm | mm | bar | bar | |
| 06 | 1/4" | 6.4 | 16.4 | 11.5 | 34.5 |
| 08 | 5/16" | 7.9 | 18.4 | 10.5 | 31.5 |
| 10 | 3/8" | 9.5 | 20.4 | 9.5 | 28.5 |
| 13 | 1/2" | 12.7 | 23.4 | 8.5 | 25.5 |
| 16 | 5/8" | 15.9 | 26.4 | 8 | 24 |
| 19 | 3/4" | 19 | 29.4 | 7.5 | 22.5 |
| 25 | 1" | 25.4 | 35.4 | 6.5 | 19.5 |
| 32 | 1-1/4" | 32 | 43 | 5.5 | 16.5 |
| 38 | 1-1/2" | 38 | 49 | 5 | 15 |
| 45 | 1-3/4" | 45 | 56 | 4.5 | 13.5 |
| 51 | 2" | 50.8 | 62 | 4 | 12 |
| 64 | 2-1/2" | 63.5 | 75 | 3.5 | 10.5 |
| 76 | 3" | 76.2 | 88 | 2.5 | 7.5 |
| 89 | 3-1/2" | 89 | 101 | 2 | 6 |
| 102 | 4" | 102 | 114 | 1.7 | 5.1 |
Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
