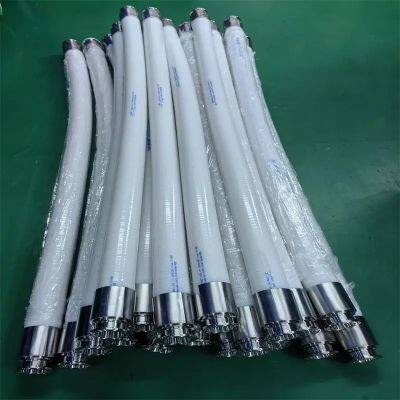

Pharmaceutical Grade High Temperature and Pressure Resistant Beverage Milk Delivery Chuck Water Pipe

Application: High cleanliness industries such as food, beverages, drinking water, cosmetics, pharmaceuticals, etc

Construction: Type SQ is manufactured from High purity platinum cured Silicone with single stainless steel helix and 4 layers of polyester reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Translucent (Coloured covers available)
Smooth inner and outer surface to resist material adhesion
Suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic
Note: If it is required to use high-temperature steam above 121 ℃ for a long time, it can be customized.
Length: Standard length is 4m, 6m or 10m.
 PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Transparent steel wire silicone tube TSO：

Application: High cleanliness industries such as food, beverages, drinking water, cosmetics, pharmaceuticals, etc

Construction: Type TSO is manufactured from High purity platinum cured Silicone with stainless steel helix reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Transparent
Smooth inner and outer surface to resist material adhesion
Suitable for pressure and vacuum.
Suitable for CIP and SIP cleaning
Odourless, Tasteless, Non-Toxic
Length: Standard length is 4 or 6 meters.
PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Platinum vulcanized mesh silicone tube:

Application: High cleanliness industries such as food, beverages, drinking water, cosmetics, pharmaceuticals, etc

Construction: Type PF is manufactured from High purity platinum cured Silicone with polyester fiber reinforcement.Temp. Range: -60°C and 200°C.

Colour: Translucent (Coloured covers available)

Length: Standard maximum length is 50 meters, for a longer length, please contact us.

 PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Platinum vulcanized 4-layer mesh silicone tube:

Construction: Type SP is manufactured from High purity platinum cured Silicone with 4 layer polyester reinforcement.
Temp. Range: -60°C and 200°C. (+260°C on request)
Colour: Translucent (Coloured covers available)
Applications: For transporting liquids at medium pressure where a closed bending radius is not required. It is not recommended for vacuum. Suitable for CIP and SIP cleaning.
Length: Standard length is 4 or 6 meters.
*PRESSURE DECREASE BY 1% FOR EVERY 1°C ABOVE 100°C.

Hebei Biaohui Rubber and Plastic Products Co., Ltd. main products include TPU flat hose series, fire hose series, industrial hose series, material conveying hose series, silicone hose series, metal hose series, PTFE hose series and matching joints, various rubber and plastic products and hose products.
