Baosteel B18R060 oriented silicon steel Class I energy efficiency, silicon steel for dry-type/oil transformers

I. Products

Baosteel Oriented Silicon Steel B18R060 is the world's first 0.18mm thickness, 060 grade very low iron loss orientated silicon steel independently developed by Baosteel, with an iron loss value (P1.7/50) about 15% lower than that of the highest international grade, making it the world's lowest loss orientated silicon steel product at present. The product adopts a low-temperature, high magnetic susceptibility manufacturing process that breaks through the limitations of traditional high-temperature processes, and achieves a combination of high permeability and low hysteresis loss through precise control of grain orientation (Goss Orientation Consistency). Typical magnetic performance indicators include magnetic induction B800 of 1.91 T, which significantly improves the energy efficiency of transformers.

B18R060 belongs to the core achievement of intelligent production of Baosteel's ‘fourth-generation smart factory’,which has taken 10 years of technical research, solved the problems of grain orientation control, surface coating optimisation, etc., and realised full coverage of the highest grade of full-thickness specifications (from 0.18mm to 0.35mm) of grain oriented silicon steel and maintained the global leading advantage in four specifications. The product has passed the GB 20052-0002 standard. The product has passed the GB 20052-2020 standard certification, and has become the preferred material for super first-class energy-efficiency transformers, which has pushed China's oriented silicon steel technology into the world's leading ranks.

II. Main uses

With its extremely low iron loss characteristics, B18R060 is widely used in the field of energy efficient power equipment:

1, Super Grade 1 energy-efficient transformer:

Used in manufacturing silicon steel laminated core distribution transformers, no-load loss is reduced by more than 30% compared with traditional products, meeting the national level 1 energy efficiency standards (such as S15-M series), widely used in power grid energy saving transformation.

In the field of ultra-high voltage transmission, B18R060 is used in ±1100kV Changji-Guquan ultra-high voltage DC transmission project, replacing imported materials and supporting the demonstration project with the world's highest voltage level and longest transmission distance.

2, high-efficiency motors and low noise equipment:

Used in new energy vehicle drive motors, industrial motors, etc., to optimise electromagnetic performance and improve energy efficiency; at the same time, transformers made of products with low magnetostrictive properties have been used in noise-sensitive scenes such as Guangzhou Baiyun Airport and Xiamen BRICS Conference Main Venue, with a noise reduction effect of 2-4dB.

3, energy saving and emission reduction potential:

If the national high energy-consuming transformers using B18R060 upgrades, the annual power savings of up to 90 billion kWh, equivalent to 90% of the annual power generation of the Three Gorges Power Station, significantly contributing to the ‘dual-carbon’ goal.

III. Storage and maintenance

Although the insulating coating (magnesium silicate base + silica sol coating) orientated to silicon steel is corrosion-resistant, the following precautions should be taken for long-term storage:

1, environmental control:

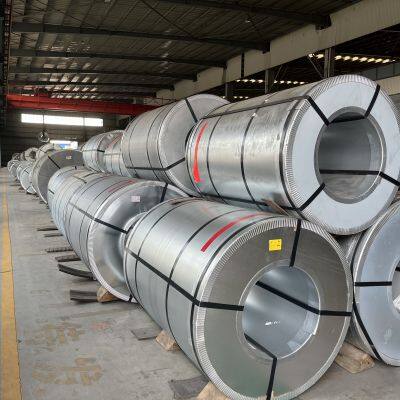

The storage area should be kept dry and sealed, with a temperature difference of ≥5℃ from the dew point to avoid moisture condensation leading to rust. The packaging of steel coils should be complete, and those damaged in transport should be resealed and wrapped with anti-rust paper.

2, Rust protection:

Coils found to be rusty should be used as a priority, sealed if necessary, and professional anti-rust paint should be used to protect the edges.

3, Handling specification:

Use soft spreader, avoid mechanical collision or scratching the surface coating to ensure stable electromagnetic performance.

IV. Payment modalities

Only support T/T payment, the implementation of the FOB standard, the first to determine the variety and grade of silicon steel, sign the contract prepayment of 40%, in the delivery period the goods ready to send to the designated domestic port (such as Tianjin Port), after settlement of the final payment, the goods loaded on the ship.

V. Summary

With world-leading iron loss performance (15% lower than the highest international grade) and intelligent production process, Baosteel B18R060 has become the core material for high-efficiency power equipment and is widely used in super Grade 1 energy-efficiency transformers, ultra-high-voltage projects and low-noise scenarios. Its storage needs to strictly follow the moisture-proof and rust-proof specifications to guarantee stable long-term performance. The promotion of this product not only breaks the international monopoly, but also significantly improves China's competitiveness in the field of high-end materials and provides key technological support for global energy transformation.
