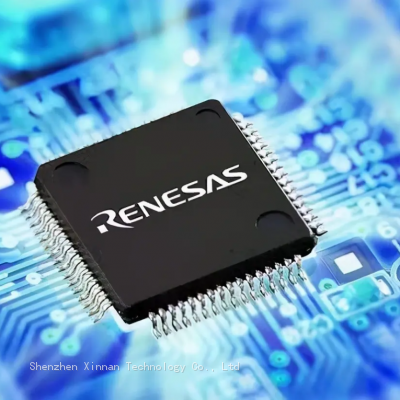

RENESAS R5F1026AASP#55 microcontroller microcontroller converter

1. OUTLINE

1.1 Features

Ultra-low power consumption technology

? VDD = single power supply voltage of 1.8 to 5.5 V which

can operate at a low voltage

? HALT mode

? STOP mode

? SNOOZE mode

RL78 CPU core

? CISC architecture with 3-stage pipeline

? Minimum instruction execution time: Can be changed

from high speed (0.04167 ?s: @ 24 MHz operation with

high-speed on-chip oscillator) to ultra-low speed (1 ?s:

@ 1 MHz operation)

? Address space: 1 MB

? General-purpose registers: (8-bit register x 8) x 4 banks

? On-chip RAM: 256 B to 2 KB

Code flash memory

? Code flash memory: 2 to 16 KB

? Block size: 1 KB

? Prohibition of block erase and rewriting (security

function)

? On-chip debug function

? Self-programming (with flash shield window function)

Data flash memory Note

? Data flash memory: 2 KB

? Back ground operation (BGO): Instructions are

executed from the program memory while rewriting the

data flash memory.

? Number of rewrites: 1,000,000 times (TYP.)

? Voltage of rewrites: VDD = 1.8 to 5.5 V

High-speed on-chip oscillator

? Select from 24 MHz, 16 MHz, 12 MHz, 8 MHz, 6 MHz,

4 MHz, 3 MHz, 2 MHz, and 1 MHz

? High accuracy: +/- 1.0 % (VDD = 1.8 to 5.5 V, TA = -20

to +85 °C)

Operating ambient temperature

? TA = -40 to +85 °C (A: Consumer applications, D:

Industrial applications)

? TA = -40 to +105 °C (G: Industrial applications) Note

Power management and reset function

? On-chip power-on-reset (POR) circuit

? On-chip voltage detector (LVD) (Select interrupt and

reset from 12 levels)

DMA (Direct Memory Access) controller Note

? 2 channels

? Number of clocks during transfer between 8/16-bit SFR

and internal RAM: 2 clocks

Multiplier and divider/multiply-accumulator

? 16 bits x 16 bits = 32 bits (Unsigned or signed)

? 32 bits x 32 bits = 32 bits (Unsigned)

? 16 bits x 16 bits + 32 bits = 32 bits (Unsigned or

signed)

Serial interface

? CSI : 1 to 3 channels

? UART : 1 to 3 channels

? Simplified I2C communication : 0 to 3 channels

? I2C communication : 1 channel

Timer

? 16-bit timer : 4 to 8 channels

? 12-bit interval timer : 1 channel

? Watchdog timer : 1 channel (operable with the

dedicated low-speed on-chip

oscillator)

A/D converter

? 8/10-bit resolution A/D converter (VDD = 1.8 to 5.5 V)

? 8 to 11 channels, internal reference voltage (1.45 V),

and temperature sensor Note

I/O port

? I/O port: 18 to 26

(N-ch open drain I/O [withstand voltage of 6 V]: 2,

N-ch open drain I/O [VDD withstand voltage]: 4 to 9)

? Can be set to N-ch open drain, TTL input buffer, and

on-chip pull-up resistor

? Different potential interface: Can connect to a 1.8/2.5/3

V device

? On-chip key interrupt function

? On-chip clock output/buzzer output controller

Others

? On-chip BCD (binary-coded decimal) correction circuit

Note Can be selected only in HS (high-speed main)

mode.

Remark The functions mounted depend on the product.

See 1.7 Outline of Functions.
