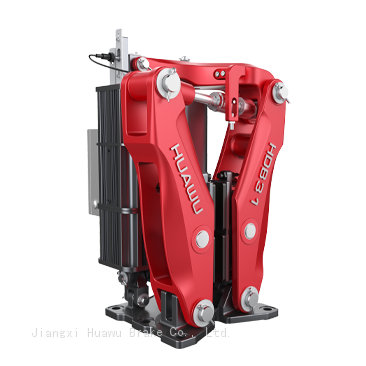

HDB series new-type arm disc braking system

Application:

HDB series new-type arm disc braking system is a kind of fully new product created by our company based on the industry design principle and the development trend of main engines. Structures of this braking system is less and the transmission efficiency is higher, which is equipped with HED series valve-control electro-hydraulic thruster, industrial friction lining and BMS-III braking system. This product is featured by big brake torque and quick response speed, it also forms an interlocking control with main engine, which can real time monitor the braking condition and the wear of friction lining, not only safety but also reliable.It is applied for the decelerating and holding (parking) braking of various mechanisms in modern large special loading/unloading machinery, hoisting & transporting machinery, metallurgical equipment, mining equipment and engineering machinery and it is also used as emergency braking device in special occasion.

Function introduction:

●Hand release limit device can feed back the signal to the main control to carry out the interlocking protection while brake applying the hand release.

●Release limit sensor an realize whether the brake can display the signals of normal release or carry out the interlocking protection.

●Pad wear extreme limit sensor can send signal to make the main machine carry out the interlocking protection while pad being worn to a limit.

●BMS-III Brake Monitoring System can collect the data from sensor such as clamping force, braking force, braking temperature, stroke of push rod and wear limit, etc. After being analyzed and diagnosed, the in-service information, maintenance information and remained lifetime can be uploaded to the display interface of upper computer via Profibus or CAN bus. And inform the maintenance personnel to carry out maintenance and upgrading on products.
