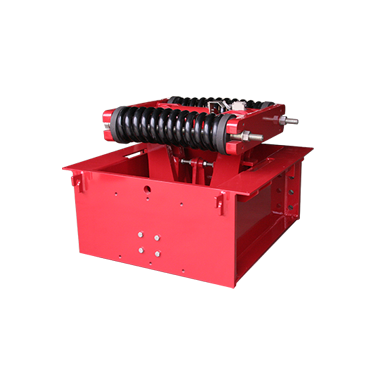

ZPMC STS Crane hydraulic rail brake

MAIN FEATURE:

01 Spring clamp, hydraulic station drive release.

02 Anti corrosion design.

03 Equipped with a release limit switch for interlock protection.

04 Power unit with manual pump (applicable to YJE, YJJ series, and only for YJE300, YJJ300 and below specifications).

05 The hydraulic station is equipped with a manual pump and an electrical control box (for YJE and YJJ series, only for YJE400, YJJ400 and above specifications).

06 The YJD series rail clamps are connected by top flange, while all other specifications are connected by end flange.

07 The clamp body has a floating structure: horizontal floating distance ± 20mm, vertical floating distance ± 20mm.

BASIC PARAMETER:

YJA series hydraulic rail clamp:

Product model: YJA160、YJA200、YJA250、YJA315、YJA400、YJA560、YJA600、YJA800、YJA1000、YJA1200

Clamping force (KN): 160, 200, 250, 315, 400, 560, 600, 800, 1000, 1200

Anti slip force (KN): 80, 100, 125, 160, 200, 280, 300, 400, 500, 600

YJD series hydraulic rail clamp:

Product model: YJD160、YJD200、YJD250、YJD315、YJD400、YJD560

Clamping force (KN): 160, 200, 250, 315, 400, 560

Anti slip force (KN): 80, 100, 125, 160, 200, 280

YJE series hydraulic rail clamp:

Product model: YJE50、YJE100、YJE150、YJE200、YJE300、YJE400、YJE500、YJE600、YJE800、YJE1000、YJE1200

Clamping force (KN): 50, 100, 150, 200, 300, 400, 500, 600, 800, 1000, 1200

Anti slip force (KN): 25, 50, 75, 100, 150, 200, 250, 300, 400, 500, 600

YJJ series hydraulic rail clamp:

Product model: YJJ50、YJJ100、YJJ150、YJJ200、YJJ300、YJJ400、YJJ500、YJJ600、YJJ800、YJJ1200

Clamping force (KN): 50, 100, 150, 200, 300, 400, 500, 600, 800, 1200

Anti slip force (KN): 25, 50, 75, 100, 150, 200, 250, 300, 400, 600
