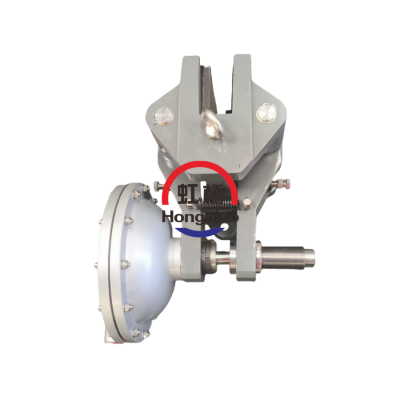

Pnematic Brake Gantry Crane Brake

Product Description

1) Major elements:

    air pump

    air bag

    brake chamber

    brake cam

2) Domains of utility:

  1. braking and deceleration of various mechanisms in hoisting;

  2. transportation field;

  3. metallurgy realm;

  4. mining sphere;

  5. port field;

  6. construction machinery

3) Conditions of use:

      Ambient temperature: - 5 oC - 40 oC;

Working pressure: QP series: 5-7bar; CQP series: ≤ 7bar;

   Outdoor rain and snow erosion or corrosive gases and media should be anti-corrosion products;

   The air source shall be free from oil, water and other impurities.

4) Unique selling points:

    modern and novel in external form;

 high in quality and durability;

    high in cost performance;

powerful in functionality

Main feature:

● Compact structure, small size, light weight, high reliability, easy to install and use.

● Sensitive action, flexible control

●QP series pneumatic caliper disc brake meets the installation performance requirements of  foreign similar  products. Matching imported air pocket, reliable performance, long life.

● The brake pad is plug-in, with unique structure,  replacement is convenient.

● Can be installed display device, the brake working state can be displayed intuitively.

● All power sources do not need to be set separately, and can be connected to the grid with the existing air compressor station. The speed control valve is installed in the air supply line, and the braking time can be adjusted without limit.

● Normally closed: spring brake, pneumatic release. Normally open design: pneumatic braking, spring release, braking force can be flexibly changed with air pressure.

Basic technical data:

                                                                                QP12.7 type

                                                                         CQP12.7 type
