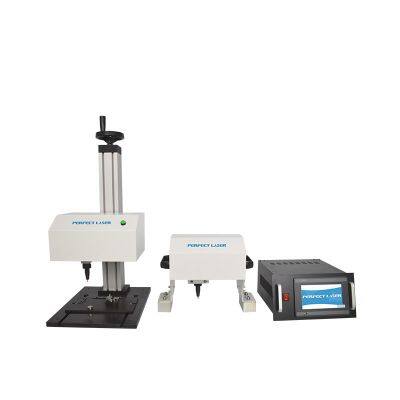

LCD Control Multi-functional Desktop and Portable Handheld Dot Peen Marking Machine
- shanghai
- T/T
- 7 days
You May Like
-
Nameplate Embossing Imprinter Machine with Stereoscopic Sensation Character
-
300x300mm 10W Intelligent Automatic Portable Desktop Small Laser Cutter Engraver
-
400x415mm 10W Intelligent Automatic Portable Desktop Small Laser Cutter Engraver
-
150X100 LCD Control Vin number Chassis Handheld Metal Dot Peen Marking Engraving Machine
-
Industrial CNC Fabric Cutter Machine For Automatic Cloth Cutting
-
2000x2500mm Automatic Industrial CNC Fabric Cloth Textile Cutting Machine
Product Details
| Brand Name | Perfect Laser | Place of Origin | China | |
| Model Number | PEQD-450 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Application | Metal plastic stone engraving | Rated Power | 400W | |
| Condition | New | Engraving Speed | 50mm/s for 3mm letter height/ 3-4 numbers/second |
Product Description
Features:
1. The LCD flat pneumatic marking machine adopts intelligent controller to drive the head, without connecting to a computer; the system is easy to operate, with a friendly interface, suitable for various operators.
2. With digital and character font, the printing content can be digital, large and small letters, Chinese characters, special characters, etc..
3. The font can be solid or dot matrix. Users can add a variety of numbers, letters, Chinese characters, special characters and other font.
4. The pneumatic marking machine can Automatic printing of date, running number, VIN code, etc. In a variety of formats for the user to choose.
5. Portable and desktop marking head to meet the marking needs of large and small work-pieces at the same time. To provide you with a full set of marking solutions.
6. LCD flat surface pneumatic marking machine is easy to maintain and has a strong ability to adapt to the environment.
Technical Data:
Machine Name | LCD Control Multi-functional Desktop and Portable Handheld Dot Peen Marking Machine |
Model | PEQD-450 |
Machine Type | Portable+Desktop+LCD Type Pin Marking Machine |
Standard Marking Area | 135mm×20mm |
Optional Marking Area | 90mm×20mm, 125mm×20mm 150mm×100mm, 200mm×100mm |
Marking Depth | 0.01~2mm |
Marking Speed | ≤50mm/second (for characters height of 3mm / 3-4 numbers/s) |
Lifting Range | 0-300 mm (customizable) |
Marking Accuracy | 0.01 mm |
Pin Hardness | HRA 92 |
Power Supply | 220V±10％, 50HZ |
Air Pressure | 0.2-0.6 Mpa |
Machine Power | ≤400 W |
Working Environment | -5～40 ℃ |
