Home > Products > cloth cutting machine > 2200x3300mm Automatic CNC Multi Layers Fabric Curtain Leather Glove Quilt Clothing T Shirt Spreading Cutter Cutting Machine

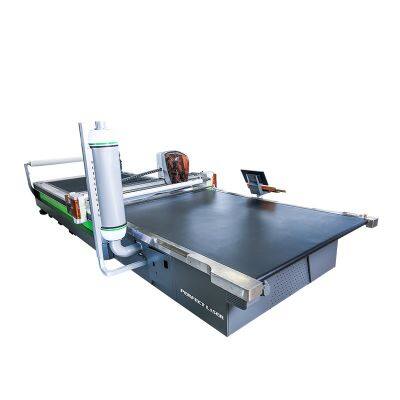

2200x3300mm Automatic CNC Multi Layers Fabric Curtain Leather Glove Quilt Clothing T Shirt Spreading Cutter Cutting Machine
- 100 Unit / Units per Month
- shanghai
- T/T
You May Like
-
Fully Automatic Industrial Cloth Fabric Spreading Machine
-
Fully Automatic PLC Fabric Spreading Machine
-
2W Mini Multifunctional Automatic Portable Metal Laser Engraving Machine
-
5W Intelligent Mini Fold-able Desktop Automatic Laser Engraving Cutting Machine
-
5W Intelligent Rechargeable Small Portable Handheld Laser Marker
-
5W Portable Handheld Small Laser Marking and Engraving Machine for Wood/Bamboo/Acrylic/Leather/Paper
Product Details
| Brand Name | Perfect Laser | Place of Origin | China | |
| Model Number | PE-B2233 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 year | Voltage | 380V | |
| Certification | CE | Application | fabric cutting | |
| Condition | New | Features | Multi layer cutting | |
| Automatic Grade | Automatic |
Product Description
Features:
1. The auto fabric cutting machine adopts Integrated frame design, processed by a 540° high-temperature stress annealing process for 12 hours.
2.The track mounting surface and the support surface of the bristle feeding mechanism, both processed by the large CNC gantry milling machine, ensures the accuracy of installation and improve the stability of the drive components during high-speed motion.
3.The XY axis of the fabric cutter adopts a precision gear rack drive, which increases both accuracy and stability.
4.The one-piece open mold beam is made of high-strength industrial aluminum extrusion molding, processed by a high-precision CNC gantry milling machine, improving stability and enhancing aesthetics.
5.The filter structure of vacuum pump improves the safety and lifetime of the air pump and also reduces the environmental impact of cutting beds.
Technical Data:
Model | Automatic fabric cutting machine PE-B2233 |
Cutting Height | 6cm/9cm (after adsorption) |
cutting window | Length (unlimited) |
width(no wider than the fabric width ) | |
Working width(Y) | 1800mm/2000mm/2200mm (optional) |
Standard cutting length(X) | 2500mm/3300mm (optional) |
Standard picking table length(X) | 2200mm/3000mm |
Electricity | Three phase 380V, 50-60Hz |
Power Consumption | 18KW MAX |
CAD&CAM Connect way | Ethernet communication/ USB Flash memory |
Max Speed of Blade Working | 6000RPM |
Compressed Air | 0.55Mpa 160L/min |
Max Cutting Speed | 60000mm/min |
Acceleration | 1～1.2g (N/ Kg) |
Noise Level | ＜72 dbA |
