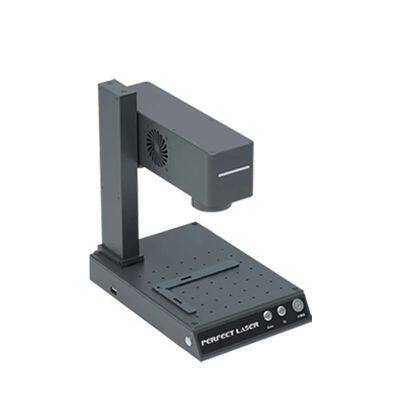

Red And Blue Dual-light Rotatable Automatic Small Metal Laser Marking Engraving Machine
- 1000 Set / Sets per Month
- SHANGHAI
- T/T
- 7 days
You May Like
-
20W 30W Mini Integrated Multifunctional Fiber Laser Marking Machine
-
1200X1500MM DIE Board co2 laser cutter
-
1200x1800mm Single Head 400W / 600W Laser Die Board Cutting Machine
-
1300x2500mm 1500W co2 Laser Flat Die Board Cutting Machine
-
3m length Rotary Die Board co2 Laser Cutting Machine
-
Low Consumption Automatic Double Heads CNC Rotary Wood Template Die Milling Cutting Machine
Product Details
Brand Name | Perfect Laser | Place of Origin | China | |
Model Number | PEDB-90 | Certification | CE | |
After-sales Service Provided | Engineers available to service machinery overseas | Condition | New | |
Graphic Format Supported | AI, DXF, PLT | Cooling Mode | Air Cooling | |
CNC or Not | Yes | Laser Type | Semiconductor |
Product Description
Features:
1. Perfect Laser mini laser engraver weighs only 6.29kg and is easy to carry without being limited by time and space.
2. The mini laser engraver adopts customized optical crystal, 455nm blue light, 1064nm pulsed laser. One-button switching between red and blue lights, covering all materials, from paper to metal, can be engraved excellently, making engraving faster and more precise.
3. The mini laser engraver has high-speed galvanometer with integrated design, combined with the industrial all-quartz field mirror, can reach ≥10000mm/s fast marking, the spot accuracy can reach 0.001mm, and the small size can give full play to the performance of the pulse laser, effectively realizing high Accurate and fast marking.
4. The mini laser engraver adopts high precision motor to control the lifting of bracket, intelligent double optical electric focusing, horizontal and vertical can focus, easy to operate.
5. For large objects, the laser module can be rotated 180° and mounted to mark large objects, can be easily solved.
6. New software, more variety. You can edit pictures,vector diagrams, bar codes, two-dimensional code engraving, serial number, production date and other functions in the software, editing function is powerful, to meet your various marking needs.
7. The small laser marking machine is detachable and easy to store. The lining material of the box closely fits the object to prevent bumping and shaking. Set safe storage as one.
Technical Data:
Product name | Red And Blue Dual-light Rotatable Automatic Small Metal Laser Marking Engraving Machine |
Model | PEDB-90 |
Infrared laser power | 10W |
Infrared laser wavelength | 1064nm |
Semiconductor blue light laser power | 15W |
Semiconductor blue light laser wavelength | 455nm |
Material | Aluminum Alloy |
Engraving accuracy | ≤0.001mm |
Engraving speed | ≤10000mm/s |
Operating ambient temperature | -10C~65°℃ |
Cooling method | Air-cooled |
Repeat engraving accuracy | ≤0.001mm |
Engraving depth | 0.015mm~0.2mm |
Engraving area | 70*70mm |
Voltage | 90~220V |
Support system | Win7/Win8/Win10/Win11/XP |
Image format | JPEG/BMP/TIF/GIF/DXF/PLT/PNG |
Whole machine power | ≤300W |
Machine size | 300mm*200mm*320mm |
Machine weight | 6.29KG |
