Home > Products > dot peen marker > 90X20MM LCD Control Vin number Chassis Handheld Metal Dot Peen Marking Engraving Machine

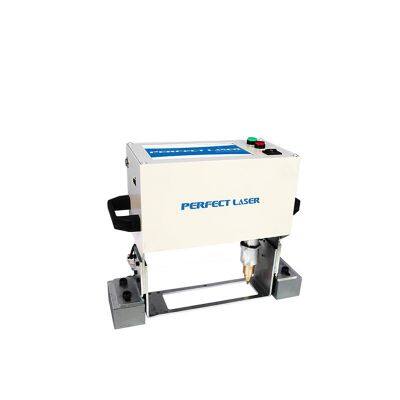

90X20MM LCD Control Vin number Chassis Handheld Metal Dot Peen Marking Engraving Machine
- 400 Unit / Units per Month
- shanghai
- T/T
- 7 days
You May Like
-
90X30MM Battery type LCD Control Vin number Chassis Handheld Metal Dot Peen Marking Engraving Machine
-
190x120MM Electric Small desktop Metal nameplate tag Dot Peen Marking Engraving Machine
-
Dot Pin Marking Machine for Flange and Flywheel Edge Marking
-
Multifunctional Horizontal Rotary Metal Flange Dot Pin Pneumatic Marking Machine With Computer
-
LCD Control Multi-functional Desktop and Portable Handheld Dot Peen Marking Machine
-
Nameplate Embossing Imprinter Machine with Stereoscopic Sensation Character
Product Details
| Brand Name | Perfect Laser | Place of Origin | China | |
| Model Number | PEQD-030H | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Application | Metal plastic stone engraving | Rated Power | 400W | |
| Condition | New | Engraving Speed | 50mm/s for 3mm letter height/ 3-4 numbers/second |
Product Description
Features:
1.The portable handheld dot peen marking machine has a high strength adsorption force of the electromagnet, electricity can be locked, suitable for marking objects of different sizes.
2.Integrated molding design, touch screen control, plug in power can be operated.
3.The portable handheld dot peen marking machine adopt ARM control chip, strong performance, overall speed up 5-6 times.
4. High precision linear guide rail, smooth running, wear-resistant and durable, better engraving effect.
5. HRC92° high carbide marking needle, durable, can play HRC60° within a variety of substances.
6.The portable handheld dot peen marking machine adopt Taiwan linear guide rail, marking smooth without delay.
7. Professional grade pure copper motor, strong power, high temperature resistance, fast heat dissipation, suitable for high strength operation.
8. High quality touch screen, strong performance, marking smooth step, solid material, low fault.
Technical Data:
Machine Name | Portable Handheld Integrated Dot Peen Marking Machine |
Model | PEQD-030H |
Marking Depth | 0.02-1mm |
Marking Speed | 3-5 characters / second |
Marking Area | 40mm * 140mm/160mm * 80mm |
Power Supply | AC220V/110V,50HZ |
Compressed Air | 0.5Mpa |
Air Consumption | 3L/S |
Power Consumption | ≤400W |
Operating Temperature | 1-40℃ |
Relative Humidity | ＜90% |
Pin Hardness | HRC92 |
Weight | 30kg |
