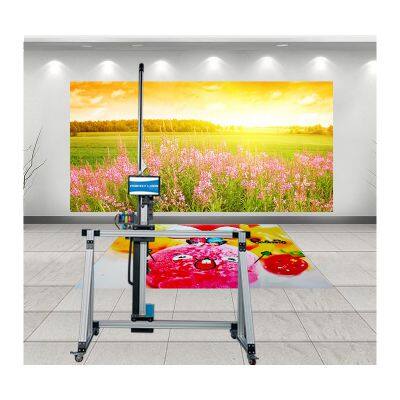

9600dpi CMYK+White Light Weight Two heads UV Floor and Wall Printing Machine

Model

PE-S10

PE-UV-10

UV Curing Lamp

No

Have

White Ink Painting

No

Have

Other Parameters

Data Transmission Method

Usb2.0/3.0/Bluetooth/Wireless Control (Optional)

Ultrasonic Sensor

Pair

Length * Width * Height (Host)

40cm*32cm*250cm

The Fastest Painting Speed

64 Square Meters/Hour

Highest Painting Accuracy

9600dpi

Ink Consumption Per Square

6-10ML

Nozzle Model

Epson Print Head (Industrial Grade)

X Axis Folding

Optional

Nozzle Guard

Have

Head Ink Tank

Can Be Split And Transported Separately

Motherboard Configuration

8-Core CPU, 4Gbddr Memory

Painting Direction

Vertical

X Axis Guide

2500mm (Can Be Raised And Lowered)

Y Axis Guide

4500mm (Can Be Switched Arbitrarily And Used Cyclically)

Z Axis Guide

170mm

Display Screen

Comes With 11.6-Inch Touch Panel

X Axis Effective Stroke

2000mm (The Height Can Be Raised And Lowered)

Y Axis Effective Stroke

Unlimited

Z Axis Effective Stroke

150mm

Synchronous Belt

No

Total Body Weight

32kg

Total Track Weight

38kg

Ink Tank Capacity

400Ml

Nozzle Cleaning

One Key Automatic

Wall + Floor Double Color Painting System

Have

Flash Spray Test

Touch

Inkjet Test

Touch

Automatic Nozzle Avoidance

Have

Spirit Level

Have

Print White

Optional

Painted Mode

Two-Way

Gallery Type

Beautifully Printed Gallery Book + Mobile Hard Disk

Picture Processing

AI Intelligent Image Processing

Automatically Block Large Images

Unlimited Height/Width Size Of Painted Pictures

Interrupt Automatic Marking

Have

Auto-Complement

Have

Quiet Zone Calibration

Have

Step Calibration

Have

Nozzle Buffer

Have

Spray Distance

0.5-2.0cm

Ink Supply Method

Negative Pressure Automatic Ink Supply

Color Processing

Automatic Color Matching

Painted Medium

All White Walls

Integrated Voltage Regulator

Have

Laser Positioning

Have

Magnetic Limit

Have

Automatic White Jump

Have

Battery Life

Have

Power-Off Endurance Time

About 12 Hours

Picture On Demand

Have

Machine Trailer

Optional

Certification

Green Environmental Protection Certification, National Standard Testing Qualified (Gb18582-2001, Gbt9756-2001), Ce Certification

Power Supply

Ac110V (90-132V)/Ac220V (180-264V) Ac, 47-63Hz

Power Consumption

No Load 20W, Generally 75W, Up To 250W

Noise

Standby <20dba, Drawing <50dba

Construction Temperature

-10°C-60°C (14°F-140°F) 10%-80% Relative Humidity, Non-Condensing

Storage Temperature

-30°C-60°C (-22°F-140°F) 10%-80% Relative Humidity, Non-Condensing

Language Switch

Chinese And English (Customizable)

The System Platform

Windows XP / Win7 / Win8 / Win10
