50kw 100kw 120kw 160kw 200kw 250kw 280kw 300kw Sound Proof Electric Diesel Generator

FOB Price

USD $5500 - $125000 / Piece

1 Piece(Min.Order)

Port FUZHOU
Payment TermsT/T L/C
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CUMMINS	Place of Origin	China
Model Number	SP-C	Output Type	AC Three Phase
Speed	1500/1800RPM	Frequency	50/60HZ
Rated Voltage	220-440V	Rated Power	20KW~1380KW

Product Description

50kw 100kw 120kw 160kw 200kw 250kw 280kw 300kw Sound Proof Electric Diesel Generator

1.PRODUCT Feature
power output:20KW~1380KW
Powered by water-cooled diesel engine
Alternator:Stanford,Leroy somer,Marathon,
AMF panel with ATS

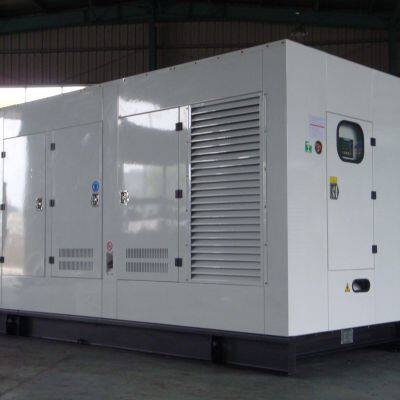

Soundproof,weather proof,trailer type for optional
Manual of engine,alternator and control system
with two storage battery and silencer
Fuel tank for 8 H running based on frame
1 year or 1000 H guarantee

2.Technical specifications( 20KW~1380KW )

SPECIFICATION SHEET FOR 50HZ GENERATOR SETS
(1500 rpm, 3-phase 4-wire, 230/400V, PF=0.8)
Generator Set Model		Prime Power		Standby Power		Engine		Maximum current(A)
Prime	Standby	KW	KVA	KW	KVA		Power (kw)	Maximum current(A)
SP-C20P-1	SP-C22S-1	20	20	22	22	4B3.9-G1	24-27	96
SP-C20P-1	SP-C22S-1	20	20	22	22	4B3.9-G2	24-27	96
SP-C25P	SP-C28S	20	25	22	27.5	4B3.9-G1	24-27	40
SP-C28P	SP-C30S	22	27.5	24	30	4B3.9-G2	24-27	43
SP-C40P	SP-C44S	32	40	35	44	4BT3.9-G1	36-40	64
SP-C40P	SP-C44S	32	40	35	44	4BT3.9-G2	36-40	64
SP-C43P	SP-C48S	34	42.5	40	50	4BTA3.9-G2	50-55	72
SP-C50P	SP-C55S	40	50	44	55	4BTA3.9-G2	50-55	79
SP-C56P	SP-C62S	45	56	50	62	4BTA3.9-G2	50-55	89
SP-C60P	SP-C65S	48	60	52	65	4BTA3.9-G2(QC58)	58-64	94
SP-C65P	SP-C70S	52	65	56	70	4BTA3.9-G2(QC58)	58-64	101
SP-C73P	SP-C80S	58	72.5	64	80	4BTA3.9-G11	70-80	115
SP-C80P	SP-C85S	64	80	68	85	4BTA3.9-G11	70-80	123
SP-C85P	SP-C93S	68	85	74	92.5	4BTA3.9-G13	87-97	134
SP-C85P	SP-C93S	68	85	74	92.5	6BT5.9-G1	86-92	134
SP-C95P	SP-C105S	76	95	84	105	4BTA3.9-G13	87-97	152
SP-C94P	SP-C100S	75	94	80	100	6BT5.9-G1	86-92	144
SP-C100P	N.A	80	100	N.A	N.A	4BTA3.9-G13	87-97	144
SP-C100P	N.A	80	100	N.A	N.A	6BT5.9-G2	86-92	144
SP-C100P	SP-C110S	80	100	88	110	4BTAA3.9-G3	96-106	159
SP-C100P	SP-C110S	80	100	88	110	6BT5.9-G2(QC96)	96-106	159
SP-C115P	SP-C125S	92	115	100	125	6BTA5.9-G2	106-116	180
SP-C135P	SP-C143S	108	135	116	145	6BTAA5.9-G2	120-130	209
SP-C155P	SP-C170S	124	155	136	170	6BTAA5.9-G12	140-155	245
SP-C180P	SP-C200S	145	180	160	200	6CTA8.3-G1	163-180	289
SP-C180P	SP-C200S	145	180	160	200	6CTA8.3-G2	163-180	289
SP-C200P	SP-C215S	160	200	172	215	6CTAA8.3-G2	183-203	310
N.A.	SP-C250S	N.A.	N.A.	200	250	6CTAA8.3-G9	<231	361
SP-C225P	SP-C250S	180	225	200	250	6LTAA8.9-G2	220-240	361
SP-C250P	SP-C275S	200	250	220	275	6LTAA8.9-G3	230-250	397
SP-C275P	SP-C313S	220	275	250	313	6LTAA9.5-G3	250-280	452
SP-C313P	SP-C350S	250	312.5	280	350	6LTAA9.5-G1	290-320	505
SP-C350P	SP-C390S	280	350	310	390	6ZTAA13-G3	340-380	563
SP-C375P	SP-C413S	300	375	330	413	6ZTAA13-G3	340-380	596
SP-C388P	SP-C425S	310	388	340	425	6ZTAA13-G3	340-380	613
SP-C400P	SP-C438S	320	400	350	437.5	6ZTAA13-G2	390-415	631
SP-C425P	SP-C475S	340	425	380	475	6ZTAA13-G2	390-415	686
SP-C438P	SP-C475S	350	438	380	475	6ZTAA13-G4	400-415	686
SP-C438P	SP-C475S	350	438	380	475	QSZ13-G2	400-440	686
SP-C450P	SP-C500S	360	450	400	500	QSZ13-G5	411-470	722
SP-C475P	SP-C500S	380	475	400	500	QSZ13-G3	450-470	722
SP-C500P	SP-C550S	400	500	440	550	QSZ13-G10	463-509	794
SP-C250P	SP-C275S	200	250	220	275	NT855-GA	231-254	397
SP-C250P	SP-C275S	200	250	220	275	MTA11-G2	224-246	397
SP-C250P	SP-C275S	200	250	220	275	NTA855-G1	240-264	397
SP-C250P	SP-C275S	200	250	220	275	QSNT-G6	243-265	397
SP-C275P	SP-C313S	220	275	250	313	QSNT-G7	261-291	452
SP-C275P	SP-C313S	220	275	250	313	NTA855-G1A	261-291	452
SP-C313P	SP-C340S	250	313	272	340	MTAA11-G3	282-310	491
SP-C313P	SP-C350S	250	313	280	350	NTA855-G1B	283-321	505
SP-C313P	SP-C350S	250	313	280	350	QSNT-G1	291-325	505
SP-C345P	SP-C375S	275	345	300	375	NTA855-G2A	313-343	541
SP-C350P	SP-C390S	280	350	310	390	NTA855-G4	313-343	563
SP-C350P	SP-C390S	280	350	310	390	QSNT-G2	321-358	563
SP-C375P	SP-C400S	300	375	320	400	NTAA855-G7	343-377	577
SP-C400P	SP-C438S	320	400	350	437.5	QSNT-G3	358-392	631
N.A.	SP-C450S	N.A.	N.A.	360	450	NTAA855-G7A	<407	650
SP-C375P	SP-C412S	300	375	330	412	KTA19-G2	336-369	595
SP-C450P	SP-C500S	360	450	400	500	QSNT-G4X	407-448	722
SP-C450P	SP-C500S	360	450	400	500	KTA19-G3	403-448	722
SP-C450P	SP-C500S	360	450	400	500	QSK19-G14	402-447	722
SP-C500P	SP-C550S	400	500	440	550	KTA19-G3A	448-504	794
SP-C500P	SP-C550S	400	500	440	550	KTA19-G4	448-504	794
SP-C500P	SP-C550S	400	500	440	550	QSK19-G13	451-501	794
SP-C525P	SP-C600S	420	525	480	600	KTAA19-G5	470-555	866
N.A.	SP-C650S	N.A.	N.A.	520	650	KTA19-G8	<575	938
SP-C575P	SP-C650S	460	575	520	650	KTAA19-G6	520-570	938
SP-C575P	SP-C630S	460	575	504	630	QSK19-G12	503-565	909
SP-C588P	SP-C650S	470	588	520	650	QSK19-G6	520-592	938
SP-C600P	SP-C650S	480	600	520	650	KTAA19-G6A	<610	938
N.A.	SP-C687S	N.A.	N.A.	550	687	KTAA19-G6A	<610	992
N.A.	SP-C687S	N.A.	N.A.	550	687	KTAA19-G7	<610	992
SP-C650P	SP-C700S	520	650	560	700	QSK19-G4	574-634	1010
SP-C660P	SP-C725S	528	660	580	725	QSK19-G11	606-667	1046
SP-C660P	SP-C725S	528	660	580	725	QSK19-G11X	606-667	1046
SP-C625P	SP-C700S	500	625	560	700	KT38-G	560-615	1010
SP-C712P	SP-C787S	570	712	630	787	KTA38-G1	634-701	1136
SP-C725P	SP-C800S	580	725	640	800	KT38-GA	647-711	1155
SP-C750P	SP-C825S	600	750	660	825	KTA38-G2	664-731	1191
SP-C750P	SP-C825S	600	750	660	825	QSK38-G8	657-730	1191
SP-C800P	SP-C880S	640	800	704	880	KTA38-G2B	711-789	1270
SP-C800P	SP-C880S	640	800	704	880	QSK38-G7	705-783	1270
SP-C910P	SP-C1000S	728	910	800	1000	KTA38-G2A	813-895	1443
SP-C910P	SP-C1000S	728	910	800	1000	QSK38-G6	791-878	1443
SP-C940P	SP-C1025S	752	940	820	1025	KTA38-G5	880-970	1480
SP-C1000P	SP-C1100S	800	1000	880	1100	KTA38-G5	880-970	1588
SP-C1000P	SP-C1100S	800	1000	880	1100	QSK38-G1	876-970	1588
N.A.	SP-C1250S	N.A.	N.A.	1000	1250	KTA38-G9	<1089	1804
SP-C1135P	SP-C1250S	908	1135	1000	1250	QSK38-G2	989-1096	1804
SP-C1250P	SP-C1375S	1000	1250	1100	1375	QSK38-G5	1107-1224	1985
SP-C1250P	SP-C1375S	1000	1250	1100	1375	KTA50-G3	1097-1227	1985
SP-C1375P	SP-C1600S	1100	1375	1280	1600	KTA50-G8	1200-1429	2309
SP-C1375P	SP-C1500S	1100	1375	1200	1500	QSK38-G19	1212-1334	2165
SP-C1475P	SP-C1600S	1180	1475	1280	1600	KTA50-GS8	1287-1429	2309
SP-C1650P	SP-C1800S	1320	1650	1440	1800	KTA50-G15	1491-1656	2598

Sale promise:
SINOSTAR Power provides a full line of brand new and high quality products. Each and every unit is strictly Factory tested.
Warranty is according to our standard conditions:
a, 15 months, counted on the day SINOSTAR sold to the first buyer;
b, One year after installation;
c, 1000 running hours (accumulated); subject to the earlier one.
Service and parts are available from SINOSTAR Power or distributors in your location.
