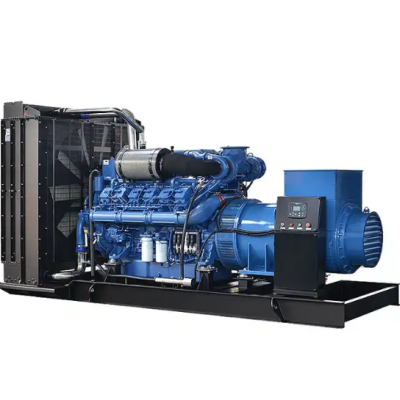

16kw 20kw 30kw 40kw 60kw 80kw 90kw 100kw Silent / Soundproof Yuchai Series Diesel Electric Power Generator

FOB Price

10000 - 10000 / Piece

1 Piece(Min.Order)

Supply Ability 100 Piece / Pieces per Month
Port FUZHOU
Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YUCHAI	Place of Origin	China
Model Number	SP-YC	Rated Current	500-3600A
Output Type	AC Three Phase	Speed	1500/1800RPM
Frequency	50/60HZ	Rated Voltage	380-440V
Rated Power	20kVA~2750kVA

Product Description

16kw 20kw 30kw 40kw 60kw 80kw 90kw 100kw Silent / Soundproof Yuchai Series Diesel Electric Power Generator

1.PRODUCT Feature
power OUTPUT 20KVA TO 2750KVA
Powered by YUCHAI water-cooled diesel engine
Alternator: MECCALTE,Leroy somer,Marathon,
AMF panel with ATS
Soundproof,weather proof,trailer type for optional
Manual of engine,alternator and control system
with two storage battery and silencer
Fuel tank for 8 H running based on frame
1 year or 1000 H guarantee

2-Techincal specifications(16-2200kw)

1500 rpm, 3-phase 4-wire, 230/400V, PF=0.8
Generator Set Model		Prime Power		Standby Power		Engine		Maximum current(A)
Prime	Standby	KW	KVA	KW	KVA	YUCHAI	Power(kw)	Maximum current(A)
SP-Y20P	SP-Y22S	16	20	17.6	22	4D24G4/A	18.5-20.4	32
SP-Y25P	SP-Y28S	20	25	22	27.5	4D24G2/A	23-25.4	40
SP-Y30P	SP-Y30S	24	30	24	30	4D24TG2/A	28-30.8	43
SP-Y38P	SP-Y41S	30	37.5	33	41	4D24TG0/A	36-39.6	59
SP-Y40P	SP-Y44S	32	40	35	44	YC4D60-D21	40-44	64
SP-Y43P	SP-Y48S	34	42.5	40	50	YC4D60-D21	40-44	72
SP-Y60P	SP-Y66S	48	60	52	66	YC4D90Z-D21	60-66	95
SP-Y73P	SP-Y80S	58	72.5	64	80	YC4A100Z-D20	70-73.5	115
SP-Y85P	SP-Y93S	68	85	74	92.5	YC4D120-D31	80-88	134
SP-Y100P	SP-Y110S	80	100	88	110	YC4A140L-D20	95-105	159
SP-Y113P	SP-Y125S	90	113	100	125	YC4D155-D31	103-113	180
SP-Y125P	SP-Y138S	100	125	110	137.5	YC4A180L-D20	120-132	198
SP-Y150P	SP-Y165S	120	150	132	165	YC6B205L-D20	138-152	238
SP-Y175P	SP-Y193S	140	175	154	192.5	YC6A245L-D21	165-181.5	278
SP-Y188P	SP-Y207S	150	188	165	207	YC6A245L-D21	165-181.5	299
SP-Y200P	SP-Y220S	160	200	176	220	YC6A275-D30	185-203	318
SP-Y250P	SP-Y275S	200	250	220	275	YC6MK350L-D20	235-238.5	397
SP-Y313P	SP-Y344S	250	313	275	344	YC6MK420L-D20	281-3.9	497
SP-Y350P	SP-Y385S	280	350	308	385	YC6MJ480L-D20	321-352	556
SP-Y375P	SP-Y413S	300	375	330	412.5	YC6K500-D31	335-370	595
SP-Y400P	SP-Y440S	320	400	352	440	YC6K520-D30	356-382	635
SP-Y450P	SP-Y500S	360	450	400	500	YC6K600-D30	401-441	722
SP-Y500P	SP-Y550S	400	500	440	550	YC6T660L-D20	441-485	794
SP-Y563P	SP-Y625S	450	563	500	625	YC6TD780-D31	520-572	902
SP-Y625P	SP-Y688S	500	625	550	688	YC6TD840-D31	561-616	993
SP-Y688P	SP-Y750S	550	688	600	750	YC6TD900-D31	605-665	1083
SP-Y750P	SP-Y825S	600	750	660	825	YC6TD1000-D30	668-735	1191
SP-Y913P	SP-Y1000S	730	913	800	1000	YC6C1220-D31	815-819	1443
SP-Y1000P	SP-Y1100S	800	1000	880	1100	YC6C1320-D31	880-968	1588
SP-Y1125P	SP-Y1250S	900	1125	1000	1250	YC6C1520-D31	1016-1118	1804
SP-Y1250P	SP-Y1375S	1000	1250	1100	1375	YC6C1660-D30	1110-1221	1985
SP-Y1250P	SP-Y1375S	1000	1250	1100	1375	YC12VTD1680-D30	1120-1230	1985
SP-Y1375P	SP-Y1500S	1100	1375	1200	1500	YC12VTD1830-D30	1220-1342	2165
SP-Y1500P	SP-Y1650S	1200	1550	1320	1650	YC12VTD2000-D30	1345-1480	2382
SP-Y1650P	SP-Y1770S	1320	1650	1416	1770	YC12VC2270-D31	1520-1670	2555
SP-Y1900P	SP-Y2000S	1520	1900	1600	2000	YC12VC2510-D31	1680-1850	2887
SP-Y2000P	SP-Y2200S	1600	2000	1760	2200	YC12VC2700-D31	1805-1985	3176
SP-Y2200P	SP-Y2360S	1760	2200	1888	2360	YC16VC3000-D31	2005-2206	3406
SP-Y2500P	SP-Y2700S	2000	2500	2160	2700	YC16VC3300-D31	2205-2426	3897
SP-Y2750P	SP-Y2900S	2200	2750	2333	2916	YC16VC3600-D31	2405-2646	4209

Warranty is according to our standard conditions: 12 months or 1,000 running hours, subject to the earlier
one.Service and parts are available from distributors in your location.
