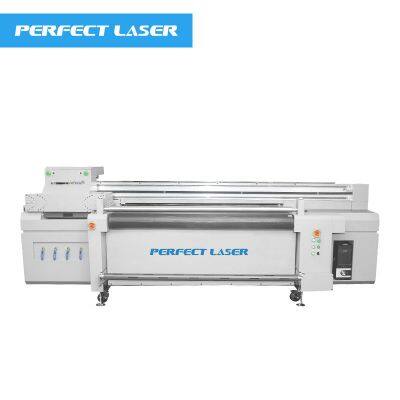

1800mm width G5 head UV Hybrid Roll To Roll & Flatbed Printer

Features:

1. One hybrid uv printer with dual-usages

a. This uv printer roll to roll can printing both hard flatbed sheet and soft roll-to-roll materials.

b. The roll to roll printing function of this hybrid uv printer adopts constant tension control system to ensure stable and reliable stepping accuracy.

c. The rigid plate printing of this uv roll to roll printer uses a positioning device to make the installation of print sheet more precise.

d. The belt correction system of this uv printer roll to roll, ensures the guides always runs in the same position. It can operate 24 hours continuously without any downtime.

2. Multi-function

a. This hybrid uv printer adopts constant pressure adsorption platform control technology, can effectively prevent material shaking.

b. The uv roll to roll printer has material height automatic measurement function.

c. It has anti-collision function.

d. The ink cartridge adopts double negative pressure system, white ink / color ink independent control, to make sure the hybrid uv printer works constantly.

e. It adopts multiple emergency switches to ensure user and equipment safety.

3. More practical functions

a. The uv printer roll to roll has an automatic blank-parts-jump printing function, can automatically recognize and avoid blank parts in the screen, significantly improving the working efficiency.

b. The irradiation power of two UV lamps can be set, and the two-way printing can be automatically rotated according to the round-trip direction. It can effectively reduce the PASS channels.

c. It has powerful printing nozzle compensation function, any normal nozzle can replace the faulty nozzle to ensure no white or PASS channel problems.

d. The uv roll to roll printer adopts intelligent and user-friendly RIP software, different screens can be output after over-lapping, which greatly facilitates the daily proofing and color correction work and the drawing efficiency is greatly improved.

e. The optional software template printing technology of this uv printer roll to roll solves the error problem of splicing, the splicing error is less than 0.5mm.
