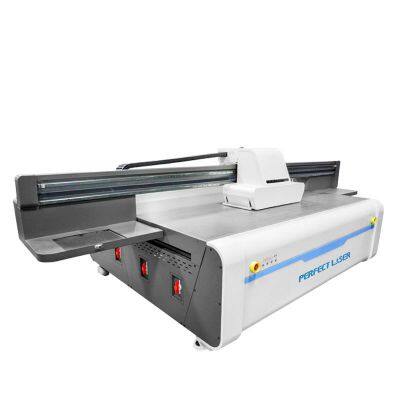

1300x2500mm Automatic Large Format UV Flatbed Printer for Glass Aluminum Plastic Wood

Maximum output size

2500mm*1300mm

Print head type

Ricoh Industrie nozzle

Ricoh Industrie nozzle

Droplet size

3.5pl

Ink Type

Thermal transfer ink, eco solvent ink

aqueous ink, sublimation ink, UV ink

Material Type

Print color

Precision smart dual four-color(CMYK), dual eight-color / eight-color (optional white ink scheme)

C/M/Y/K/W/LC/LM

Maximum media thickness

100mm

Bearing weight

Max 200KG

Printing accuracy

2880*1440dpi(32 PASS),1440*1440dpi

360dpi*360dpi,

720dpi

(16PASS),1440*720dpi

360dpi*720dpi,

(8PASS),720*720dpi(4 PASS),720*360dpi

720dpi*360dpi,

(2PASS)

720dpi*720dpi,

720dpi*1440dpi,

1440dpi*1440dpi

Lift function

Smart ink car lift,electronic automatic / manual smart sensors detect height adjustment

Image Format

TIFF(RGB & CMYK),BMP,PDF,EPS,JPEG

Ink system

1000ml*8 colors

NO. of print heads

2

3~4

8

Print speed

4 PASS 8M2/hr

Standard Mode：up to 36 m2/h（4+2print head speed）

4pass 720*900dpi @ 20sqm/h

8 PASS 4M2/hr

High-precision mode:up to 24 m2/h（4+2 print head speed）

4pass 32m2/h

12 PASS 3.7M2/hr

Ultra-high precision：up to 17m2/h（4+2 print head speed）

6pass 20m2/h

16 PASS 2.5M2/hr

8pass 15m2/h

Power Requirements

50Hz/60Hz,110/220VAC(±10%),1.5KW

Interface

high speed USB

Operating system

MS Window 98/Me/2000/XP/Win7

Operating system WindowsXP Home Edition or Professional Edition

Operation condition

Temperature 15℃~35℃，Reative humidity 20%~80%

Print Workflow

RIP after printing

RIP printing

Cleaning System

Automatic cleaning system

Software

Maintop/Photoprint

/Wasatch

RAM

2G

Hard disk

80G 250G

Physical dimension

2000*3640*1260mm

3750*2100*1350mm

Package Size

2100*3750*1350mm

3950*2150*140mm

Curing lamp

Germany Osram LED light

RIP software

USA PP PHOTOPRINT

X axle rail brand and model

Taiwan HIWIN mute linear guide rail

X shaft belt

Japan Fujifilm industrial wire belt

X axis /Y axis servo motor

Taiwan Delta

X axis beam

Two times tempered high strength steel, high hardness, no deformation

X/Y axis print towline and wire harness

Germany IGUS

Y shaft drive screw

Imported grinding rod

Ink car lift rail brand

Taiwan HIWIN mute linear guide rail

Platform type and accuracy

Glass platform

Solvent capacity and liquid level alarm of main ink box

1L capacity, including liquid level alarm

Filtration and brand

Cobetter

Negative pressure control mode

Double negative color control

Negative pressure meter brand and model

Japan Fujifilm

Electrical switch brand

Japan Omron

Ink pipe

France Saint-Gobain

X/Y/Z axis master control driver

X/Y/Z three axis servo drive, delta exclusive research and development

Sprinkler board control

National exclusive network card, 3 cable transmission, easy to upgrade

Ink circulation system

White ink circulation, white ink mixing to prevent plugging

Frame structure

All steel one-piece frame, non welded or locked aluminum frame
