Home > Products > laser marker > 10W Water cooling UV laser engraver with CCD camera auto positioning and conveyor

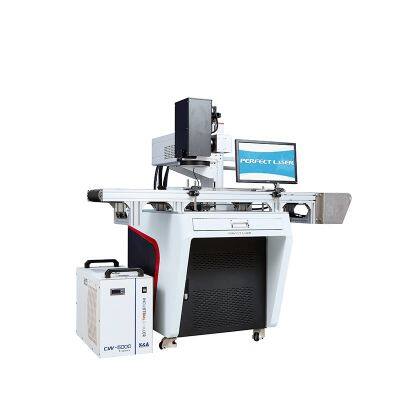

10W Water cooling UV laser engraver with CCD camera auto positioning and conveyor
- 1000 Set / Sets per Month
- SHANGHAI
- T/T
- 20 days
You May Like
-
CCD camera auto positioning 30w Floor type Metal fiber laser engraver with computer and table
-
safety closed CCD camera auto positioning 30w Floor type Metal fiber laser engraver with computer and table
-
30W Wood Leather Nonmetallic Material Mini Desktop Co2 Laser Marking Machine
-
30W Wood Paper Glass plastic Desktop Co2 Laser engraving Machine
-
30W Wood Paper Glass plastic Floor type Co2 Laser engraving Machine
-
Drink Water plastic bottle 30w co2 laser date coding printing machine
Product Details
| Brand Name | Perfect Laser | Place of Origin | China | |
| Model Number | PE-UV-1 | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas | Condition | New | |
| Power(W) | 10W | Graphic Format Supported | AI, DXF, PLT | |
| Control Software | EZCAD | Cooling Mode | Water Cooling | |
| CNC or Not | Yes | Laser Type | Fiber Laser |
Product Description
Features:
1. The industrial UV laser marking machine adopts 355nm pumped UV laser device as the light source, with small focusing laser spot, which can reduce the mechanical deformation of the material, with small processing heat effect.
2. Adopts a CCD camera auto vision positioning system, the objects to be marked can be placed anywhere on the conveyor belt working table, the CCD camera can automatically identify and marking, suitable for mass production and pipeline working.
3. The scanning area is large (175x175mm) and has no error.
4. It can mark easily without any positioning fixture, which greatly saves time and material cost.
5. Equipped with a conveyor belt for automatic batch marking, it has fast marking speed and high efficiency.
6. The marking area is as large as 175mm×175mm, which can meet the size requirements of precision devices.
7. Adopt high-quality water chiller CW-5000 with air-refrigerator function, it has good heat dissipation effect and higher efficiency.
8. Support AI, BMP, DST, DWG, DXF, DXP, LAS, PLT and other image formats.
9. The software both supports win 7 and win 10 systems.
Technical Data
Product name | CCD Camera Automatic Visual Positioning System Industrial UV Laser Marking Engraving Machine |
Model | PEDB-UV-1 |
Laser type | UV |
laser wave length | 355nm |
Marking format | 175mm×175mm |
Camera pixel | 5 million |
Camera brand | HIKVISION |
Camera positioning accuracy | 0.1mm |
Camera software environment | Computer system is suitable for win7, win10 |
Dongle | 1 visual positioning software dongle |
Marking object placement requirements | Any angle |
Power supply | 220V/50-60Hz |
Support graphic formats | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT,etc |
Life of the laser machine | ﹥100,000 hours |
Cooling system | Water cooling |
