Home > Products > construction > Shantui Janeoo Mobile Concrete Mixing Station HZS075-3Y
Shantui Janeoo Mobile Concrete Mixing Station HZS075-3Y
- qingdao tianjin
- T/T L/C
- 100 days
You May Like
-
Shantui Janeoo Machinery Self-feeding Concrete Mixer Truck 3m3
-
Shantui Janeoo Machinery Self-loading Concrete Mixer Truck
-
Concrete Batching Plant HZS180-5L With Capacity 180m3/h
-
SHANTUI Concrete Pump Truck 25m-70m
-
JS500 DOUBLE HORIZONTAL SHAFTS FORCED CONCRETE MIXER
-
SHANTUI JANEOO Concrete Drag Pump HBT6013SR
Product Details
| Brand Name | SHANTUI JANEOO | Place of Origin | China | |
| Model Number | HZS075-3Y |
Product Description

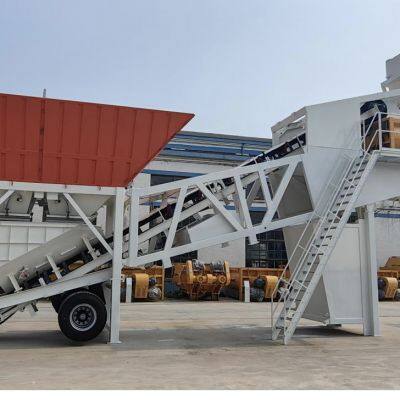

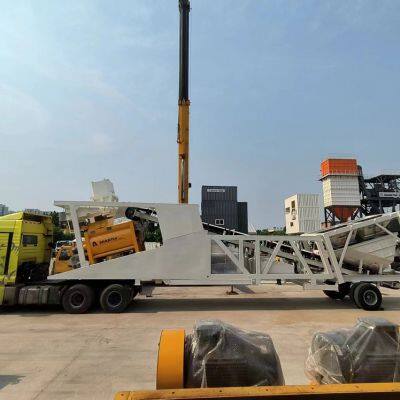

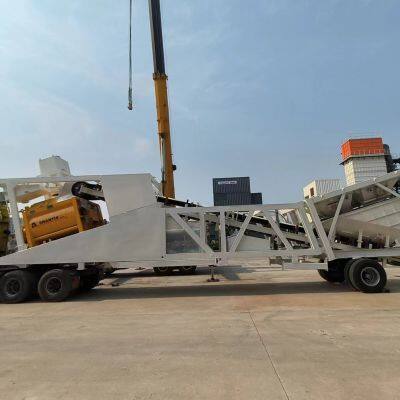

HZS075-3Y concrete batching plant, equipped with JS1500 twin shafts mixer and belt type aggregates charging system, has rated output 75m3/h compacted concrete. It can mix various kinds of concrete and is suitable for small and medium sized construction projects.
Modular design subserves container transportation. With rear axle installed, the concrete batching plant can be integrally towed by tractor.
The plant is fully automatic controlled by computer with production management and data printing software.
Model | HZS075-3Y |
Max theory Capacity (m3/h) | 75 |
Mixer | JS1500 |
Aggregate Max. Dia (pebble/crushed) | 80/60mm |
Discharge height (m) | 4 |
Charge height (m) | 5.4 |
Aggregate measuring accuracy (%) | ±2 |
Water measuring accuracy (%) | ±1 |
Power of supply (kW) ( without cement silo and screw conveyor) | 91 |
Power voltage (V) /frequency (Hz) | AC 380/50 |
Total weight(t) about ( without cement silo and screw conveyor) | 28.5 |
(m)Area covered (m) LxW | 17x17 |
