Home > Products > construction > SHANTUI JANEOO MOBILE CONCRETE MIXING PLANT HZS050-3Y
SHANTUI JANEOO MOBILE CONCRETE MIXING PLANT HZS050-3Y
- qingdao
- T/T L/C
- 15 days
You May Like
-
SHANTUI JANEOO STATIONARY ASPHALT BATCHING PLANT LB2000
-
SHANTUI JANEOO Concrete Electric Truck Mixer
-
SHANTUI JANEOO Field-Mix Concrete Batching Plant HZS50-2H
-
Main Technical Parameters of 30m Concrete Pump Truck
-
SHANTUI JANEOO Sand Making Building ZSG120-5T
-
SHANTUI JANEOO Mixer Planetary Reducer M309R2A
Product Details
| Brand Name | JANEOO | Place of Origin | China | |
| Model Number | HZS050-3Y | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | ISO CCC | Weight | 28.2T | |
| Power Type | Electric | Condition | New | |
| Power(W) | 68W |
Product Description

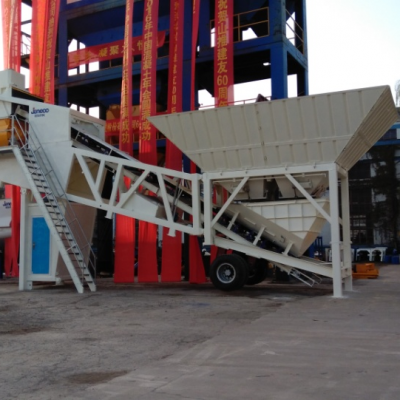

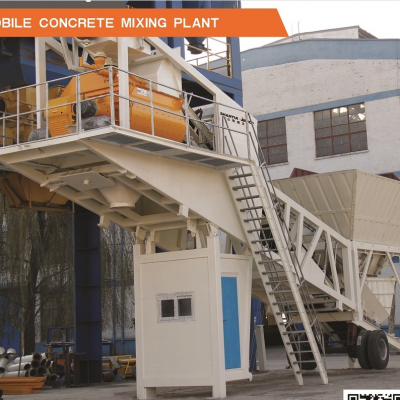

HZS050Y concrete batching plant, equipped with JS1000 twin shafts mixer and belt type aggregates charging system, has rated output 50m3/h compacted concrete. It can mix various kinds of concrete and is suitable for small and medium sized construction projects.
Modular design subserves container transportation. With rear axle installed, the concrete batching plant can be integrally towed by tractor.
The plant is fully automatic controlled by computer with production management and data printing software.
Model | HZS050-3Y |
Max theory Capacity (m3/h) | 50 |
Mixer | JS1000 |
Storage hopper capacity (m3) | 4×8 |
Aggregate Max. Dia (pebble/crushed) | 80/60mm |
Discharge height (m) | 4 |
Charge height (m) | 5.4 |
Aggregate measuring accuracy (%) | ±2 |
Cement measuring accuracy (%) | ±1 |
Water measuring accuracy (%) | ±1 |
Additive measuring accuracy (%) | ±1 |
()Power of supply (kW) ( without cement silo and screw conveyor) | 68 |
Power voltage (V) /frequency (Hz) | AC 380/50 |
)Total weight(t) about ( without cement silo and screw conveyor) | 28.2 |
