Home > Products > Precision bearing > XU120222 crossed roller bearing without gear teeth XU slewing ring in stock
XU120222 crossed roller bearing without gear teeth XU slewing ring in stock
CHF 130 - 130
/ Set
1 Set(Min.Order)
- T/T Credit Card
You May Like
-
Slew bearing ring precision bearing crossed roller bearings
-
LYHGB China Factory wholesale high quality and precision RU228 slew bearing
-
China hot sale slewing ring bearing without gear
-
Durable Spare Parts Swing Circle Bearing Swing Bearing
-
China Factory wholesale high quality and precision RU85 crossed roller bearing
-
Factory new product slewing ring bearing RU85
Product Description
Product Overview
CRBH10020AUU Crossed Roller Bearing 100*150*20mm High Rigidity Cross Roller Ring CRBH10020 Thin Section Precision Slewing Ring
Model: CRBH10020A/CRBH10020AUU
Inner ring (d): 100mm
Outer ring (D): 150mm
Width (B): 20mm
Weight: 1.45kg
Structure: thin section
crossed roller bearing, with integrated inner and outer ring Mounting
crossed roller bearing, with integrated inner and outer ring Mounting
Dimension: da: 110mm Da: 140mm
Materials: Bearing
steel:(GCr15/52100/SUJ2)
Precision grade: P5 (P4 available upon request)
Lubrication type: Grease
lubrication Lubrication hole: Yes
Load direction: axial, radial and tilting moment.
Features of CRBH7013AUU Crossed Roller Bearing
1. High Rigidity Both inner and outer ring of CRBH7013AUU bearing is solid one-piece, which can provide high stiffness. Besides,mounting errors can be eliminated so high accuracy is achieved.
2. Smooth Rotation Rollers on the raceway are separated with each other by space retainers, which can keep rollers always in the right position and prevent bearings stuck, provide a stable
rotation torque.
rotation torque.
3. Thin Section For Limited Space CRBH7013 cross roller ring and CRBH series cross roller rings are slim type,
with thin cross-section. Besides, one single bearing can accommodate combined loads. So it's suited for limited space, can simplify the design of the mechanism and reduce the total weight.
with thin cross-section. Besides, one single bearing can accommodate combined loads. So it's suited for limited space, can simplify the design of the mechanism and reduce the total weight.

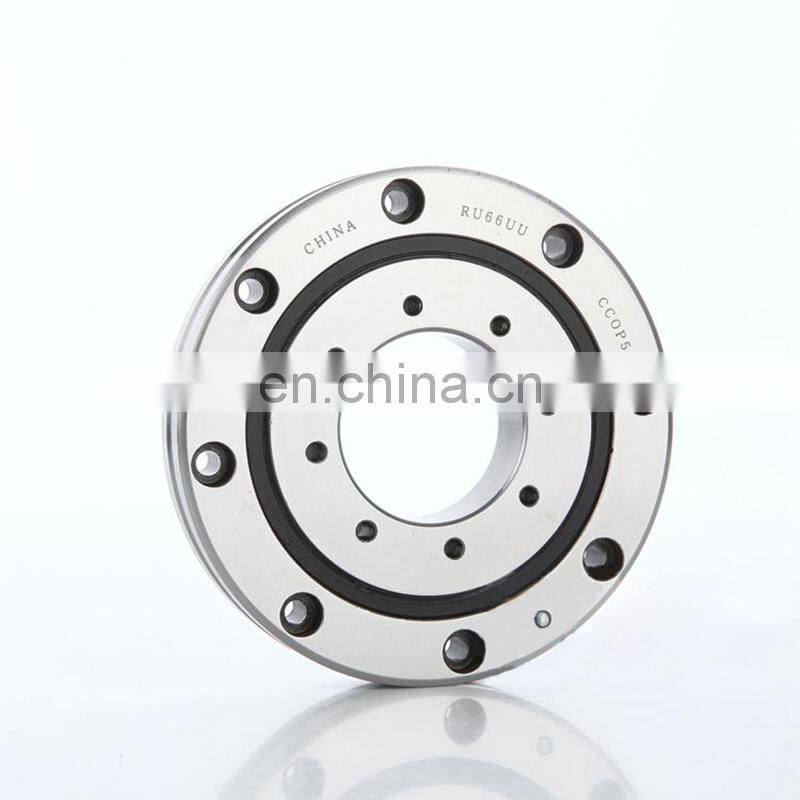

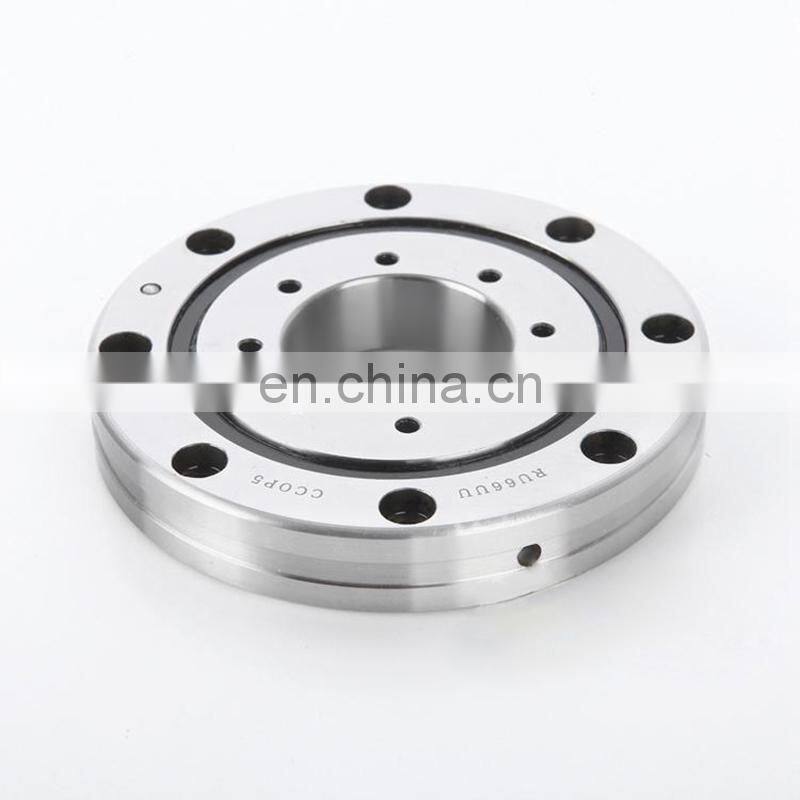

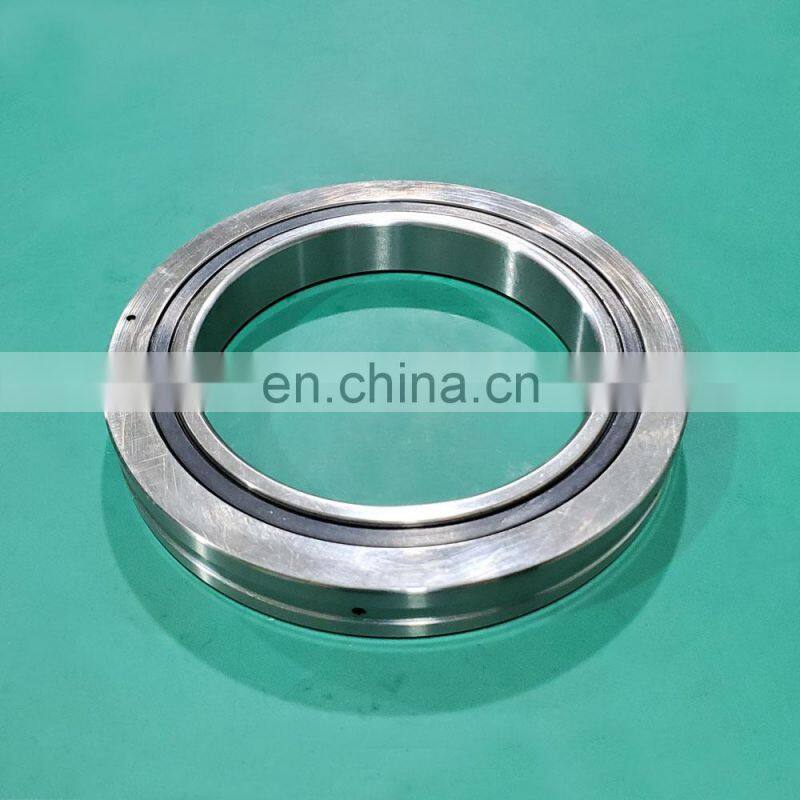

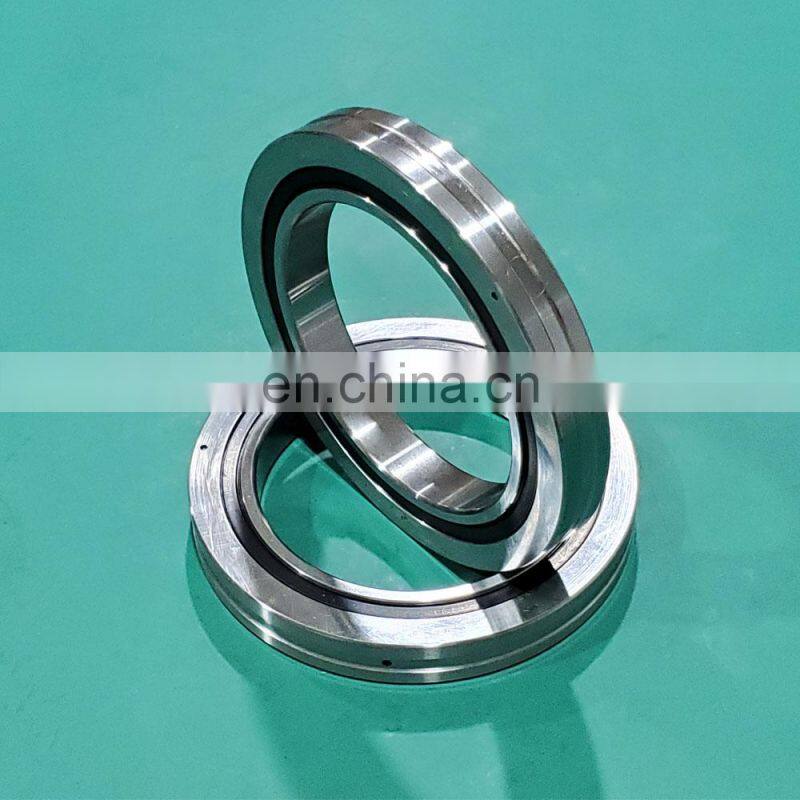

Details Images
Contact us
Contact person:daisy shang
Email address:daisy@hgb-bearing.com
WhatsApp/Wechat:+8618603790073
FAQ
1.Q: Are you trading company or manufacturer ?
A: We are professional slewing bearing manufacturer with 20 years' experience.
2.Q: How long is your delivery time?
A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not in
stock, Also it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, it is extra.
4.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
5.Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce the slewing bearings for different working conditions.
6.Q: How about your guarantee?
A: We provide lifelong after-sales technical service
A: We are professional slewing bearing manufacturer with 20 years' experience.
2.Q: How long is your delivery time?
A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not in
stock, Also it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, it is extra.
4.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
5.Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce the slewing bearings for different working conditions.
6.Q: How about your guarantee?
A: We provide lifelong after-sales technical service
