Favorable Price XSU080168 High Precision Cross Roller Bearing

FOB Price

Negotiable / Set

1 Set(Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Why Choose Us

Product Description

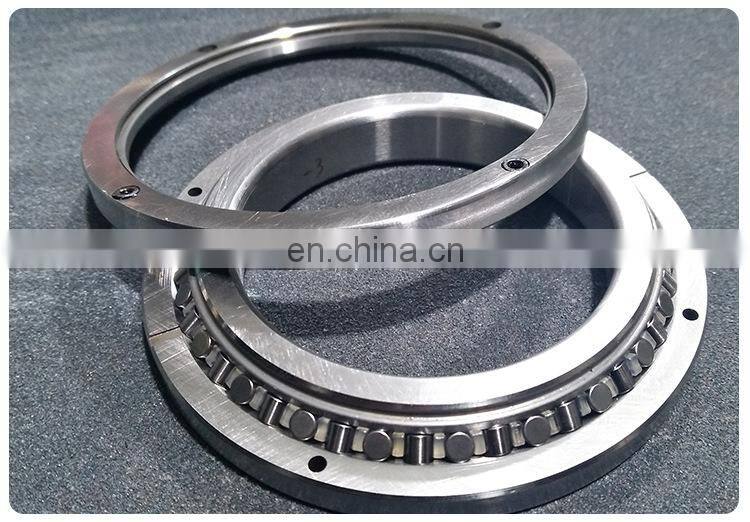

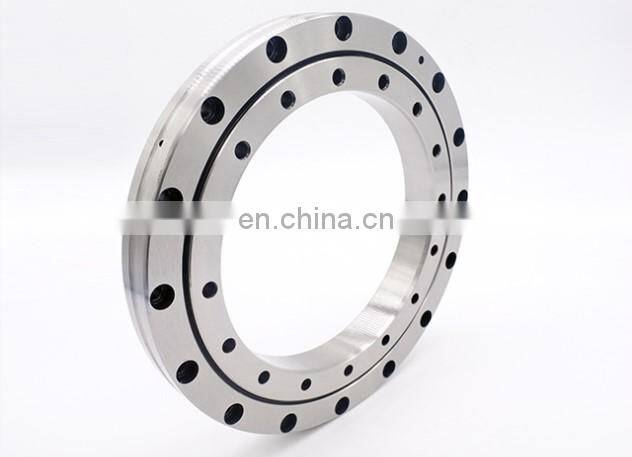

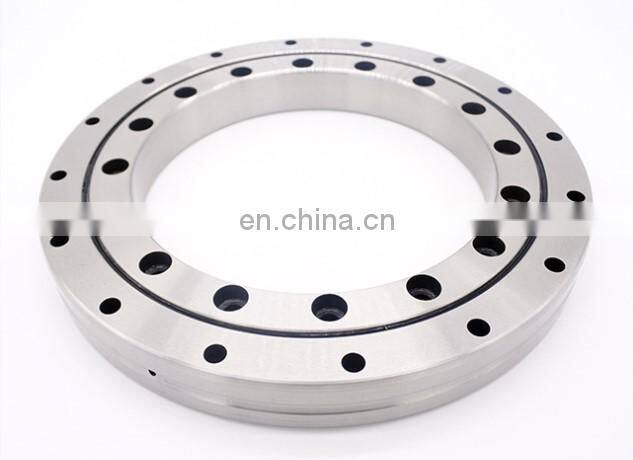

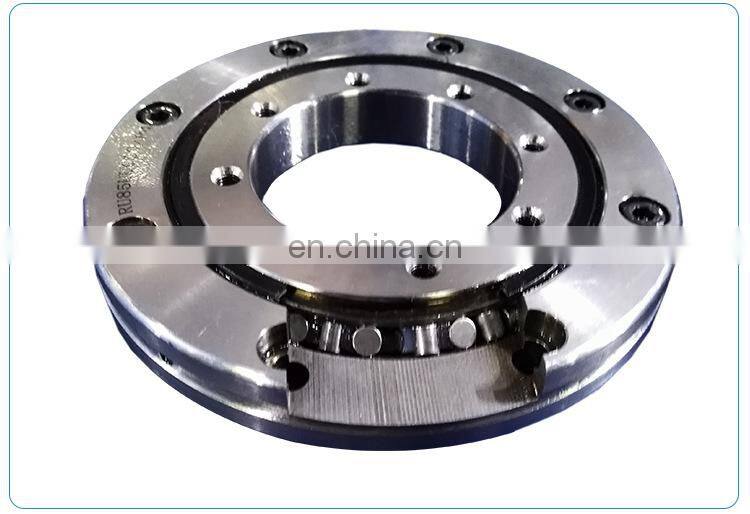

XSU type crossed roller bearings (inner and outer ring integrated type) have been processed for mounting holes, so there is no need for a fixed flange and support seat. In addition, due to the integrated inner and outer ring structure with a seat, installation has almost no effect on performance, so stable rotation accuracy and torque can be obtained. Can be used for outer ring and inner ring rotation. Structural features: Crossed roller bearings are cylindrical rollers arranged perpendicular to each other on the 90-degree V-groove rolling surface through spacers, so the crossed roller bearings can bear radial load, axial load and moment load Wait for loads in multiple directions. The size of the inner and outer rings is miniaturized, and the ultra-thin form is even closer to the limit of small size, and has high rigidity, and the accuracy can reach P5, P4, P2. Application fields: Therefore, it is suitable for the joints and rotating parts of industrial robots, the rotating tables of machining centers, precision rotating tables, medical machines, calculators, IC manufacturing equipment and other equipment.

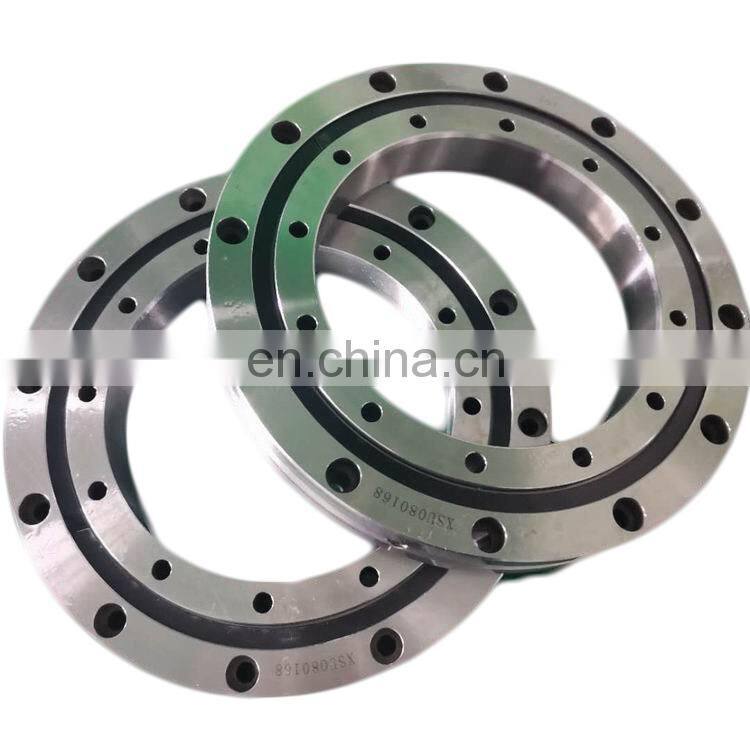

Model	XSU080168
Inner ring dia	130mm
Outer ring dia	205mm
Width	25.4mm
Mounting holes	12
chamfer r	1.1
Basic Loading rating (axial)	Ca66kn, Coa 240kn
Basic Loading rating (radial)	Cr42kn, Cor96kn
Limiting Speed (r/min)	227
KGS	3.3KGS

Product Details

More Products

About Us

Wide production workshop and strong production team as a support,ensure the products can be produced by required quality and quantity. andThereby increase the customer benefits.

The above is our production equipment with advanced technology , the stable and longevity bearing produce from these equipment .

We specialize in the production of manufacturing slewing ring bearings or turntable Bearings.The Independent R&D and sales team in HGB , also do our best for special needs;We offer high-precision and high-quality slewing bearings, which are widly used in many fields,such as hoisting and conveying machinery, construction engineering machinery, harbour machinery, wind power generation, radar and missile launchers and so on.

Certificate

FAQ

1.Q: Are you trading company or manufacturer ?
A: We are professional slewing bearing manufacturer with 20 years' experience.
2.Q: How long is your delivery time?
A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not in

stock, Also it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, it is extra.
4.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
5.Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce the slewing bearings for different working conditions.
6.Q: How about your guarantee?
A: We provide lifelong after-sales technical service.
