Harmonic Reducer Bearing CSG(CSF)-25 Cross Roller Bearing
- T/T Credit Card
You May Like
-
YRT50 Rotary Table Bearing Turn Table Bearing Used in Measuring Instruments
-
XSU140414 Machine Center Swivelling Table High Precision Cross Roller Bearing 344*484*56mm
-
RU228 RU228X High Precision Cross Roller Bearing for Robot Arm
-
Slewing Ring Bearings for Bucket Wheel Stackers and Reclaimers Roller Bearing
-
Rotatable Gear Slewing Bearing Mechanical Arm RU85UUCC0P5 Roller Bearing
-
RA5008 XRA5008 CRBS508 UU CC0 P5 Ultra Thin Cross Roller Bearing
Product Description
1.
Harmonic drive is a special power transmission, has the advantages of transmission mode incomparable, large gear ratios (50:1---200:1), high precision, large load capacity, high efficiency, small volume, light weight and so, is widely used in space technology, electronic industry, industrial robots, packaging machinery, printing machinery, medical instruments and other fields. We generally call that harmonic reducer. As the most important parts of harmonic drive, cross roller bearings has been rapid developed in china. Harmonic reducer with high precision, high transmission ratio, high rigidity is widely used in industrial automation and robot arm, cross roller bearings CSF, CSG,SHG series, especially designed for CSF harmonic reducer, with many precision holes which can be connected with machines directly. The bearings have the advantages of compact structure, good sealing, strong carrying capacity and high rigidity.
2.
Harmonic drive cross roller bearings have many mounting holes use GCr15 bearing steel, the outer ring adopted integral heating quenching, the raceway surface use high frequency quenching process. For harmonic reducer bearings, compared with ordinary cross roller bearings, is very different in shape, structure and processing technology, more suitable for the needs of customers, have great market prospects
3.
Harmonic reducer bearing is widely used in industrial automation and robotic arm because of its high precision, high rigidity and high transmission ratio. crossed roller bearing SHF(SHG) is specially designed for SHF(SHG) harmonic reducer. Both inner ring and outer ring contain multilayers of precision holes for connecting with working parts.Harmonic Reducer Bearing SHF(SHG) Series is characterized by high precision, compact structure, good sealing effect, high loading capacity and high rigidity.

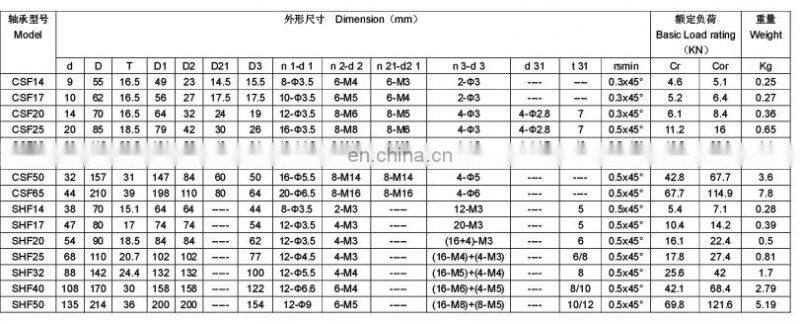

4.Models:
SHF(SHG)-14/ SHF(SHG)-17/ SHF(SHG)-20/ SHF(SHG)-25
SHF(SHG)-32/SHF(SHG)-40/ SHF(SHG)-50
1.custom-made according to the requirements
2.The required bearing inner ring, outer ring, height, and other detailed data can communicate with our engineers directly.
1.Q: Are you trading company or manufacturer ?
A: We are professional bearing manufacturer with 20 years’ experience.
2.Q: How long is your delivery time?
A: A: Generally it is 4-5 days if the goods are in stock. or it is 45 days if the goods are not in stock, Also it is according to quantity.
3.Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, it is extra
4.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment
5.Q: Can you provide special customization according to the working conditions?
A: Sure, we can design and produce the slewing bearings for different working conditions
6.Q: How about your guarantee?
A: We provide lifelong after-sales technical service
7. Q:Which Certificate your factory have ?
A: We have BV, ABS, DNV, ISO9001 certificate.
