Professional Thermal Conductive Pad for LED TV and LED-lit Lamps
- 10000 Piece / Pieces per Month
- Dongguan
- T/T
- 3 days
You May Like
-
China Wholesaler Street Lights Thermal Conductive Pad For LED Street Lamp
-
Outstanding Thermal Performance Conductive Pads for DVD-Rom Cooling
-
High Durability Ultra Soft Thermal Interface Materials For Automotive Electronics?
-
High Performance Silicone Cooling Pad with Dual Self-Adhesive Films for PC Laptop RAM
-
Thermal Silicone Insulation Pad For GPU CPU Cooling Pad Low Thermal Resistance
-
7W/mK Wholesale Customized Thermal Conductive Silicone Insulation Pad
Product Details
| Brand Name | ziitek | Place of Origin | China | |
| Model Number | TIF140N-50-10F | Material | Other, elastomer | |
| Type | Insulation Film | Application | High Temperature | |
| Rated Voltage | high voltage | Tensile Strength | good |
Product Description

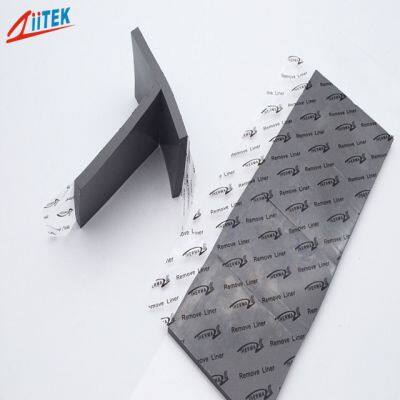

Professional Thermal Conductive Pad for LED TV and LED-lit Lamps
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Ziitek TIF140N-50-10F is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling
<Easy release construction
<Electrically isolating
<High durability
<AD-DC Power Adapters <Rainproof LED Power <Waterproof LED Power <SMD LED module <LED Flesible strip, LED bar
Typical Properties of TIF140N-50-10F | |||
| Product Name | TIF140N-50-10F Series | ||
| Colour | Gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity | 2.1 g/cm^3 | ||
| Thickness | 1.0mmT | ||
| Hardness | 55±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.7 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 5.0W/mK | ||
| Flame Rating | 94-V0 | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces)：5000
Est. Time(days)： To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Q:Do big buyers have promotional prices?
A: Yes, if you are a big buyer in a certain area, Ziitek will provide you with promotional prices, which will help you start your business here. Buyers with long-term cooperation will have better prices.
