Home > Products > Thermal Graphite Sheet > Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets
Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets
- 10000000 Piece / Pieces per Month
- SHENZHEN
- T/T
- 3 days
You May Like
-
Thermal Management Materials 3.0W Silicone Head Sink Thermal pad for Electric Parts Heat Transfer
-
Insulation Silicone Thermal Pad Conductive Gap Filler Cooling Thermal Pad For Ev Battery
-
Thermal Conductive Graphite Sheet For Mobile Phone
-
Double Sided Thermal Conductive Tape for LED Light Integrated Circuit Packaging and Battery Management
-
Wholesale Customized 3.0W Thermal Conductive Silicone Free Gap Filler Pad for Battery Pack Application
-
TIF100-25-02F Ultra-Soft Silicone Thermal Conductive Pad for GPS Navigation And Other Portable Devices
Product Details
Brand Name | ZIITEK | Place of Origin | China | |
Model Number | TIR300 Series | Thickness | 0.012mm | |
Grade | Industrial Grade | Type | Flexible Sheet | |
Application | smart phone | C Content (%) | 99 |
Product Description

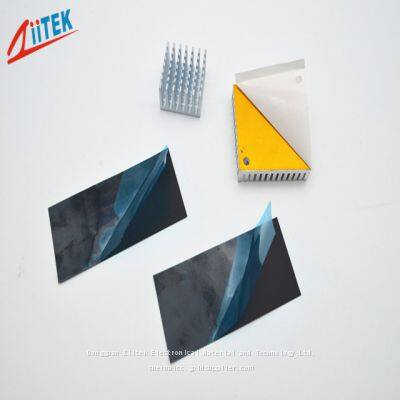

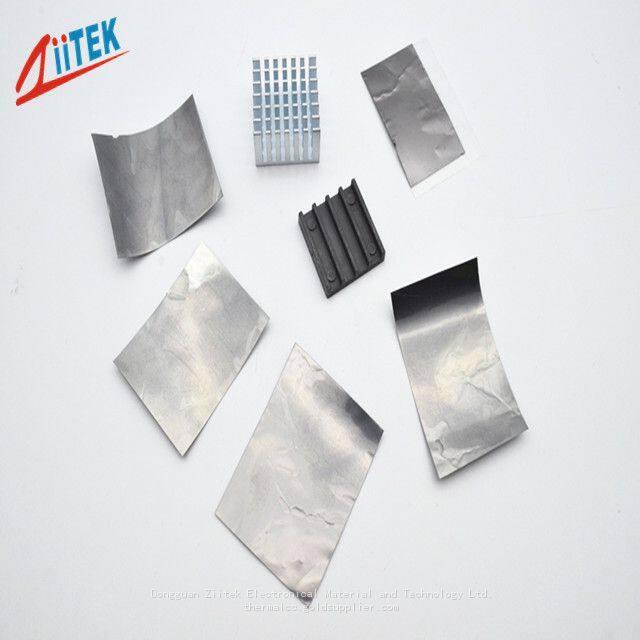

Ultra Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets
TIR?300 Series products are high performance thermal conductive interface materials. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus maximizes the ability of heat conduction.
Feature
》Good thermal conductive: 1700 W/mK
》Easy to assemble
》Ultra-thin type
》RoHS Compliant
Application
》PDP,LCD TV,Set top box
》Laptop,Notebook,Projector
》Mobile phone,Hand‐held devices
》Automotive electronics
Typical Properties of TIR300 series | ||||||
Product Name | TIR312 | TIR317 | TIR325 | TIR332 | TIR340 | Test Method |
Colour | Black | |||||
Material | Synthetic graphite | |||||
Thickness | 0.012 mm | 0.012 mm | 0.012 mm | 0.012 mm | 0.012 mm | ASTM D751 |
Total Thickness | +/- 10% | +/- 10% | +/- 10% | +/- 10% | +/- 10% | ASTM D751 |
Density | 1.9 g/cc | 2.0 g/cc | 1.8 g/cc | 1.9 g/cc | 1.8 g/cc | ASTM D297 |
Hardness | 85 Shore A | ASTM D2240 | ||||
Operation Temperature | -40℃~ 400℃ | ****** | ||||
Volume Resistivity | 3.2X103 Ohm-meter | ASTM D257 | ||||
Typical Thermal Conductivit (In Z axis) | 4.2W/m-K | 5.0W/m-K | 6.0W/m-K | 8.0W/m-K | 12 W/m-K | ASTM D5470 |
Typical Thermal Conductivity (In X-Y axis) | 1600 W/m-K | 1700W/m-K | 1500W/m-K | 1400W/m-K | 1200W/m-K | ****** |
Thermal Resistance @100psi | 0.028 (in2℃/W) | 0.030 (in2℃/W) | 0.035 (in2℃/W) | 0.045 (in2℃/W) | 0.060 (in2℃/W) | ASTM D5 |
Standard Sheets Sizes :
1. 185mm x 220mm 2. 195mm x 240mm 3. 220mm x 320mm

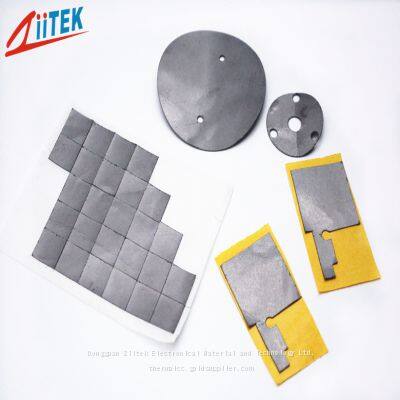

TIR? 300 series Individual die cut shapes can be supplied.
Consult the factory alternate thickness.

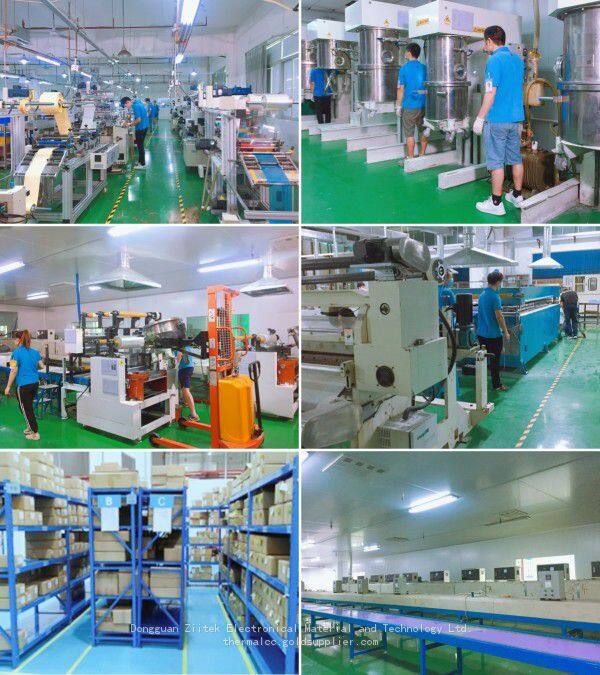

Company profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
