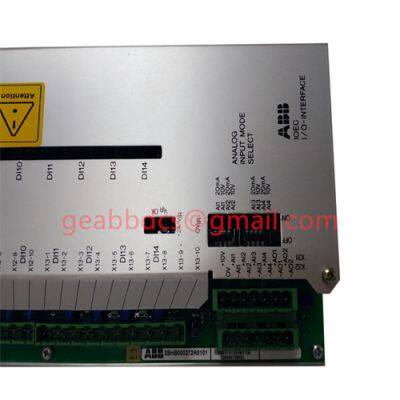

3BHB000272R0101 Control board

3BHB000272R0101 Control board

Product Introduction

The Ci-rf110/120 series products can functionally replace products such as the S908 Remote IO optical module 490NRP954, NWFR89D200, 140NRP95400, and others that come with Kunteng PLC. The s908 RIO data optical transceiver achieves the conversion of electrical signals and fiber optic signals from the s908 RIO remote bus. It is an industrial optical transceiver with high protection level. Through EMC electromagnetic compatibility testing, it has a beautiful appearance and can be safely applied in industrial applications. This product has been applied in the coal preparation screening automatic control system of Jizhong Energy Group Company, the control system of Panzhihua Baima Iron Mine Mining and Selection Project, Datang Lue Electric Auxiliary Network, Kunming Iron and Steel Coal Handling System, Nanjing Iron and Steel Sintering Cost Reduction Transformation, Jilin Second Power Plant, Qingshan Power Plant Coal Handling System, etc., and has been running well to this day. We have extensive business cooperation with distributors and system integrators under Schneider.

The Ci-RF110/120 series product is an industrial grade S908 RIO fieldbus data optoelectronic converter that supports the S908 RIO protocol, with a communication rate of 1.544Mbps and single/dual optical port network support. IP30 protection level, corrugated aluminum reinforced casing, 35mm guide rail installation, DC (9-30V) wide power supply, with relay alarm output, dual power redundancy, and isolation protection functions. Ci-RF110 supports one fiber optic interface, one bus data interface, Ci-RF120 supports two cascaded up and down fiber optic interfaces, and one bus data interface.




Bus data interface

*F-female coaxial interface form

*Supports Modicon S908 RIO fieldbus protocol, communication rate: 1.544Mbps

*Isolation voltage: Instantaneous isolation voltage 5000V, continuous isolation voltage 1000V

*Terminal resistance: There is no terminal resistance inside this device. Please decide whether to connect it externally as needed

Fiber optic interface

*Fiber wavelength: multimode 850nm, 1310nm; Single mode 1310nm, 1550nm

*Transmission fiber: multimode 50/125um, 62.5/125um, 100/140um, single mode 8.3/125um, 9/125um, 10/125um

*Transmission distance: multimode 2km, single mode 20km, longer distance optional

*Fiber optic interface type: ST, SC, FC optional, standard ST optical interface

Power supply and protection
