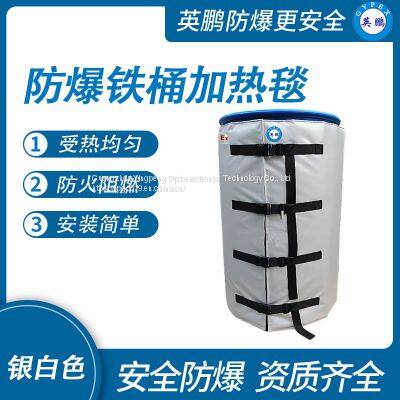

Guangzhou Yingpeng explosion-proof iron bucket heating blanket - silver white

Brand: Yingpeng

Model: 200L

Color: black, silver white

Black: not resistant to acid, alkali, or corrosion

Silver white: acid and alkali resistant, corrosion resistant

Barrel heating sleeve size: 2050 * 900mm (L * H)

Barrel heating sleeve material: high-density high-temperature resistant cloth

Rated voltage: 220V/110v

Working power: 1200w

Style: Explosion proof version

Temperature adjustment range of the thermometer: 0-60 ℃, 0-150 ℃

Inner fabric: single liquid silicone tape

Outer fabric: single liquid silicone tape insulation material: needle felt

Heating rate: subject to actual medium

instructions:

1. By heating, the liquid and solidified substances in the barrel can be easily removed, such as adhesives, grease, asphalt, paint, paraffin, oil, and various resin raw materials. By heating the barrel, the viscosity decreases uniformly, reducing the power of the pump. Therefore, this device is not affected by seasons and can be used year-round.

2. Install sensors on the surface of the heater to directly control the temperature through temperature regulation.

Construction:

The heating element is composed of copper nickel alloy wires surrounding a small diameter glass fiber core, placed between two glass fiber fabrics, and equipped with a temperature regulator, which can gradually adjust from 30 ℃ to 150 ℃.

Installation method: The side of the iron bucket is fully enclosed, and it is fixed with Velcro or fixing strap

matters needing attention:

1. The heater should be effectively grounded to ensure personal safety.

2. Choose a suitable power supply based on the power of the heater.

3. The heater should pay attention to the influence of moisture and other harmful corrosive gases, and not collide with other objects.

The bottom of the heated oil drum should be in contact with the chassis heater.

Main applications: Heating or melting various chemical media, such as chemicals, chemical raw materials, coatings, paints, and fats
