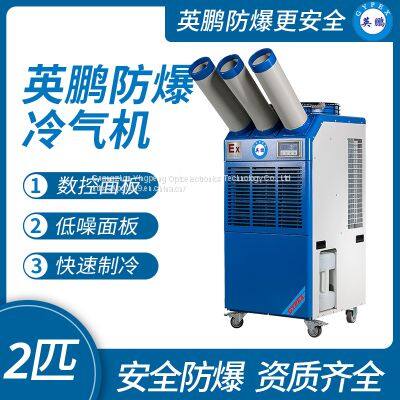

Guangzhou Yingpeng explosion-proof air conditioner - three tube

Brand: Yingpeng (three tube single-phase)

Model: YPHB-16 (Y)

Power supply: 220V/50HZ

Power: 2.4KW

Refrigeration capacity: 6500W

Cold air volume: 910m 3/ h

Current: 10.8A

Water tank capacity: 14 liters

External dimensions: 560 * 630 * 1260mm

Weight: 100kg

Explosion proof grade: ExdibmbIICT4Gb

1、 Characteristics

1. Environmentally friendly refrigerant

2. Plug and Play, no installation required

3. Dual isolation design for cold and hot chamber airflow

4. Easy to move, universal wheel design

5. Wide application range

6. The mobile air conditioner is plug and play, easy and fast to install, maintain, and move as you want, which reflects the characteristics of energy conservation, humanity, beauty, and environmental protection, and provides a reasonable solution for ventilation and cooling of electrical cabinets, textile plants, shoemaking, plastic workshops, mechanical equipment, warehouses, power plants, waiting room and other environments.

2、 Principle of Mobile Air Conditioner

After the air conditioner is powered on, the low-pressure steam of the refrigerant in the refrigeration system is sucked in by the compressor and compressed into high-pressure steam, which is then discharged to the condenser. At the same time, the outdoor air sucked in by the axial fan flows through the condenser, taking away the heat released by the refrigerant, causing the high-pressure refrigerant vapor to condense into a high-pressure liquid. High pressure liquid is sprayed into the evaporator after passing through the filter and throttling mechanism, and evaporates at the corresponding low pressure to absorb surrounding heat. At the same time, the cross flow fan continuously enters the fins of the evaporator for heat exchange, and sends the cooled air that has been released into the room.

3、 Applicable scope

a. The altitude does not exceed 2000m;

b. Applicable environment: temperature between 5 ℃ and 38 ℃, without corrosive gases;

c. There are explosive hazardous areas with Class IIA and IIB, T1 to T4 combustible gases, vapors, and air mixed together.

4、 The explosion-proof label of the entire series of explosion-proof air conditioners is Exdibmb II BT4.

The execution standards for this series of products are as follows:

GB3836.1-2010 Explosive Atmospheres - Part 1: General Requirements for Equipment

GB3836.2-2010 Explosive Atmospheres - Part 2: Equipment Protected by Flameproof Enclosures "d"

GB3836.4-2010 Explosive Atmospheres - Part 4: Equipment Protected by Intrinsically Safe "i"

GB3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "

GB3836.15-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 15: Electrical Installation in Hazardous Areas (excluding Coal Mines)"
