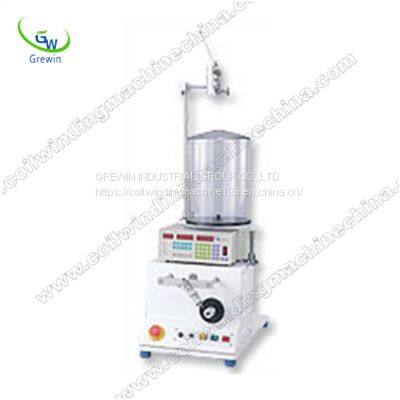

GW-9761 High Speed Parallel Winding Machine

SPECIFICATION:

FEATURES:

High Speed Parallel Winding Machine has microprocessor design ,easy for program-setting handing.

Wire guiding traverse shaft stepper motor with a constant-current driver offering fast wire guiding speed.

input the ‘Start Point’parameter by number key or teachable function ,and display the position of spreading head on the panel.

The wire of the High Speed Parallel Winding Machine runs though the nozzle of spreading head to arrange in order better.

The ceramic rollers for High Speed Parallel Winding Machine prevent enamel from high temperature.

ADVANTAGES:

The wireline shaft is driven by a stepping motor with a constant current circuit, with fast wireline speed and high precision.

The position of the winding point can be inputted by teaching, and the current position of the spool can be displayed.

High Speed Parallel Winding Machine adopts multi - wire rows, four different diameters can be installed at the same time.

Single machine can finish winding and insulation, acetic acid tape winding.

It can be replaced to make double axis synchronous winding machine.

APPLICATION:

Typical applications for high torsion parallel spindle winding Machine with a single wire size, include the manufacture of gas ignition coils, solenoids, relays, motors and many forms of sensor coil in small and medium batch quantities.It is ideal for use in the production of small inductors, particularly bobbins wound with a single wire size and high turns count. The high maximum winding spindle speed (up to 6000 rpm) enables coils with a high turns count to be wound in a short cycle time.
