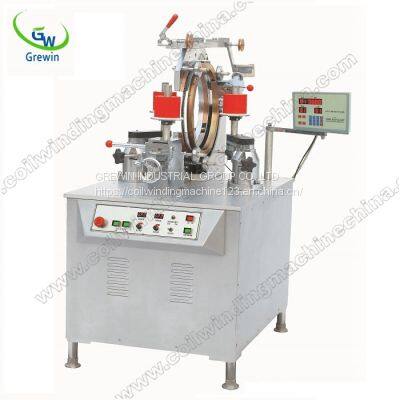

GWM-0619 Automatic Gear Toroidal Winding Machine

SPECIFICATION :

FEATURES：

GWM-0619 Automatic Gear Toroidal Winding Machine are advanced,strongly built workhorses capable of winding light as well as heavy wire without insulation damage.

The open gap gear rack and hinged gap magazine facilitate core change ,maximzing output.

Toroidal Transformer Core Winding Machine ,Easily exchangeable magazines secure maximum flexbility.

Extremely powerful,maintenance free AC motors for main drive and core rotation.

Automatic Gear Toroidal Winding Machine adopts the gear type winding heads,one winding head and interchangeable roller table with different size shuttle (magazine) for different dimensions coils and different wires and tapes,turns,so that to reduce the cost.

ADVANTAGES:

Wide range of application, Large range of Speed adjustment, wide range of the wire diameter, Multi-style of core, Brake tension adjustable, Good settlement for large outer diameter, small inner diameter, heavy wire coils.

High production efficiency, increase winding efficiency by adjustment of suitable brake tension,

Automatic Gear Toroidal Winding Machines’ each wiring part guarantee no wire damage.

The technicians are experienced

Parts highly optimized and universal for general use, Easy maintenance

APPLICATION:

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.

PRACTICAL APPLICATION :

TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain the product.
Provide free consultation about production process technology of electronic products.
3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.

PACKAGING:

Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Toroidal Transformer Winding Machine , Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.

Below is the name of all listed accessories for the machine and construction diagram.

(Note:Different machines have different equiped parts)
