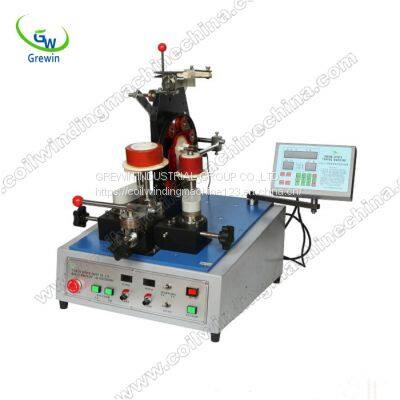

GWSM-H1819 Smaller Toroid Coil Winding Machine

SPECIFICATION:

FEATURES:

Smaller Toroid Coil Winding Machine  high quality,easy to operate.

Lock gap shuttles,with polished sliders,gentle on wire insulation.

Electronic linear pick-up for loading (feet or meters).

Shuttles for Smaller Toroid Coil Winding Machine can be exchanged in minutes for maximum flexibility.

Smaller Toroid Coil Winding Machine can separate speed controls for loading and winding.

Programmable stepper motor driven core rotation in either direction with minimum backlash.

ADVANTAGES:

Complete range of articles, large range of wire diameter, Multipurpose

Good compatibility, parts are interchangeable

High stability, part quality guarantee

High production efficiency, no wire breaking at high speed winding

Smaller Toroid Coil Winding Machine is easy to operate, High learnability

A short period of delivery：10 days after receipt of payment

Communicate parameters in a timely and thoughtful manner

Easy maintenance of equipment

APPLICATION:

Toroid Winding Machine is the best suited to toroidal inductor, toroidal transformers,toroidal current transformers,toroidal coil, toroid choke coil, power inductors,UPS inductor,converter inductor and heavy toroidal core etc.

PRACTICAL APPLICATION :

TRAINNING CUSTOMER TO OPERATE WINDING MACHNE :
1.All service engineers with 10 years experience are gotten special technology training, who can deal with various breakdown problem.
2.Guide the user to use accurately and how to maintain the Smaller Toroid Coil Winding Machine.
Provide free consultation about production process technology of electronic products.
3.In order to guarantee the machine used normally, we'd have training on how to operate, use and maintain our product by English manual, video, guiding on line.

PACKAGING:

Packaging Material: Carton/Wooden case with foam inside.
1.General package(Paper carton or plastic bag): For small euipped parts for Toroidal Transformer Winding Machine , Package it with form and pack paper to guarantee unbroken during the transport.
2.Wooden case package: For larger scale Toroidal Winding machine ,we have special skilled carpenter, who would make the proper wooden case with exact thickness,density,length. The up arrow ↑marked on the outer wooden case. Buffer material would be put in the wooden case to prevent crack and shock.

Below is the name of all listed accessories for the machine and construction diagram.

(Note:Different machines have different equiped parts)
