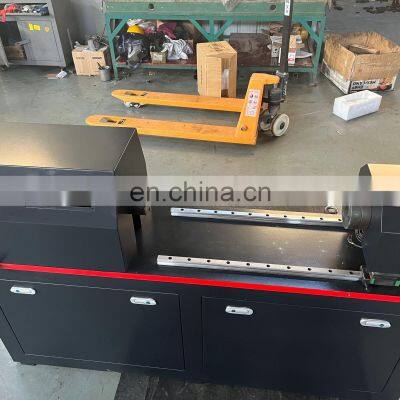

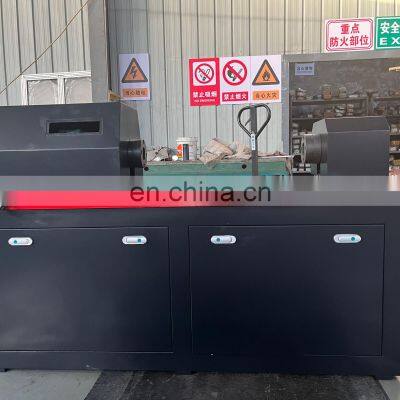

NDW-3000 M12~M20 3000nm Bolt Torsion Testing Machine

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Description

1. Application:

This series materials torsion testing machine is used for torsion test of metal materials, nonmetallic materials, composite materials and components

2. Standard:

GB/T 10128-1998 “Meta torsion test methods under room temperature”
GB/T 10128-2007 “Meta torsion test methods under room temperature”

3. Technical parameter:

Model	NDW- 100	NDW- 200	NDW- 500	NDW- 1000	NDW- 2000	NDW- 5000
Max torque(N/m)	100	200	500	1000	2000	5000
Test class	1 class
Control method	Constant torque, constant angle, constant twist angle closed-loop control modeclosed-loop control mode
Torque test range(F·S)	2%~100%F·S
Torque value accuracy	≤±1
Torque display resolution	1/5000
Angle value accuracy (%)	≤±1
Angle display resolution(°)	0.01
Max torque angle	99999°
Torque angular rate control rang(°/min)	0.05-800
Effective distance between chucks (mm)	600
Test rotating direction	Two ways
Power	220V±10%,50Hz
