Product Description

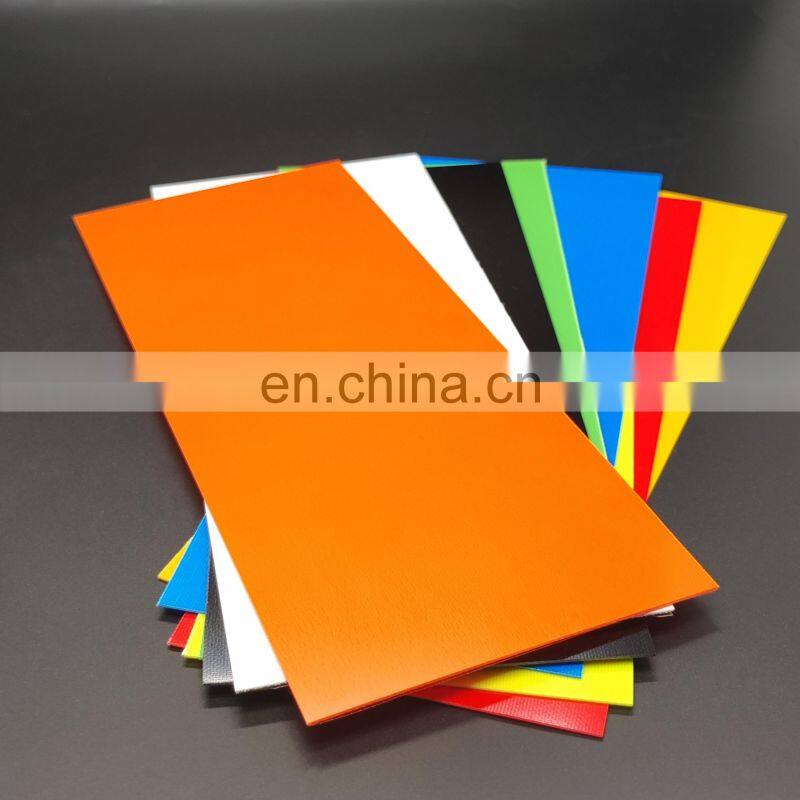

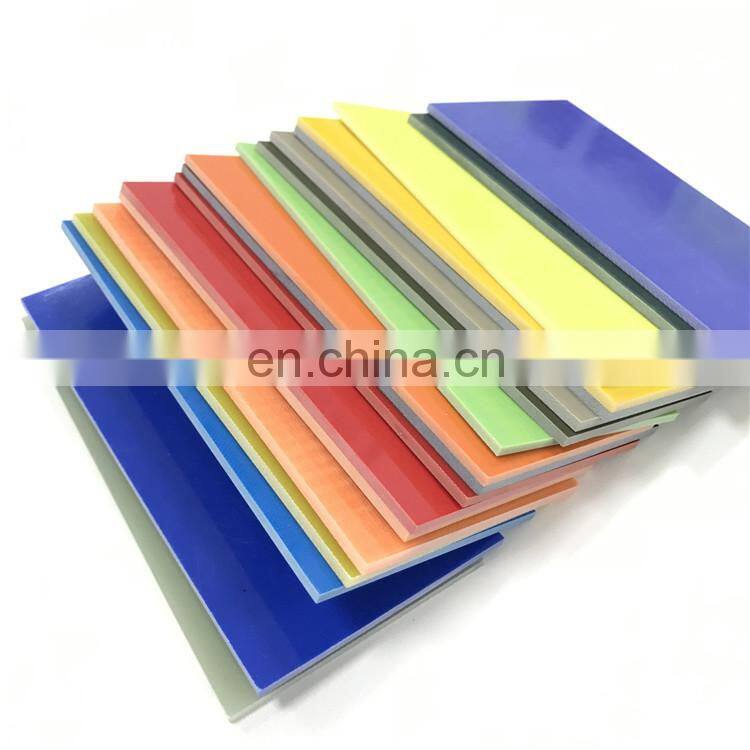

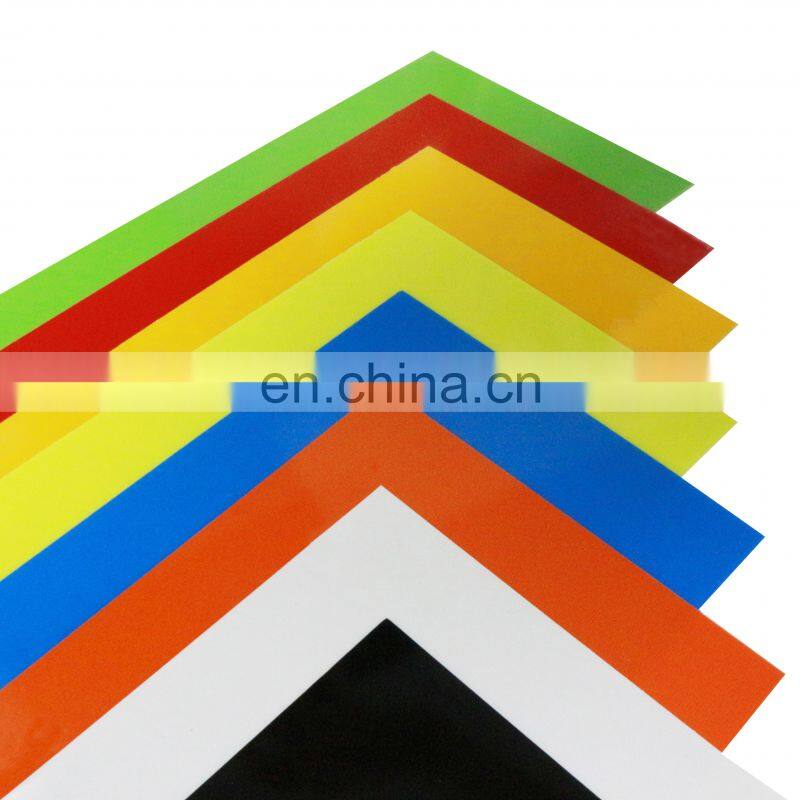

Knife Handles Material Colored G10 Laminate Fiberglass Sheet

G10 Laminate Fiberglass Sheet is a board-shaped insulating material made of glass fiber cloth impregnated with epoxy resin as an
adhesive, dried and hot-pressed. It has high mechanical properties, water absorption, flame retardancy and heat resistance, and
the dielectric properties are stable after immersion in water. Suitable for products with high performance electronic insulation
requirements, such as fpc reinforcing plate, pcb drilling pad, glass fiber meson, potentiometer carbon film printed glass fiber
board, precision planetary gear (wafer grinding), precision test plate, electrical ( Electrical appliances) equipment insulation
stay partitions, insulation pads, solar panels, transformer insulation boards, motor insulation parts, grinding gears, electronic
switch insulation boards, etc.

NO.	PROPERTIES	UNIT	Standard value
1	Flexural strength perpendicular to laminations A: Under normal conditions E-1/150: Under 150±5℃	MPa	≥ 340
2	Notch Impact strength parallel to lamination (charpy)	kJ/m2	≥ 33
3	Dielectric strength perpendicular to lamination (in oil 90±2℃) 2.0mm in thickness	MV/m	≥ 14.2
4	Breakdown voltage parallel to lamination (in oil 90±2℃)	kV	≥ 35
5	Dielectric coefficient (1MHz)	-	≤ 5.5
6	Loss factor (1MHz)	-	≤ 0.04
7	Water absorptionD24/23, 1mm in thickness	mg	≤ 19
8	Insulation resistance impregnated in water, D-24/23	Ω	≥ 5.0×108
9	Density	g/cm3	1.90-2.1

Product Usage

Related Products

Company Introduction

Shenzhen Xiongyihua Plastic Insulation Limited was established in 2006 in Shenzhen, after more than decades of continuous efforts, has developed into a professional integrated manufacturer of specializes in production and development Engineering Plastic and Insulation Plastic ,is the most complete varieties. We have automatic dipping production lines, CNC carving machine and laser engraving machine, along with several saws, milling, planing,grinding, drilling, tapping, punching, cutting and other machining
large production equipment.

Our main products :
1.Insulation Plastic Series : 3240/FR-4/G10 Epoxy Fiberglass ,Bakelite,3025 Phenolic Cotton Cloth Laminated,3021 Phenolic Paper Laminated,High Voltage Insulation Plastic.
2.Engineering Plastic Series: PA6/MC Nylon ,POM, PTFE,PVC,PE,PU,Acrylic,ABS and so on.

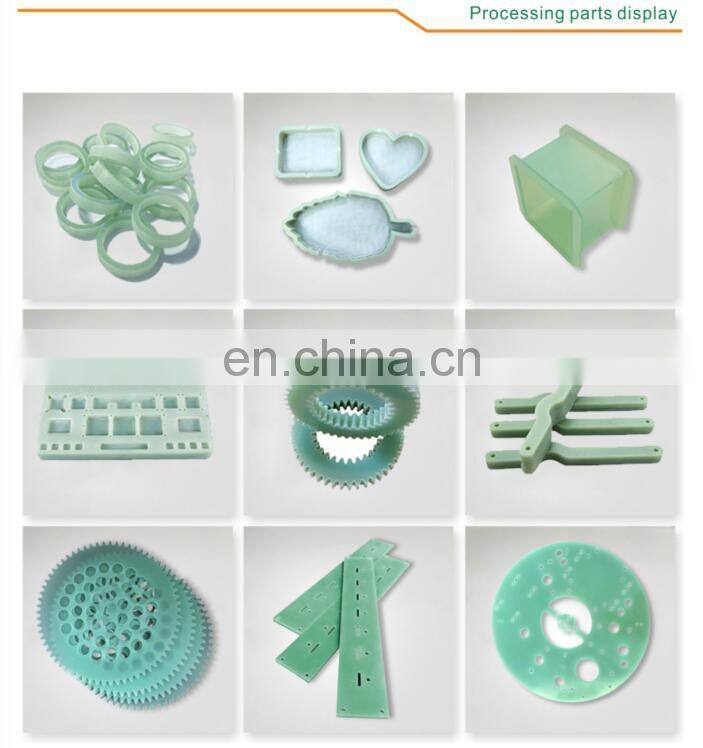

3. Insulation Machining Parts Series : Customized according to the customers' drawings and designs,welcome to contact us for more details.

Our Services & Strength

Our well-equipment facilites and excellent quality control throughout all stages of production enables us to guarantee total
customer satisfaction.
As a result of our products and outstanding customer service, we have gained a global sales network reaching India, Vietnam,Thailand, Indonesia, Philippines, Malaysia, Turkey, Pakistan, Dubai, and some other countries from European, like Brirain, France and German. And America, Australia, etc,enjoying great reputation in plastic industry.
