G10 FR4 Electrical part insulation material plastic sheet

FOB Price

Negotiable

1 (Min.Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

G10 FR4 Electrical insulation material

Basic information

o.	Item	Units	Value
o.	Item	Units	G-10	FR-4	G-11	FR-5
1	Applicable Standards	—	NEMA L1
2	Density	g/cm³	1.80~1.90	1.80~1.90	1.80~1.90	1.80~1.90
3	Bending strength perpendicular to laminations	MPa	340	340	340	340
4	Impact strength parallel to laminations( Charpy)	kJ/m²	33	33	33	33
5	Insulation resistance after impregnated in water	Ω	5×10¹⁰	5×10¹⁰	5×10¹⁰	5×10¹⁰
6	Relative permittivity 48~62Hz	—
7	Voltage endurance parallel to lamination (in oil 90±2°C)	kV	35	35	35	35
8	Voltage endurance perpendicular to lamination (in oil 90±2°C) Thickness 0.5mm Thickness 1mm Thickness 2mm Thickness 3mm	kV/mm	16.1 14.2 11.8 10.2	16.1 14.2 11.8 10.2	16.1 14.2 11.8 10.2	16.1 14.2 11.8 10.2
9	Water absorption Thickness 0.5mm Thickness 1.0mm Thickness 2.0mm Thickness 5.0mm Thickness 10.0mm	mg	17 18 20 25 34	17 18 20 25 34	17 18 20 25 34	17 18 20 25 34
10	Flame resistance	—	—	V0	—	V0
11	Temperature index	°C	155	155	155	155

Specification

1. Size: 1020x1220mm
2. Thickness: 0.5mm-100mm
3. Color:light green

Epoxy glass cloth laminated sheets(industry laminate sheet,Epoxy sheet) are made of alkali-free E-glass cloth impregnated with epoxy resins and phenolic resins by processing under heat and pressure. Epoxy glass cloth sheet can be processed into all kinds of insulation parts, The products are widely used transformers, electric motors, cabinets, control boxes, electric switches, household appliances, railway, automobile, computer and medical appliance,etc.

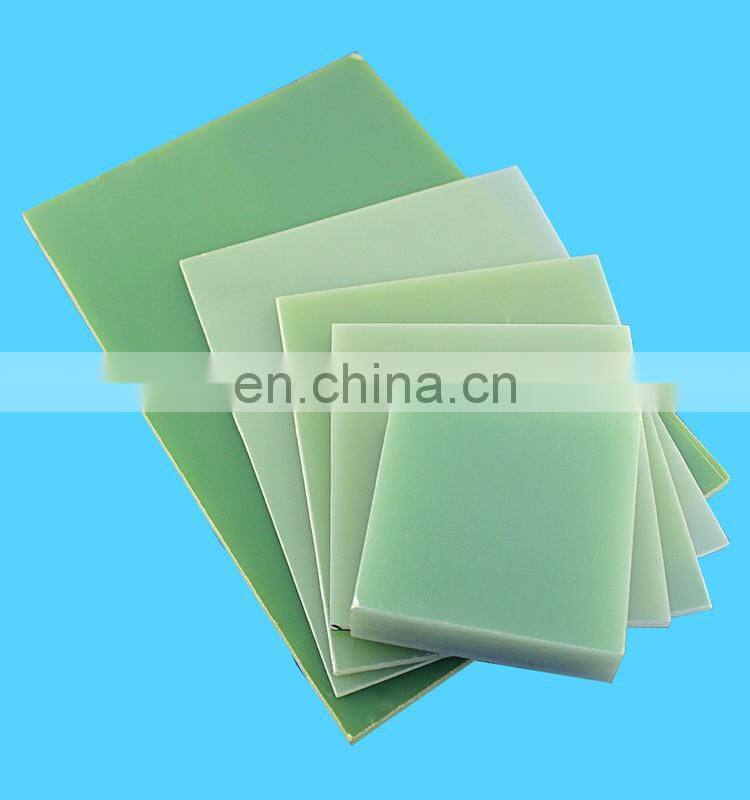

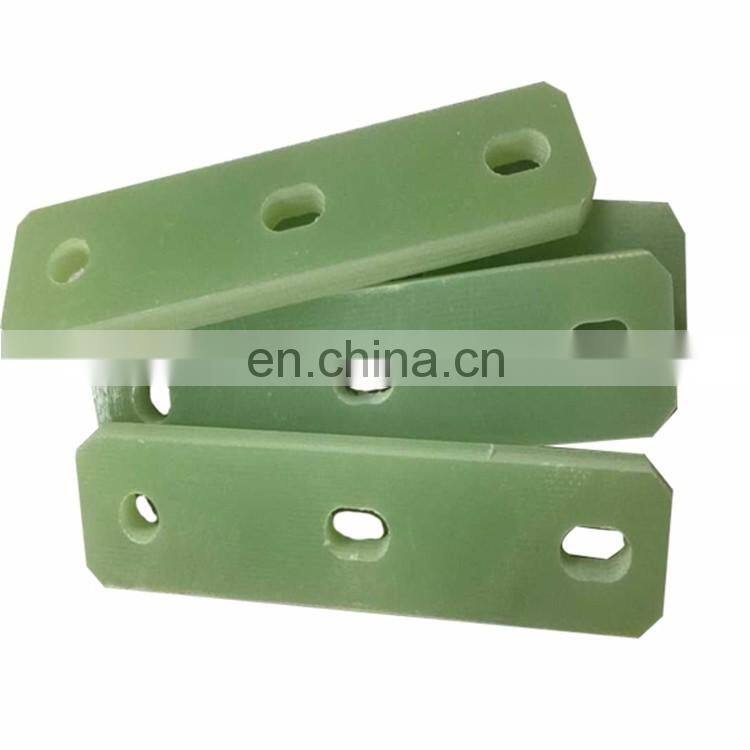

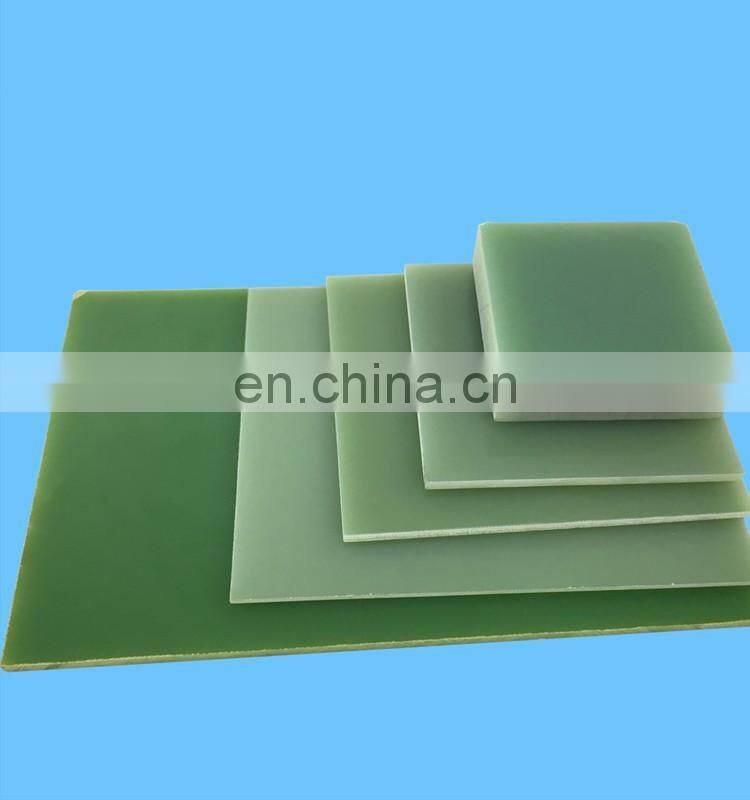

Product show:

Company Information

Shenzhen Xiongyihua Plastic Insulation Limited was established in 2006 in Shenzhen, after more than decades of continuous efforts , has developed into a professional integrated manufacturer of specializes in production and development Engineering Plastic and Insulation Plastic ,is the most complete varieties. We have automatic dipping production lines, CNC carving machine and laser engraving machine, along with several saws, milling, planing,grinding, drilling, tapping, punching, cutting and other machining large production equipment.

Our main products :
1.Insulation Plastic Series : 3240/FR-4/G10 Epoxy Fiberglass ,Bakelite,3025 Phenolic Cotton Cloth Laminated,3021 Phenolic Paper Laminated,High Voltage Insulation Plastic.

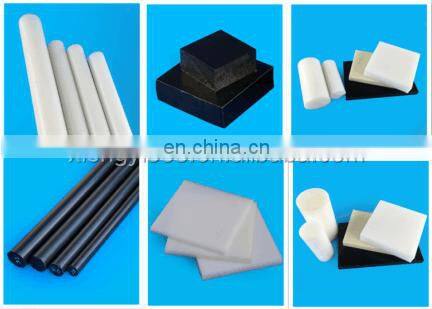

2.Engineering Plastic Series: PA6/MC Nylon ,POM, PTFE,PVC,PE,PU,Acrylic,ABS and so on.

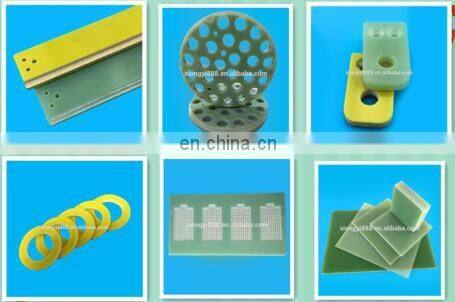

3. Insulation Machining Parts Series : Customized according to the customers’ drawings and designs,welcome to contact us for more details.

Our well-equipment facilites and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
As a result of our products and outstanding customer service, we have gained a global sales network reaching India, Vietnam, Thailand, Indonesia, Philippines, Malaysia, Turkey, Pakistan, Dubai, and some other countries from European, like Brirain, France and German. And America, Australia, etc,enjoying great reputation in plastic industry.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

Certifications

Packaging

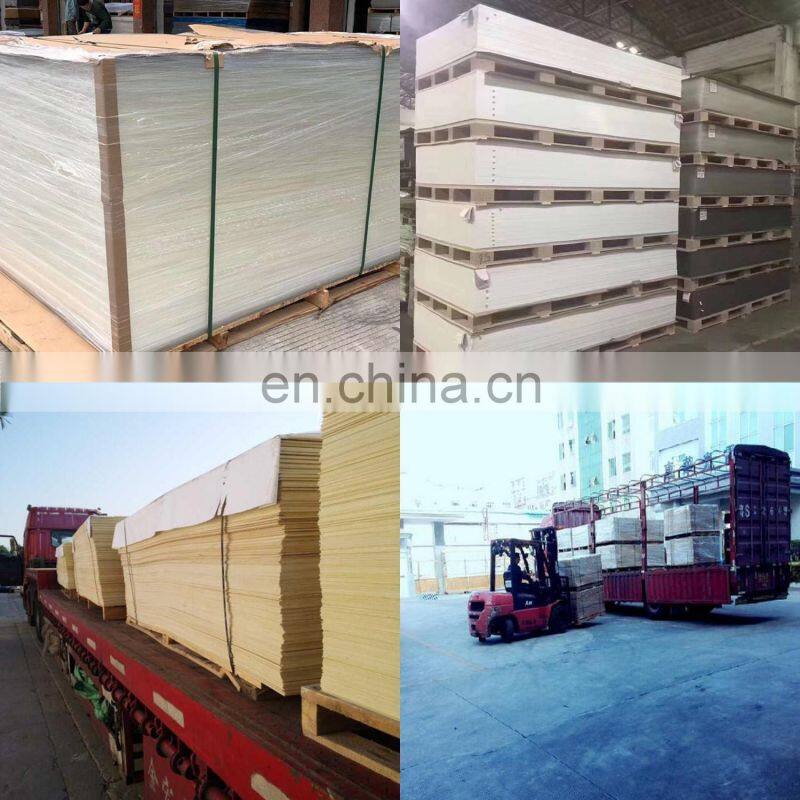

Packaging:

1.one pc acrylic sheetpacking: covered with craft paper or PE film on double sides ,the covered film without any our compoany sign.
2.with pallet Bulk cargo packing: 2 tons per pallet, use wooden pallets and iron pallets on bottom, with packaging film packages all around ensure transportation security.
3.Full container load packing: 20-23 tons(about 3000pcs) of a 20 foot container with 10 -12pallets .
