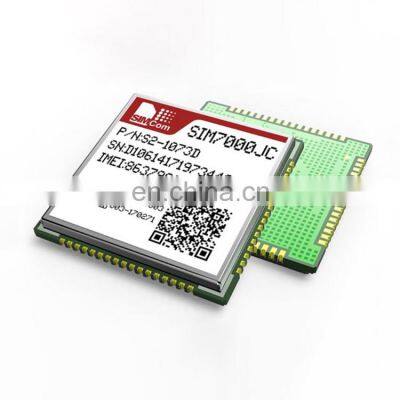

SIMCOM SIM7000JC IoT Module LPWA NB-IoT Modules

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Description

• SIMCOM SIM7000JC is an LPWA module equipped with Qualcomm cores and compatible with LTE Cat.M1/NB-IoT that realizes LTE communication with low cost and low power consumption.

• The SIM7000JC module will provide excellent cost performance in M2M/IoT equipment field. As one of SIMCom’s multi-mode modules for the Japanese market, SIM7000JC is LCC packaged to support LTE-FDD B1/B3/B5/B8/B18/B19/B26 frequency bands.

• It has a size of 24.0*24.0*2.6mm, weighs 3.0g, and supports LTE CAT-M1(eMTC)’s uplink and downlink transmission rates (375kbps and 300kbps), NB-IoT’s uplink and downlink transmission rates (66kbps and 34kbps), and GNSS (GPS, GLONASS, BDS).

• SIMCOM SIM7000JC package and AT command are compatible with SIM800F and SIM900 to support the smooth upgrade of customer terminal product design from 2G to NB-IoT/CAT-M1, which minimizes customer investment, shortens the development cycle of customer products
and speeds up the product launching process.

• SIMCOM SIM7000JC integrates high performance, security and flexibility, and is designed for M2M applications that require low latency and medium data throughputs, such as metering, vehicle mounting, asset tracking, remote monitoring, healthcare, mobile POS terminal, and the sharing economy.

SIM7000JC module specifications:
* LTE Cat-M1/NB-IoT
* Support 4G LTE Band: B1(2100MHz)/B3(1800MHz)/B8(900MHz)/B26(800 MHz)/ B18/19
* LTE Cat-M1 data rate: DL 300Kbps/UL UL 375Kbps
* LTE NB-IoT date rate: DL 34Kbps/UL 66Kbps
* Support GPS/Glonass/Beidou
* Control via AT Command
* InterfaceS: UART x 2 / PCM / USB / ADC / I 2 C / GPIO / DEBUG
* Support drivers: Windows 2000 / XP / Vista / 7/8/10 / CE / Mobile / Linux / Android / MAC
* Other functions: FTP, FTPS, HTTP, HTTPS, TCP / IP, IPv4, IPv6, MQTT
* Operating temperature: -30 to 80 °C
* Storage environment temperature: -40 to 85 °C
* Humidity: 5% to 80% (without condensation)
* Rated voltage (operating voltage): DC 3.8 V (DC 3.0 to 4.3 V)
* Weight: Approximately 3g
* Dimensions: 24 (H) x 24 (W) x 2.6 (D) mm
* Support network providers: NTT DoCoMo / KDDI (au) / Softbank (planned)
