Automatic High-speed Dual-purpose Velvet Coating Machine SGUV-800A

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

SGUV-800A Automatic high-speed dual-purpose UV coating machine

The SGUV series is a practical fully automatic coating machine developed by our company, which is suitable for posters, books, brochures, color boxes, color box packaging, handbags, etc.

FEATURES AT A GLANCE

•Faster speed 80m/min •UV curing & IR drying

•3 uv lamps &18 IR lamps •Use uv oil ,water oil, soft touch oil..

•Larger rubber roller 165mm diameter •Deal with thin paper to 80gsm •Customized

PRODUCT SPECIFICATIONS

No	Item	SGUV-800A
1	Max. Sheet Size	760*1000mm
2	Min. Sheet Size	270*270mm
3	Sheet Weight	80~450g/m2
4	Speed	0~80m/min
5	Power	45Kw
6	UV Lamp	2pcsx8Kw
7	IR Lamp	18pcsx15Kw
8	Paper feed height	1100
9	Paper stack height	1050
10	Weight	6000kg
11	Dimension	10000x1800x2000mm

PRODUCT CONFIGURATION

•Paper pre-stacker，to realize non-stop paper feeding and receiving •High degree of intelligence, one-button start and acceleration, more convenient and efficient than traditional segmented control. •The shaft head is 55mm large, which is more stable and firmer than the traditional 35mm under high speed, without deformation, and good coating effect! •Synchronous belt transmission, the equipment is more stable, no jitter. The surface texture effect will be better in high-end products. •The oil guard has high precision, and it is more difficult for water to enter the bearing than the traditional one. •The air knife is easy to operate! High-precision correction, tight on both sides, no slight soft deformation and damage to the mesh belt.

Auto Feeding System

1：Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation 2：Paper photoelectric control, automatic lifting 3：Double protection feeder lifting safety 4：Using the latest paper stacker design, the entire tray can be pushed in, and the tray can be pushed in directly after printing, without manual paper sorting. Pre-stacker can also be used. two-way choice. Greatly save paper time and reduce the labor intensity of operators.

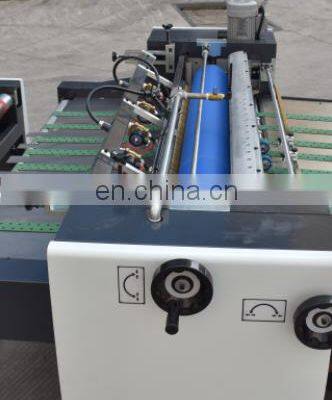

Coating section

1: Using cast iron body, strong rigidity and long life 2：Three-roll reverse coating

3：Equipped with an air knife, it can make 80G thin paper, the size of the wind, and the time of blowing are controlled by PLC. 4：Automatic stop function for roll paper 5：Automatic counting function 6：The rollers are adjusted synchronously, driven by the synchronous belt to make the coating effect stable and great. 7：Equipped with two oil tanks, UV and IR, and equipped with temperature heating control to ensure that the UV oil is coated between 40-60 degrees 8：The gap between the coating roller and the pressure roller of each machine head is adjustable from 0-50mm. 9：The main rollers adopt 55-diameter shaft heads and heavy-duty bearings, which greatly extend the life of the bearings. 10：The diaphragm pump is used for oil supply, no motor is needed, and the operation is safer. 11：Double scrapers and a unique bottom roller automatic cleaning system, double oil pan device, the lower roller is immersed in the small oil pan when working, which can effectively clean the lower roller and prevent the oil from drying during shutdown

IR Drying and UV Curing System

1：The better the leveling of the oven, the stronger the drying and curing. 2：Equipped with UV and IR systems, which are controlled separately and cannot be used at the same time. 3：27 IR lamps and 3 UV lamps, IR lamps generally have a life of 2 years, UV lamps have a life of 800~1000H, and transformers have a life of more than one year . 4：The UV part adopts 8-12KW adjustable electronic light source, which has greatly improved safety performance than the traditional voltage source light source.The light source can adjust the brightness automatically as the change of machine's running speed, which can be changed from 30% to 100%. Thus the average energy consumption is saved by more than 30%. 5：Emergency stop or overheat protection device, when the emergency stop or the temperature inside exceeds 150 degrees, the protective cover will automatically rise to dissipate heat to prevent fire 6：Equipped with a ventilation system, under the UV curing box, there is a strong suction device composed of an exhaust fan and a wind box, which can extract ozone, dissipate heat and make the paper not easy to curl in the furnace, but can pass smoothly. 7: Equipped with automatic correction system, (double correction, double over-limit protection). The paper conveying adopts the imported Teflon conveyor belt, which can prevent ultraviolet rays, is strong and durable, does not support the paper, the electric eye detects the Teflon conveyor belt, and the automatic homing correction device 8：The whole process of suction to ensure that the coating products will not float and do not pile up paper. The oven is equipped with iron wire protection to prevent the paper from floating on the paper and cause a fire.

Company Profile

Why Choose Us?

1. With 12 years' Manufacturing Experience
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices

Laminating Machine

Coating Machine

Folder gluer

Flute Laminating Machine

Rigid Box Machine

Paper Tube Machine

Vertical Laminating Machine

Die Cutting Machine

Hot Stamping Machine

FAQ

Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.

Q2: How long for the guarantee?
A2: 12 month free warranty.

Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.

Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.

Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.

Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.

Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.

Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
